Inštalačný kábel Solarix CAT6A FFTP LSOH Dca-s2,d2,a1 500 m / kotúč SXKD-6A-FFTP-LSOH

The installation cable Solarix with the designation SXKD-6A-FFTP-LSOH is a high-quality double-stranded cable of the 6A category, which is intended for the operation of high-speed ethernet protocols, including 10GBASE-T. Construction cable is F/FTP, sheath type LSOH with triedou reactions na fire Dca-s2,d2,a1. The cable is made of high-quality copper wire with 99.97% pure copper. Kábel meets the requirements of international standards ISO/IEC 11801, EN 50173 a ANSI/TIA 568.2-D without any problems. In the case of CPR (nariadenie EÚ ch. 305/2011) the cable is tested in the independent laboratory of FORCE TECHNOLOGY in the system of assessment of properties AVCP 3. Like other cables Solarix, the cable SXKD-6A-FFTP-LSOH is marked in the range of 1 mv from 0 to 500 m. The cable is delivered in a high-strength wooden coil, which contains all the necessary information about the product, including barcodes, production batch, list of the most important technical parameters. CAT6A
Supported protocols: 10GBASE-T a lower

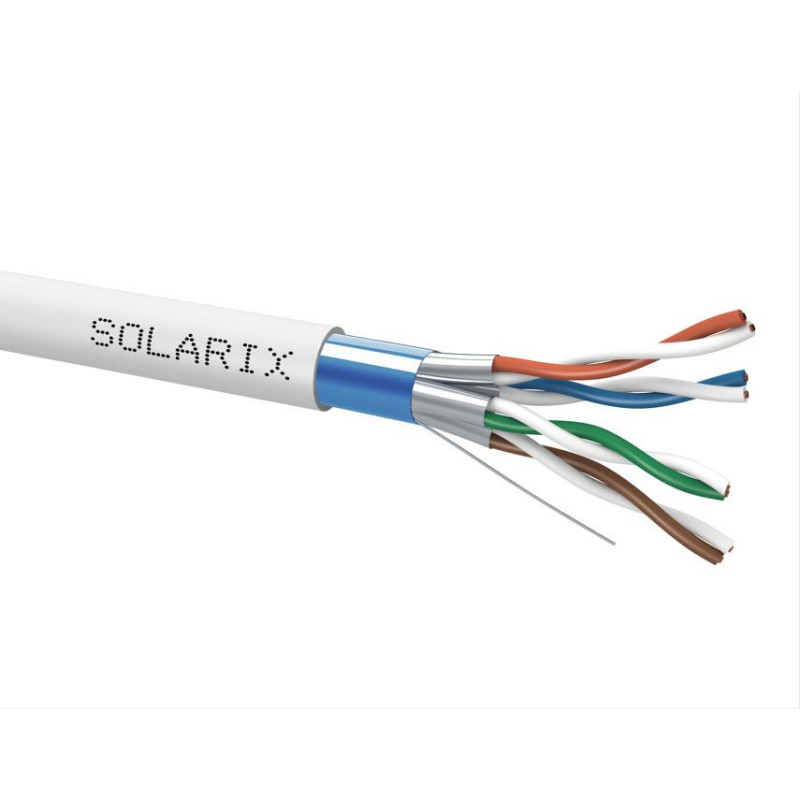

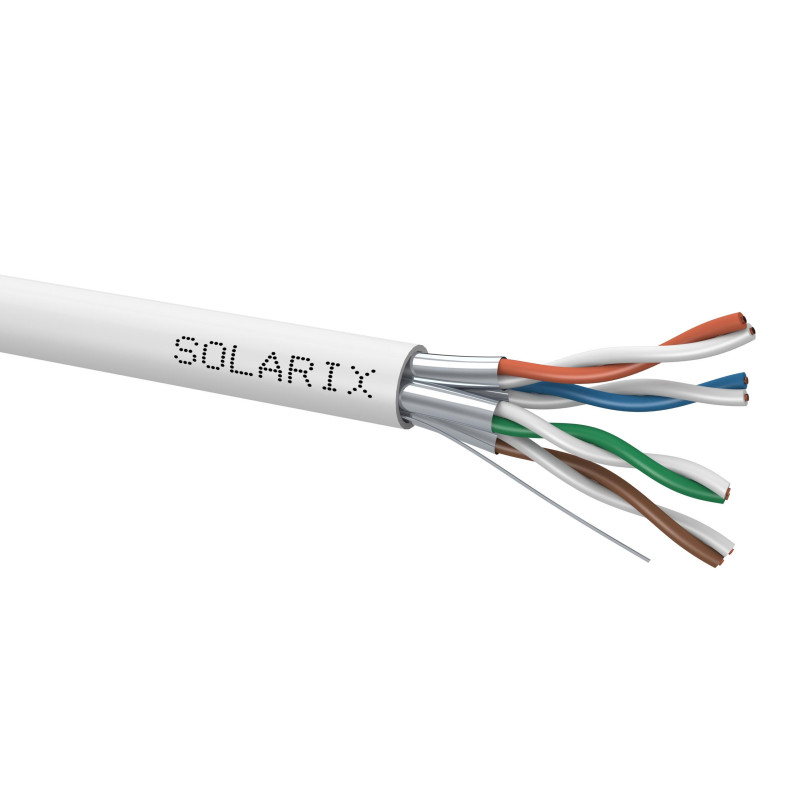

Stínie: foil around all 4 pairs, foil around each pair
Wide band: 500 MHz
Typ a conductor size: copper wire 0.56 mm ± 0.005 mm
Izolácia a príem vodja s isolaziou: 1.33 mm
Trieda reaksiyon na pojez; type of shell: Dca-s2,d2,a1; LSOH
Casing color: gray RAL 7035
Cable diameter: 7.5 mm
Weight: 54.1 kg/km
NVP: 75 %
Propagation delays: 480 ns/100 m
Delays: less than 45 ns/100 m
Storage temperature: -20 °C to 60 °C
Prevádzková temperature: -20 °C to 60 °C °C
Temperature during installation: 0 °C to 50 °C
Packaging: 500 m, wooden reel
Dimensions packaging (diameter x height): 380 mm x 390 mm
Package price na palette: 27 cievok
