Inštalačný kábel Solarix CAT5E UTP PVC Eca 305 m / krabica SXKD-5E-UTP-PVC

The installation cable Solarix with the designation SXKD-5E-UTP-PVC is a reliable unsupported cable of the 5E category, which is intended for the operation of ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. Construction cable is U/UTP, type sheathed PVC with triedou reaktions na fujen Eca. The cable is made of high-quality copper wire with 99.97% pure copper. Kábel meets the requirements of international standards ISO/IEC 11801, EN 50173 a ANSI/TIA 568.2-D without any problems. In the case of CPR (nariadenie EÚ ch. 305/2011) the cable is tested in the independent laboratory FORCE TECHNOLOGY in the system of assessment of properties AVCP 3. Like the other cables Solarix, also the cable SXKD-5E-UTP-PVC is marked with meters of 1 mv in the range from 0 to 305 m. The cable is delivered in a highly durable three-layer laminated cardboard box (every color is different according to the type of cable), which contains all the necessary information about the product, including barcodes, the production batch, a list of the most important technical parameters.
Technical parameters
Kategória: CAT5E
Podporované protokoly: 2.5/5GBASE-T a nijemi
Rods: nie
Band width: 100 MHz
Type of conductor size: copper wire 0.50 mm ± 0.005 mm
Isolation of conductor diameter: HDPE 0.88 mm
Trieda reaction to fire; typ mantle: Eca; PVC
Casing color: gray RAL 7035
Cable diameter: 5.0 mm
Weight: 29.2 kg/km
NVP: 68 %
Propagation delay: 535 ns/100 m
Delay: less than 45 ns/100 m
Storage temperature: -20 °C to 60 °C
Prevádzková temperature: -20 °C to 60 °C °C
Installation temperature: 0 °C to 50 °C

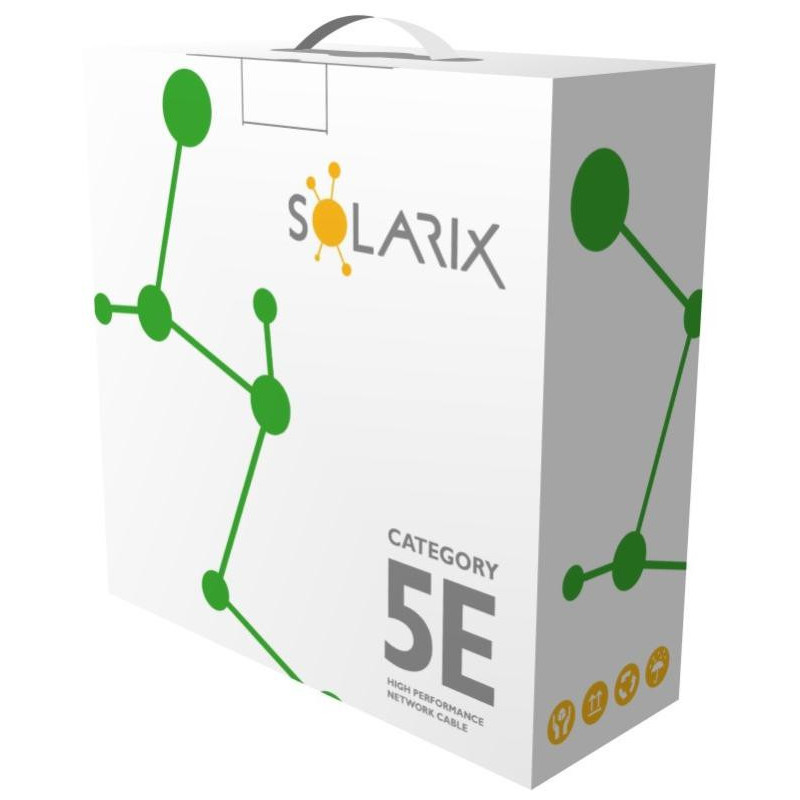

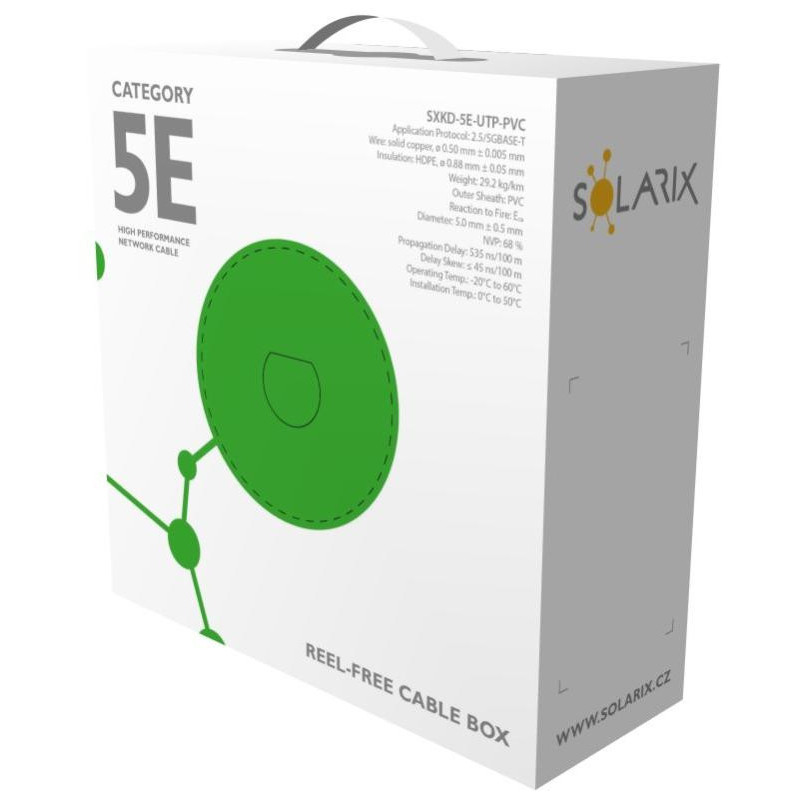

Packaging: 305 m, three-layer cardboard box
Packaging dimensions (height x depth x width): 350 mm x 350 mm x 205 mm
Package in pallet: 45 krabíc
