Inštalačný kábel Solarix CAT5E UTP PE Fca pre vonkajšie použitie, 305 m / krabica SXKD-5E-UTP-PE

The installation cable Solarix with the designation SXKD-5E-UTP-PE is a reliable outdoor cable of category 5E, which is intended for the operation of ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The construction cable is U/UTP, type sheath UV stable PE with fire resistance Fca a stupňom krytia IP67. The cable is made of high-quality copper wire with 99.97% pure copper. Kábel meets the requirements of international standards ISO/IEC 11801, EN 50173 a ANSI/TIA 568.2-D without any problems. As well as other cables Solarix, also cable SXKD-5E-UTP-PE is marked with meters in 1 mv range from 0 to 305 m. The cable is delivered in a highly durable three-layered cardboard box (every color is different according to the type of cable), which contains all the necessary information about the product, including barcodes, the production batch, a list of the most important technical parameters. This cable is not intended for permanent installation in water or in the ground without proper protection.
Technical parameters
Kategória: CAT5E
Podporované protokoly: 2.5/5GBASE-T a nijemi
Odstienenie: nie
Band width: 100 MHz
Type of conductor size: copper wire 0.50 mm ± 0.005 mm
Isolation of conductor diameter: HDPE 0.88 mm
Trieda reaction to fire; typ shell: Fca; PE
Casing color: black RAL 9005
Cable diameter: 5.0 mm
Weight: 27.6 kg/km
NVP: 68 %
Propagation delay: 535 ns/100 m
Delay: less than 45 ns/100 m
Storage temperature: -20 °C to 70 °C
Prevádzková temperature: -20 °C to 70 °C °C
Installation temperature: 0 °C to 50 °C

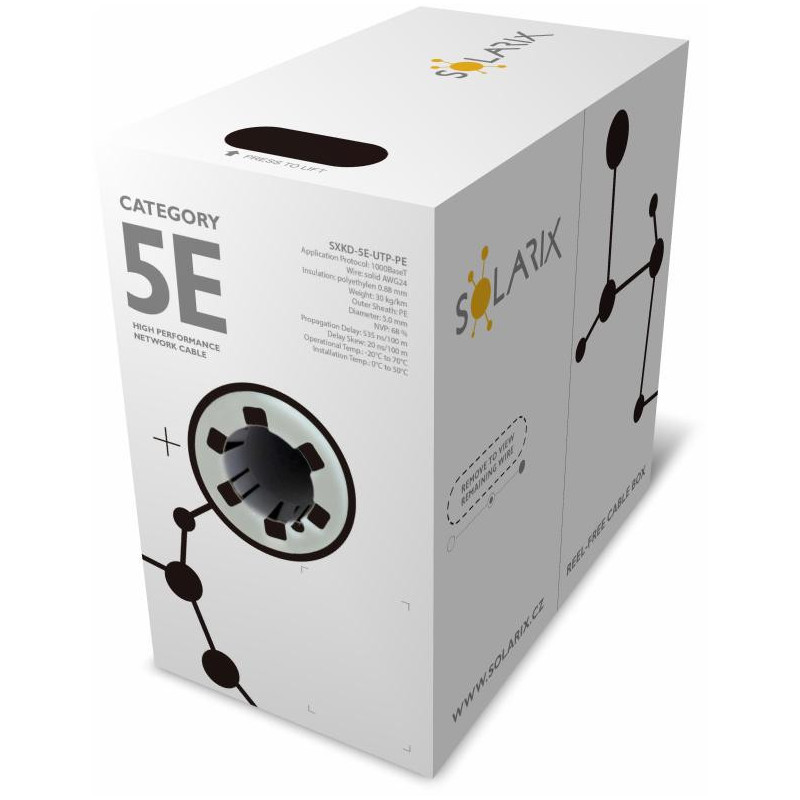

Packaging: 305 m, three-layer cardboard box
Packaging dimensions (height x depth x width): 380 mm x 380 mm x 215 mm
Package in pallet: 45 krabíc
