HDMI splitter 1x10, 3D, 4K

HDMI splitter 1x10, 3D, 4K resolution /30hz, HDMI V1.4b.
Features:

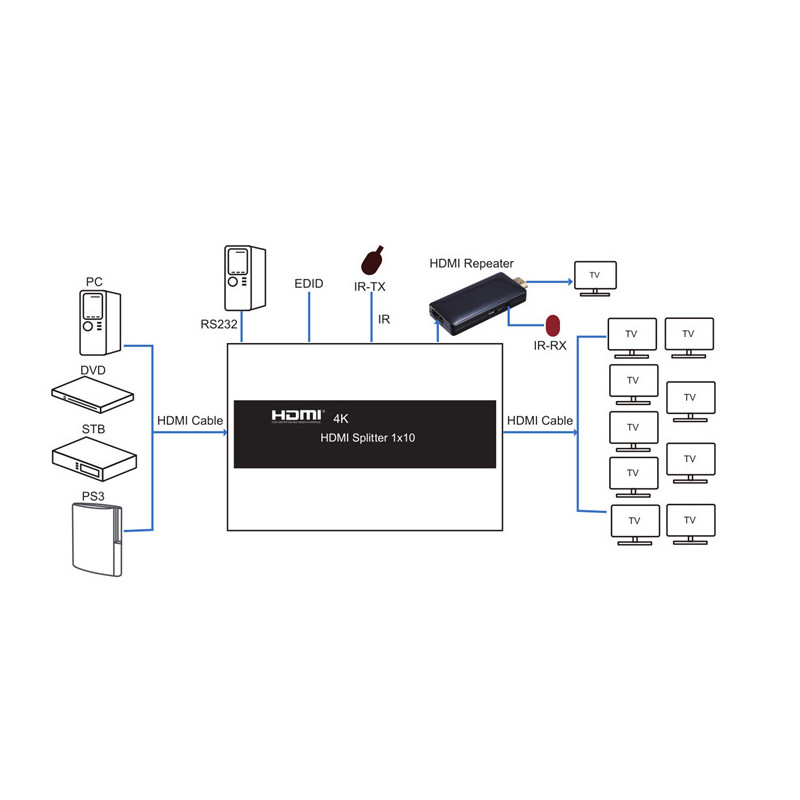

• This 1x10 HDMI splitter uses one HDMI input and 10 HDMI outputs, making it easy to split a single HDMI device (image) into 10 HDMI-compatible monitors or projectors.


• An HDMI splitter can be applied at the end of a long HDMI cable to reproduce the HDMI signal.


• Resolution 4K (3840x2160) / 30Hz.


• Supports HDMI 1.4b version, HDCP1.4.


• Supports 3D image format.


• 1 output for CEC support.


• Supports a maximum frequency of 3.4Gbps, and TMDS can reach 340MHz.


• 8/10/12-bit color support.


• Supports standard AWG26 HDMI cable, input up to 5 meters, output up to 10 meters.


• Supports one HDMI source, distributing to multiple HDMI receivers, the source can be a DVD player, AV receiver, digital TV receiver, etc.


• Integrated IR extension function (to control HDMI sources via IR-RX HDMI repeater).


• Sequential port update via the Internet.


• EDID (Extended Display Identification Data) management support.

Technical data:

• HDMI version: HDMI 1.4b, HDCP1.4.


• HDMI resolution: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768.


• Video format support: 8/10/12 bit color depth.


• Max. bandwidth: 340MHz.


• Max. data transfer speed: 3.4Gbps.


• Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 12V / 2A.


• Operating temperature: -15°C ~ +55°C.


• Operating humidity: 5-90%RH.


• Size: 375x89x22 mm.


• Weight: 780g.
