HDMI Signal Extender - LINDY Cat.6 HDMI 4K30, IR RS-232 HDBaseT Extender with PoC, 70 m, Black
Product reference:
14-4002888381390
Extend HDMI resolution up to 70m with support for 4K30, IR and RS-232 using HDBaseT technology. The device offers 10.2 Gbps bandwidth and Power over Cat.6 (PoC) functionality.
HDMI Signal Extender - LINDY Cat.6 HDMI 4K30, IR RS-232 HDBaseT Extender with PoC, 70 m, Black
Product reference:
14-4002888381390
Extend HDMI resolution up to 70m with support for 4K30, IR and RS-232 using HDBaseT technology. The device offers 10.2 Gbps bandwidth and Power over Cat.6 (PoC) functionality.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days

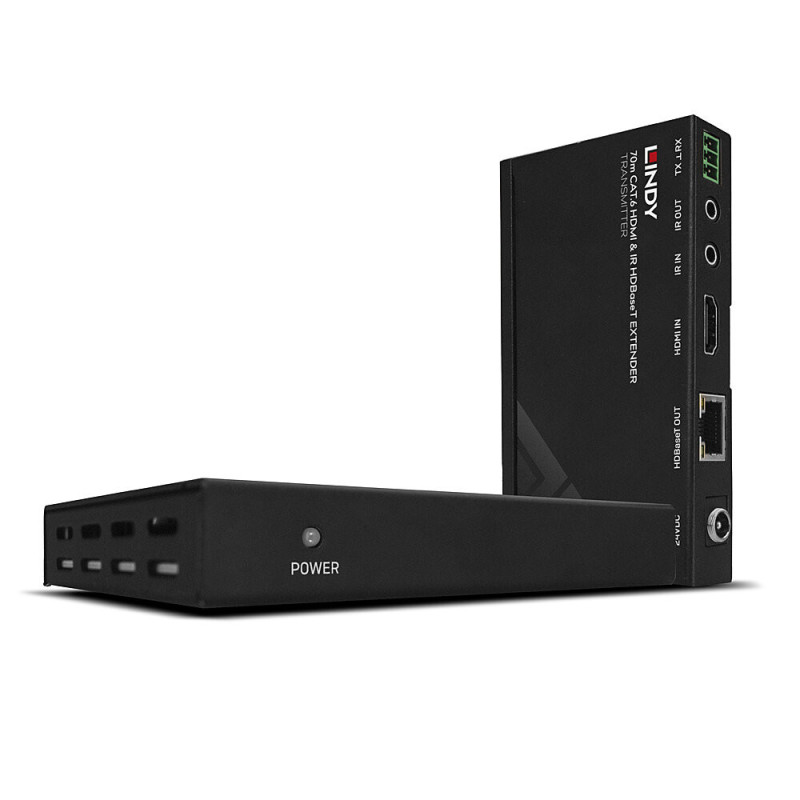

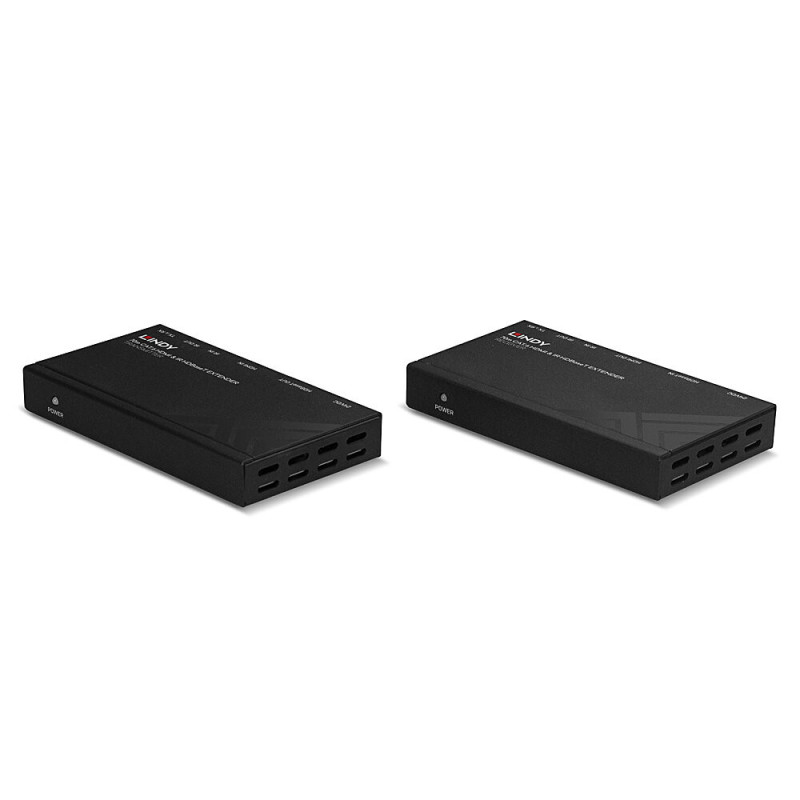

LINDY Cat.6 HDMI 4K30, IR RS-232 HDBaseT Extender with PoC, 70 m, Black
Extend HDMI resolution up to 70m, supporting 4K30, IR and RS-232, using HDBaseT technology. Features: 10.2Gbps bandwidth and Power over Cat.6 (PoC) function.
- Extends HDMI signals up to 70 m (229.66 ft) with 4K resolution 30Hz.
- Supports Power over Cat.6 (PoC) for easier installation.
- IR and RS-232 control included for various integrations.
- Compact metal housing with lightweight design for easy installation.
Features | |
|---|---|
| Product type | AV Signal Extender |
| Model | 70m Cat.6 HDMI 4K30, IR RS-232 HDBaseT extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | 1.4 |
| Maximum resolution | 3840x2160@30Hz 4:4:4 8bit |
| HDCP support | Transfer function |
| EDID transmission | Transfer function |
| IR support | 20-60kHz |
| Serial interface | RS-232 |
| Transmission protocol | HDBaseT |
| Transmission average | 1 x Cat.5e/6 |
| Chipset | VS010 |

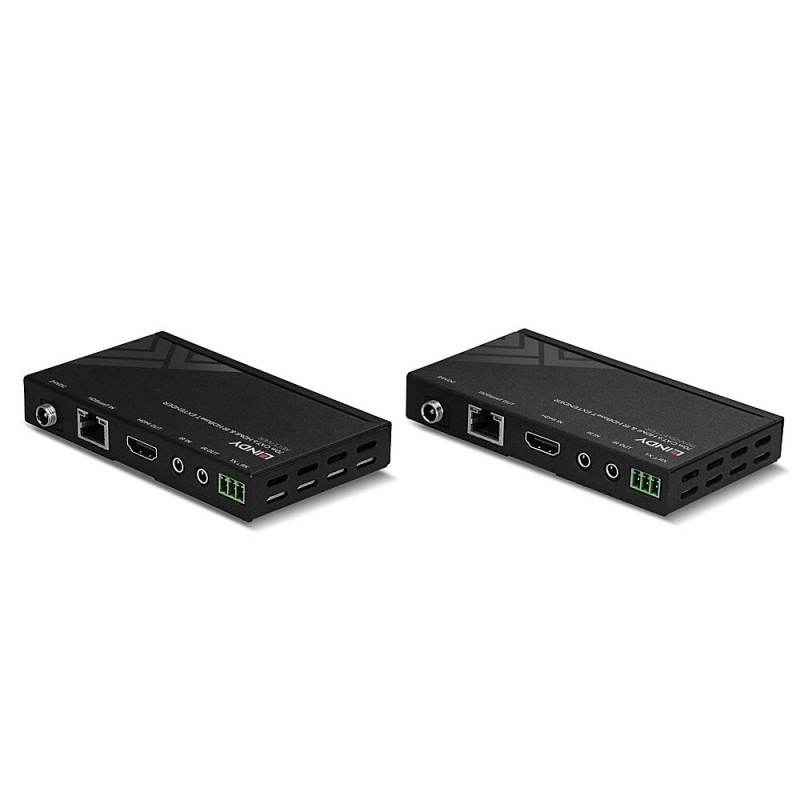

Connectors | |
| Sender input | HDMI® (Female), IR (Female) |
| Sender output | RJ45 (Female), AND (Female) |
| Receiver input | RJ45 (Female), AND (Female) |
| Receiver output | HDMI® (Female), IR (Female) |
| Power supply | 5.5/2.1mm DC socket |
Physical properties | |
| Dimensions (WxDxH) | 65x115x17mm (2.56x4.53x0.67in) per device |
| Housing | Metal |
| Net weight | 0.2kg (0.44lb) per device |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20-90% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Package contents | |
| |
www.lindy.lt
| Height | 70mm |
| Length | 217 mm |
| Weight | 900g |
| Width | 156 mm |
