HDMI extender up to 200m, 1080P

HDMI extender up to 200m, 1080P, with KVM, IR.
The HDMI extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 200 meters.

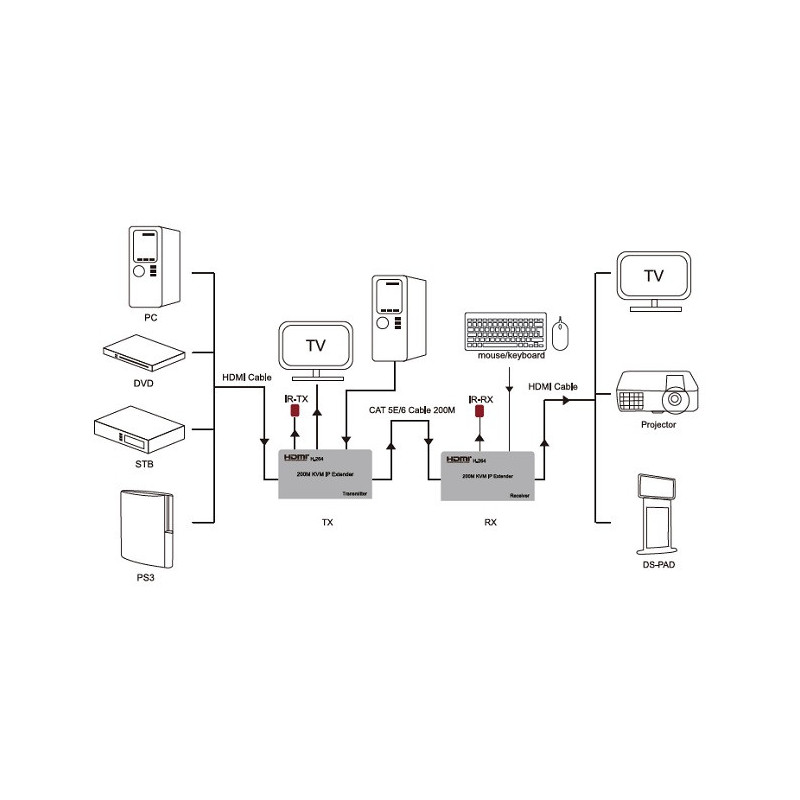

Using a network hub, this device can distribute the signal to individual receivers (point-to-multipoint function).
Features:

• Supports HDMI signal transmission even at distances of 200m.


• 802.3 Ethernet standard.


• Simple connection (plug and play), no additional software required.


• Low electricity consumption (max. 2/ 2.5W).


• Direct connection (point-to-point), signal distribution (point-to-multipoint), cascade connection functions.


• IR control, USB mouse and keyboard port (KVM control function) are supported.


• Can be applied to TV, PC, projectors, video cameras.

Technical data:

• Maks.(CAT5e/CAT6 cable) length between transmitter and receiver: 200m.


• HDMI resolution: 480p,720p,1080p.


• Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V /1A.


• Max. power consumption: transmitter (TX) 2.5W; receiver (RX) 2W.


• Operating temperature: -0°C ~ +45°C.


• Operating humidity: 10-80%RH.


• Size: 163x87x24 mm.


• Weight: TX 474g; RX 474g.

Transmitter sockets:

• DC/5V - power outlet.


• HDMI-IN - HDMI input.


• HDMI-OUT - HDMI output.


• IR-TX - IR transmitter socket.


• USB - USB socket for connecting to a PC.


• ETHERNET - CAT5e/ CAT6 cable socket.


• HDMI - signal indicator light.


• POWER - power indicator light.


• Receiver sockets:


• DC/5V - power outlet.


• HDMI-OUT - HDMI output.


• IR-TX - IR receiver socket.


• USB-1-2 - USB socket for connecting a mouse/keyboard.


• ETHERNET - CAT5e/ CAT6 cable socket.


• POWER - power indicator light.

Package:

• Transmitter (TX).


• Receiver (RX).


• Power adapter x2 (5V/1A DC).


• IR controller x2.


• Instructions for use.
