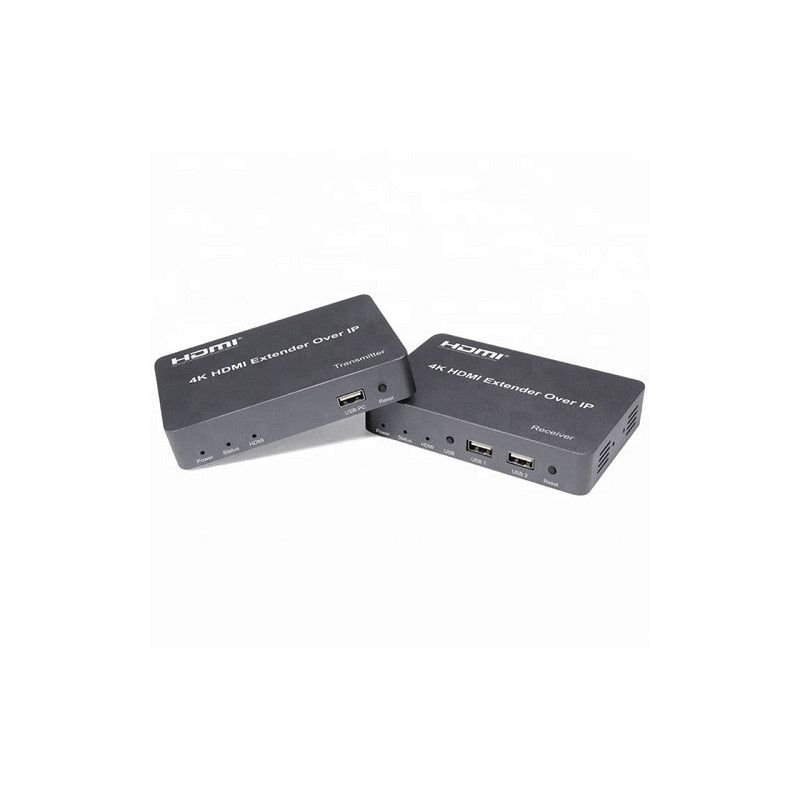

HDMI extender up to 150m, 4K

HDMI extender up to 150m, 4K

The HDMI extender with KVM (USB keyboard connector) uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 150 meters. Using a network hub, this device can distribute the signal to individual receivers (point-to-multipoint function).Features:

• Supports HDMI signal transmission up to 150m.


• Resolution 4K (3840x2160) / 30Hz.


• HDMI version 1.4b.


• Simple connection (plug and play), no additional software required.

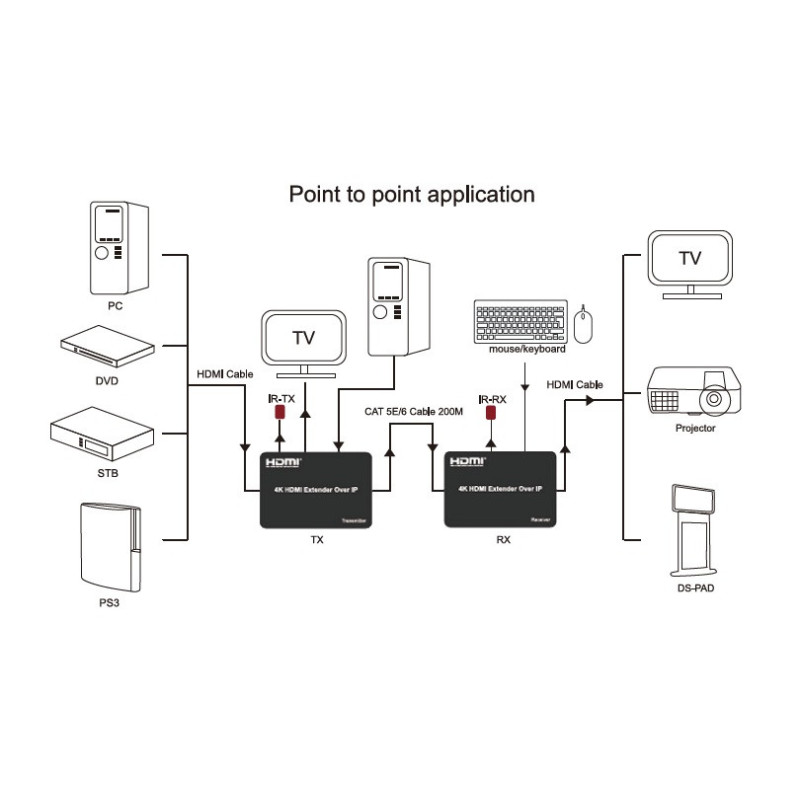

• Direct connection (point-to-point), signal distribution (point-to-multipoint), cascade connection functions.


• IR control, USB mouse and keyboard port (KVM control function) are supported.


• Can be applied to TV, PC, projectors, video cameras.

Technical data:

• Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 150m.


• HDMI version: HDMI 1.4b.


• HDMI resolution: 4K (3840x2160) / 30Hz; 8/10/12 bit color depth.


• Max. transmitter (TX) operating current: 420mA.


• Max. receiver (RX) operating current: 480mA.


• Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V /1A.


• Operating temperature: -0°C ~ +55°C.


• Operating humidity: 10-80%RH.


• Size: 124x85x24 mm.


• Weight: TX 204g; RX 207g.

Transmitter sockets:

• POWER - power indicator light.


• STATUS - status indicator light.


• HDMI - signal indicator light.


• USB-PC - USB socket for connecting to a PC.


• RESET - reset button.


• DC/5V - power adapter socket.


• UTP - network cable socket.


• IR-TX - IR transmitter socket.


• HDMI-IN - HDMI input.


• Receiver sockets:


• POWER - power indicator light.


• STATUS - status indicator light.


• HDMI - signal indicator light.


• USB - button to refresh USB1/USB2 connection.


• USB-1, USB-2 - USB ports for connecting a mouse/keyboard.


• RESET - reset button.


• DC/5V - power adapter socket.


• UTP - network cable socket.


• IR-TX - IR receiver socket.


• EDID - (Extended Display Identification Data) button to transmit TV EDID information to the HDMI extender.


• HDMI-OUT - HDMI output.

Package:

• Transmitter (TX).


• Receiver (RX).


• Power adapter x2 (5V/1A DC).


• IR controller x2.


• Instructions for use.
