LINDY USB 3.2 Gen 1 to HDMI 4K60 HDBaseT Extender 100m
Extends USB and AV signals from two Type C sources up to 100m via HDBaseT, supporting HDMI 4K60 resolution and USB 3.2 Gen 1. Features include 100W power delivery on a single Type C port and multiple output options including HDMI and USB Type A.
- Extends HDMI 4K60 and USB 3.2 Gen 1 signals up to 100 meters (328.08 feet) using Cat.6A cable.
- Supports high-definition images up to 3840x2160@60Hz with 18Gbps HDMI bandwidth.
- Offers multiple connectivity options, including USB Type C, HDMI, and audio jacks for a variety of setups.
- Includes Power over Cable (PoC) and 100W power delivery on a single Type C port for efficient power management.
Features | |
|---|---|
| Product type | AV Extender |
| Model | 100m Cat.6A 2 Host USB 3.2 Gen 1 HDMI 4K60 HDBaseT Extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | 2.0, USB 3.2 Gen 1 |
| Supported bandwidth | HDMI® 18Gbps, USB 5Gbps |
| Maximum distance | 100m (328.08 feet) |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| EDID bandwidth | Yes |
| Supported audio | Throughput |
| Number of separate audio jacks | 5-pin terminal block |
| Transmission protocol | HDBaseT USB 3 |
| Transmission medium | Cat.6A |
| Chipset | VS6320, DisplayLink |
| Special features | API, 100W PD on one Type C port, PoC, audio separation, FSYNC, bulk, interrupt and isochronous USB data transfer |
Connectors | |

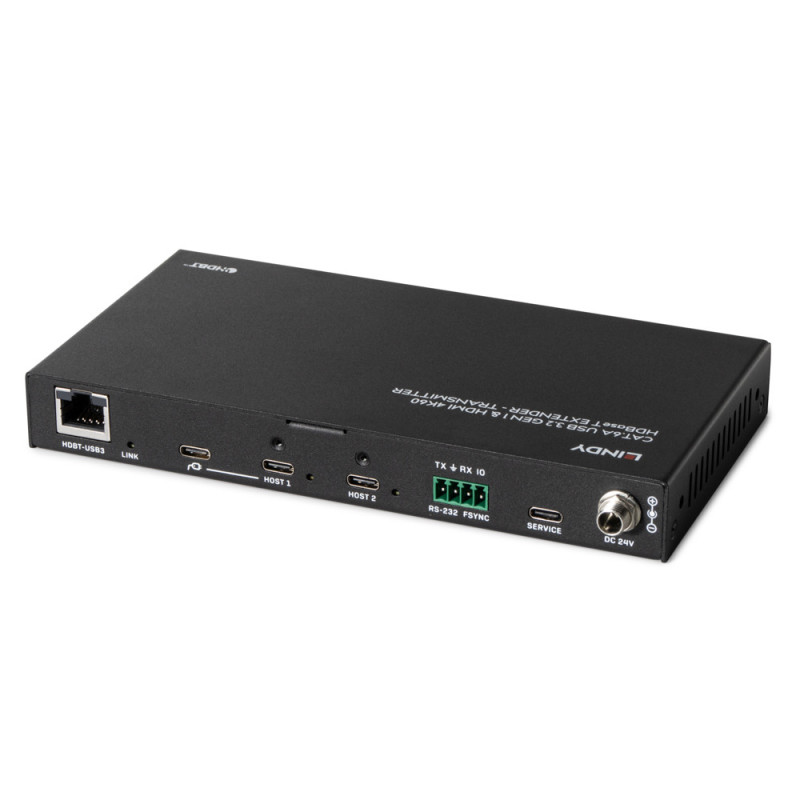

| Sender input | 2 x USB Type C (Female), USB Type C for power only (Female) |

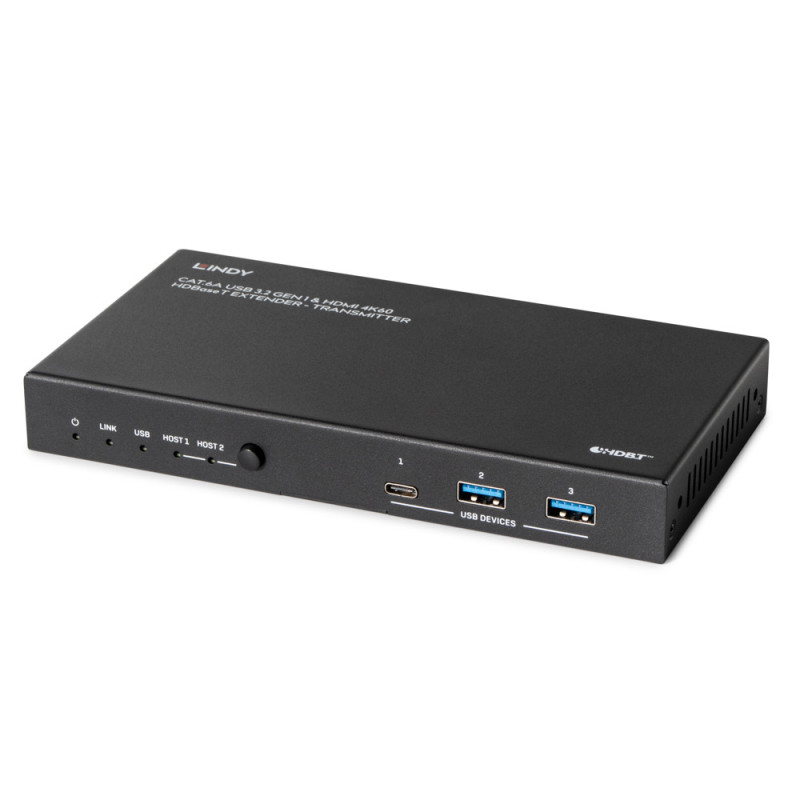

| Sender output | RJ45 (Female), Type C (Female), 2 x Type A (Female) |
| Receiver input | RJ45 (Female) |

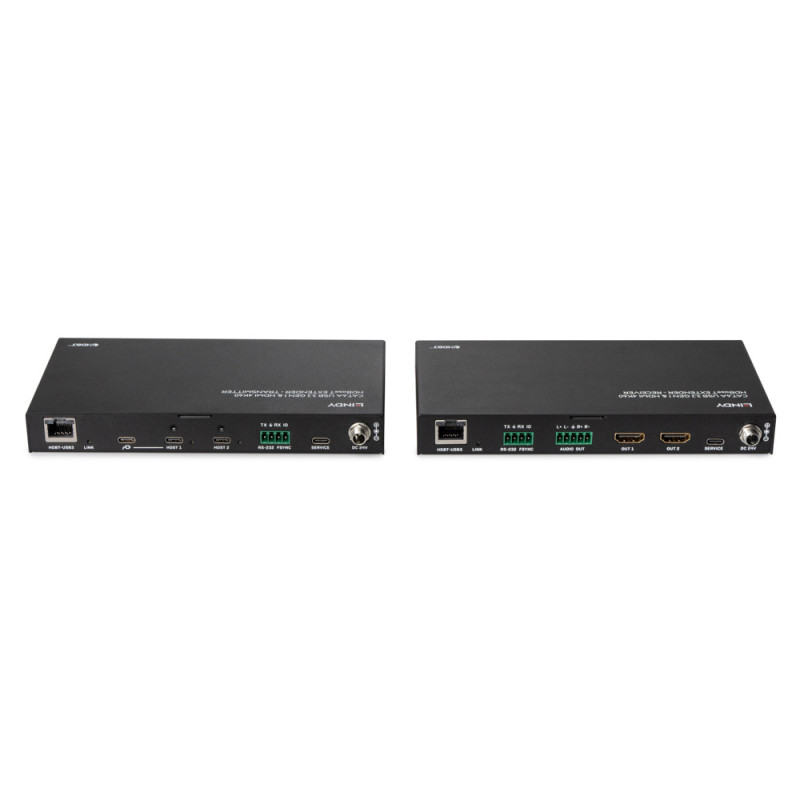

| Receiver output | 2 x HDMI® (Female), Type C (Female), 2 x USB Type A (Female), Audio 5-Pin Terminal Block |
| Control sockets | Type C (Female), RS-232 4-Pin Terminal Block |
| Power supply | 5.5/2.1mm DC jack |
Physical properties | |
| Dimensions WxDxH | 180x95x23mm (7.09x3.74x0.91in) per unit |
| Housing | Metal |
| Net weight | 2.05kg (4.52lb) |
| Working temperature | 0° - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 10 - 90% RH (non-condensing) |
| Power requirements | 24VDC 3.75A |
| Color | Black |
Package contents | |
| |
www.lindy.lt
| Length | 252 mm |
| Height | 85 mm |
| Width | 260mm |
| Weight | 2380 grams |
