HDBaseT Splitter - LINDY Cat.6 HDMI 4K60 HDBaseT Splitter 4 Ports with PoC 100 m
Product reference:
14-4002888383554
Supports HDMI 4K60 resolution up to 3840x2160@60Hz and can transmit signals up to 70 m away in 4K resolution and 100 m away in 1080p. The device has a built-in 4-port splitter, PoC function and multiple audio output options, including HDMI audio pass-through.
HDBaseT Splitter - LINDY Cat.6 HDMI 4K60 HDBaseT Splitter 4 Ports with PoC 100 m
Product reference:
14-4002888383554
Supports HDMI 4K60 resolution up to 3840x2160@60Hz and can transmit signals up to 70 m away in 4K resolution and 100 m away in 1080p. The device has a built-in 4-port splitter, PoC function and multiple audio output options, including HDMI audio pass-through.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY Cat.6 HDMI 4K60 HDBaseT Splitter 4-Port with PoC 100 m
Supports HDMI 4K60 resolution up to 3840x2160@60Hz and can transmit signals up to 70 m away 4K and 100 m away 1080p. The device has a built-in 4-port splitter, PoC function and multiple audio output options, including HDMI audio pass-through.
- Supports 4K resolution at 60Hz frequency with a maximum distance of 100 m over Cat.6 cables.
- Integrated 4-port HDMI splitter with Power over Cable (PoC) functionality.
- Compatible with HDMI 2.0 and HDCP 2.2 to improve audio and video quality.
- Includes multiple audio output options and IR support for convenient remote control.
Features | |
|---|---|
| Product type | HDBaseT Splitter |
| Model | 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI 2.0 |
| Supported bandwidth | 18Gbps |
| Maximum distance | 70m 4K, 100m 1080p |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| EDID transmission | Predict, Cloning |
| Supported audio | HDMI audio transmission, digital audio up to 5.1Ch, analog audio up to 2.0Ch |
| IR support | 20 - 60KHz |
| Serial interface | RS-232 |
| Transmission protocol | HDBaseT |
| Transmission medium | 4 x Cat.6 |
| Special features | PoC (Power over Cable), HDMI Loop Out port |

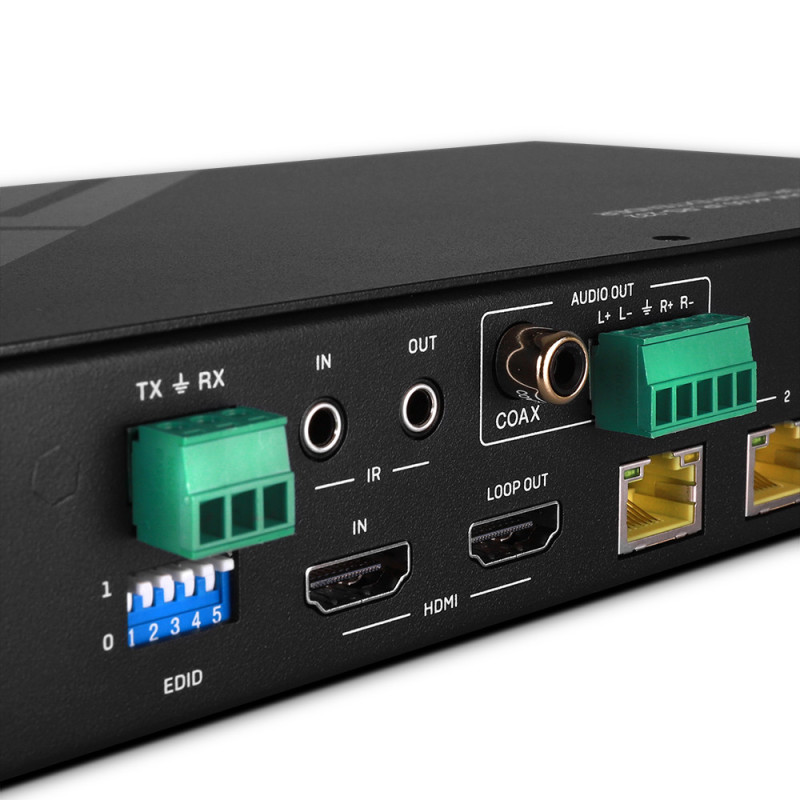

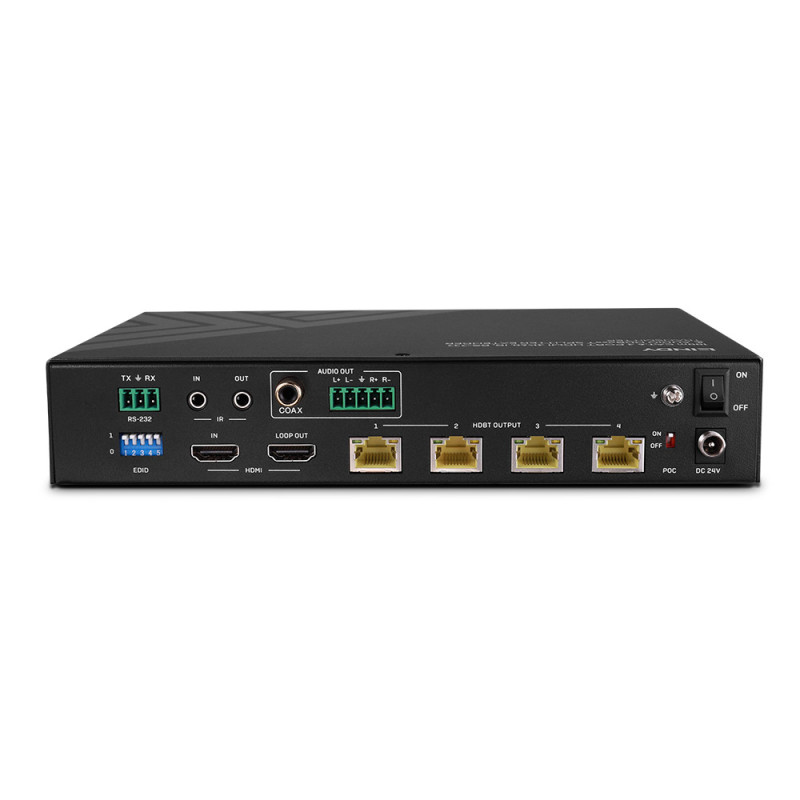

Connectors | |
| Send input | HDMI® (Female), 3.5mm IR (Female) |
| Send output | HDMI® (Female), Coax RCA (Female), L/R Audio 5-pin phoenix, 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female) |
| Double-sided connectors | RS-232 3-Pin Terminal Block |
| Power connector | 5.5/2.1mm |
Physical properties | |
| Measurements | 220 x 130 x 40 mm |
| Housing | Metal |
| Net weight | 1.395 kg |
| Working temperature | 0°C - 40°C |
| Safety temperature | -20°C - 60°C |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 24VDC 2.7A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 285 x 274 x 100 mm |
| Gross weight | 1.894 kg |
| Product compliance | CE, UKCA, FCC, RoHS, REACH and California Proposition 65 |
www.lindy.lt
| Height | 100mm |
| Length | 285 mm |
| Weight | 2340 grams |
| Width | 280 mm |
