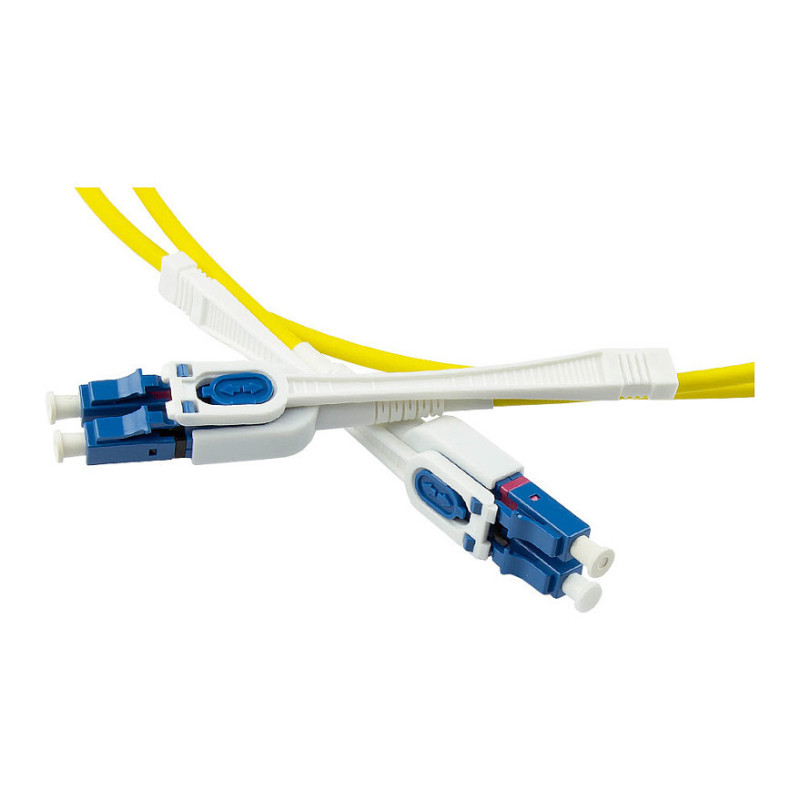

Alcasa LW-U901LC InfiniBand / fibre optic cable

Alcasa LW-U901LC. Cable length: 1 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

Fiber optic (LWL) patch cables from Good Connections® enable various network components to be connected to one another and ensure loss-free data transmission. Different quality classes (OMx / OSx) facilitate the qualitative and functional differentiation of a fiber optic patch cable.

Uniboot version with release tab / extractor lever
Compared to conventional duplex fiber optic patch cables, both conductors share a single sheathing and the kink protection in the Uniboot version. This means that the Uniboot fiber optic patch cables are up to 50% more space-saving than conventional fiber optic cables, depending on the cable diameter. The unlocking tab or the extractor lever on the plugs makes it easier to unplug panels with a high plug-in density.

High quality standards, 100% testing and individual measurement protocols
The use of high-quality materials and modern production facilities as well as ongoing quality controls during the production process ensure loss-free signal transmission and consistently high quality. Every single patch cable goes through a test after assembly. After a successful measurement, an individual measurement / test report is enclosed with each patch cable.

Features

Cable length: 1 m
Fibre optic type: OS2
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: UPC
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Jacket material: Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight & dimensions

Cable diameter: 3 mm
Bending radius: 1.5 cm
