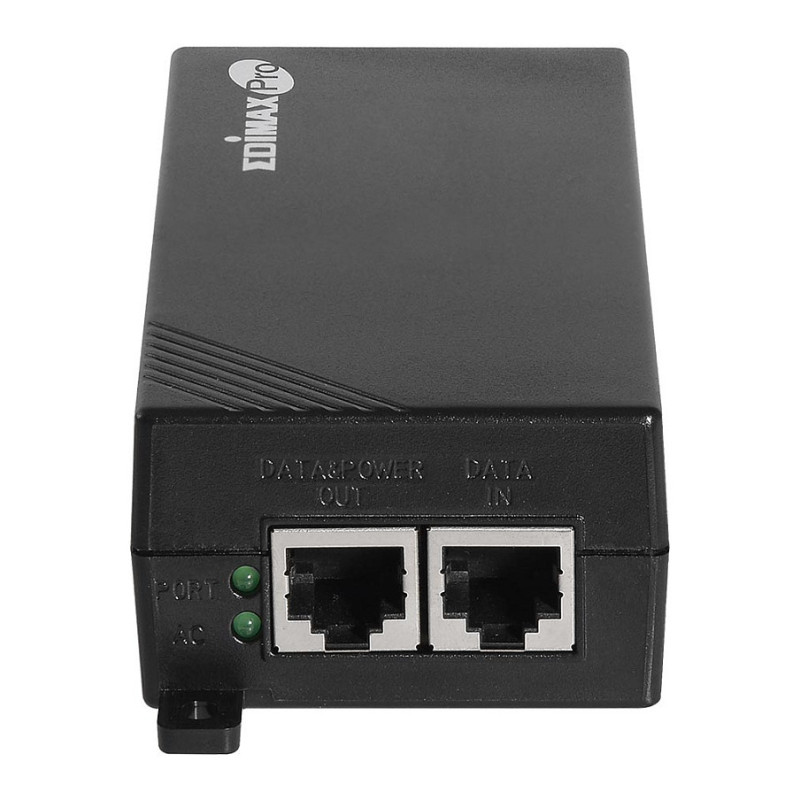

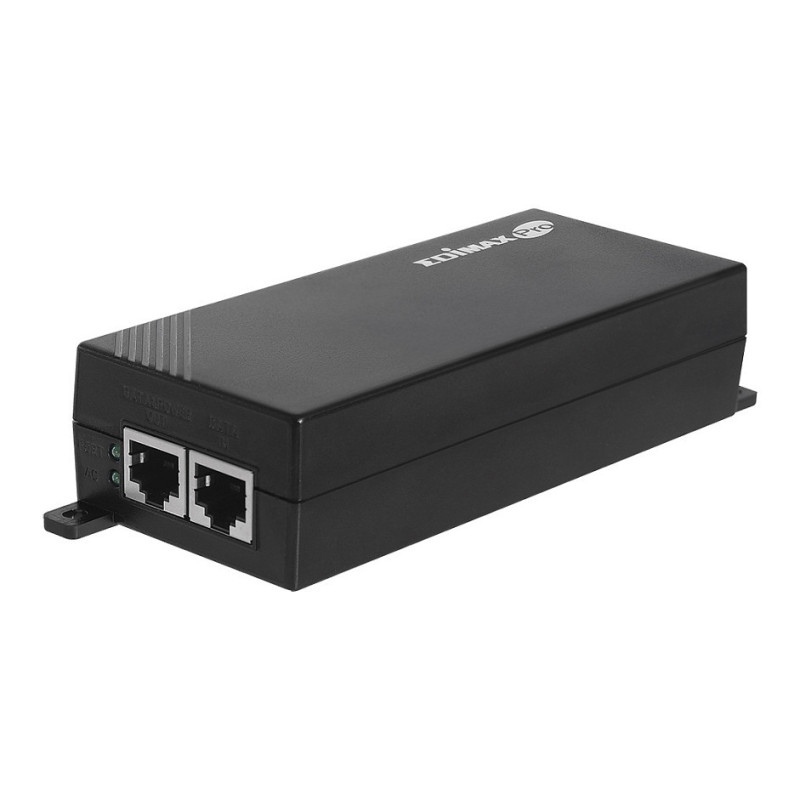

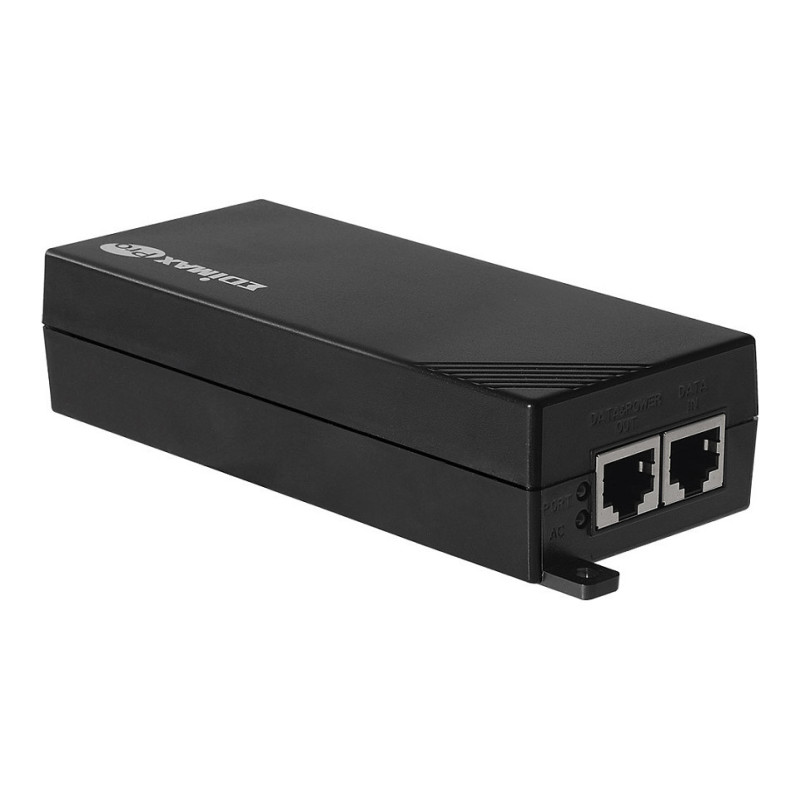

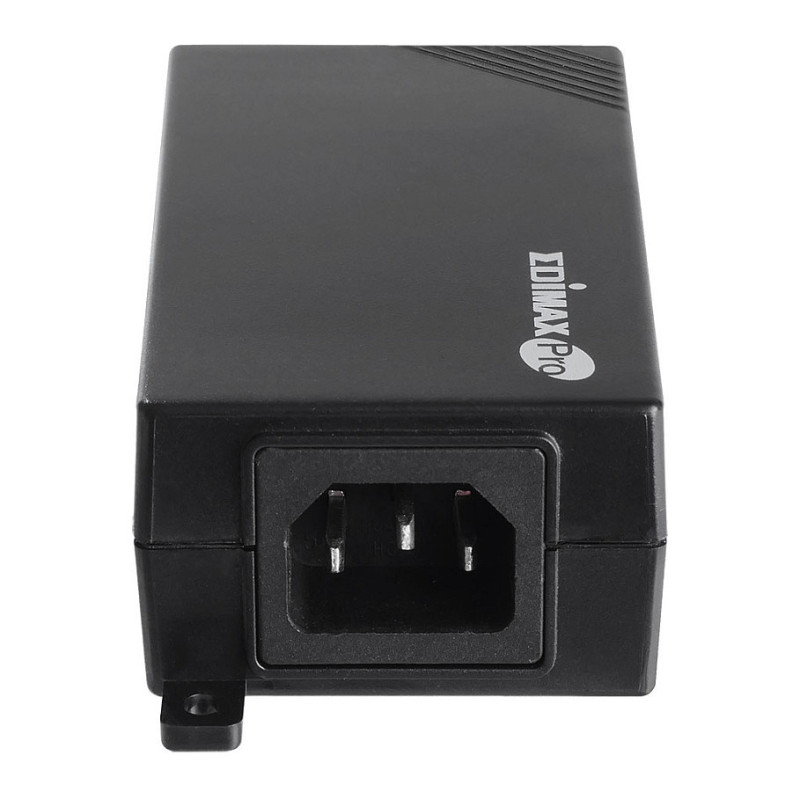

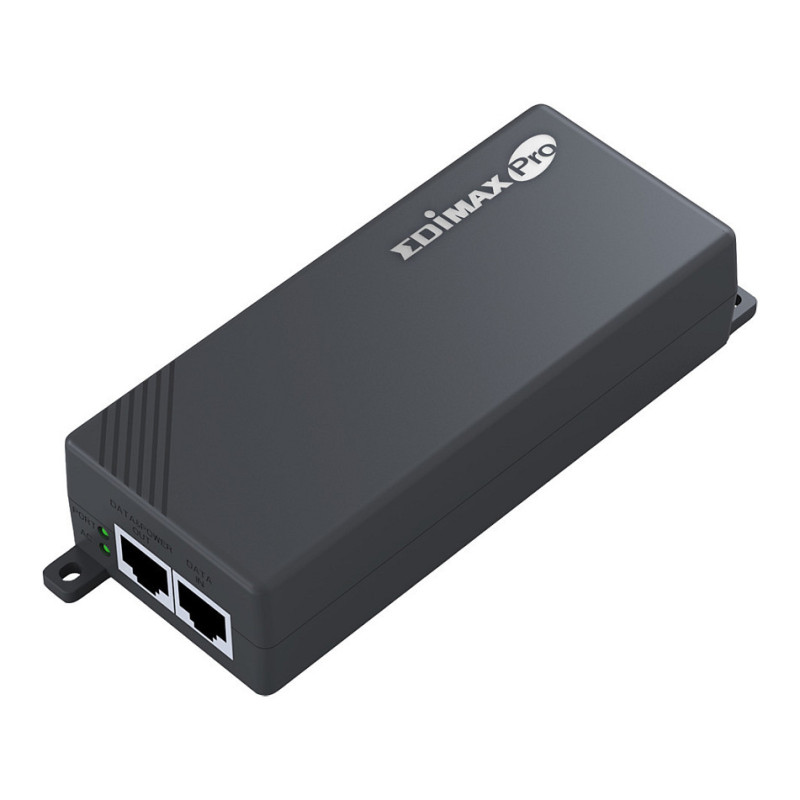

Edimax GP-101IT PoE adapter

Edimax GP-101IT. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. LED indicators: Power. Power over Ethernet (PoE) voltage: 53 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Compliance industry standards: IEEE 802.3, IEEE 802.3u\ab\af\at, Certification: FCC, CE. Weight: 185 g, Dimensions (WxDxH): 58 x 155 x 36 mm
The Edimax GP-101IT is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch or router are merged together and then transmitted to the IEEE 802.3at/af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches.
IEEE 802.3at/af Power over Ethernet Standard
Because of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can directly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported.
Higher Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-101IT reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort.
Flexible Reliable Power Supply
Featuring PoE short circuit protection to safeguard network devices and protect against damage.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE): Yes

Features

LED indicators: Power

Ports interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 53 V
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 0.6 A
Power consumption (typical): 30 W

Certificates

Compliance industry standards: IEEE 802.3, IEEE 802.3u\ab\af\at
Certification: FCC, CE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Weight: 185 g
Dimensions (WxDxH): 58 x 155 x 36 mm

Logistics data

Harmonized System (HS) code: 85044095
