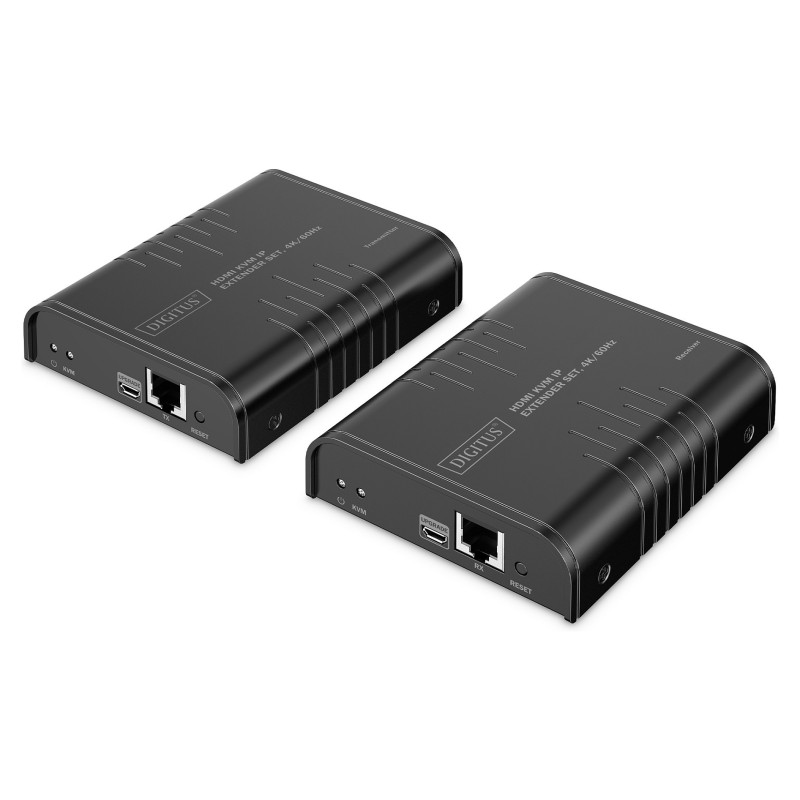

Digitus DS-55355 KVM extender

Digitus HDMI KVM IP Extender Set, 4K/60Hz. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 200 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A/Micro-USB, USB data transfer rates: 480 Mbit/s. AC adapter output voltage: 5 V, AC adapter output current: 1 A, Power consumption (transmitter) (max): 3.5 W

Enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over a distance of up to 200 m (point-to-point connection) via a CAT6 (or higher) network cable and offers a KVM function (keyboard, mouse, touchscreen) on the receiver side

- Long range: AV signal transmission via CAT6 (or higher) cable up to 200 m - point-to-point connection
- Expandable via IP: Supports up to 253 receivers (displays) - Point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Expansion options: Additional receivers (RX) available separately (model: DS-55356)
- Additional connectivity & control: KVM function for connecting mouse & keyboard as well as touch screen support on the receiver side
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 120-170 ms
- Supports CAT6 (or higher) network cables

The HDMI KVM IP Extender Set enables the high-resolution transmission of HDMI AV signals in brilliant 4K UHD quality (4096x2160p at 60Hz) over a distance of up to 200 meters using CAT6 or higher-quality network cables. Thanks to the integrated KVM function, the mouse, keyboard and touchscreen devices can be used directly on the receiver side, enabling convenient control. The system impresses with its flexible expandability and supports point-to-point connections as well as point-to-multipoint transmissions with up to 253 receivers. By using an existing 1G network infrastructure or additional network switches, signal transmission can be extended to unlimited distances (cascading). A low latency of only 120 to 170 ms ensures almost delay-free image reproduction in excellent quality. In addition, optional receivers (model: DS-55356) can be purchased separately to extend the range of applications individually. Thanks to its simple connectivity and control, the HDMI KVM IP Extender Set is ideal for companies, conference rooms, digital signage and professional AV applications where reliable, low-latency and high-resolution signal transmission is required.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 200 m
Cable types supported: Cat6
Maximum digital resolution: 4096 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black
Material: Metal
Feature: Easy to install
LED indicators: Yes
Feature: Electrostatic Discharge (ESD) protection

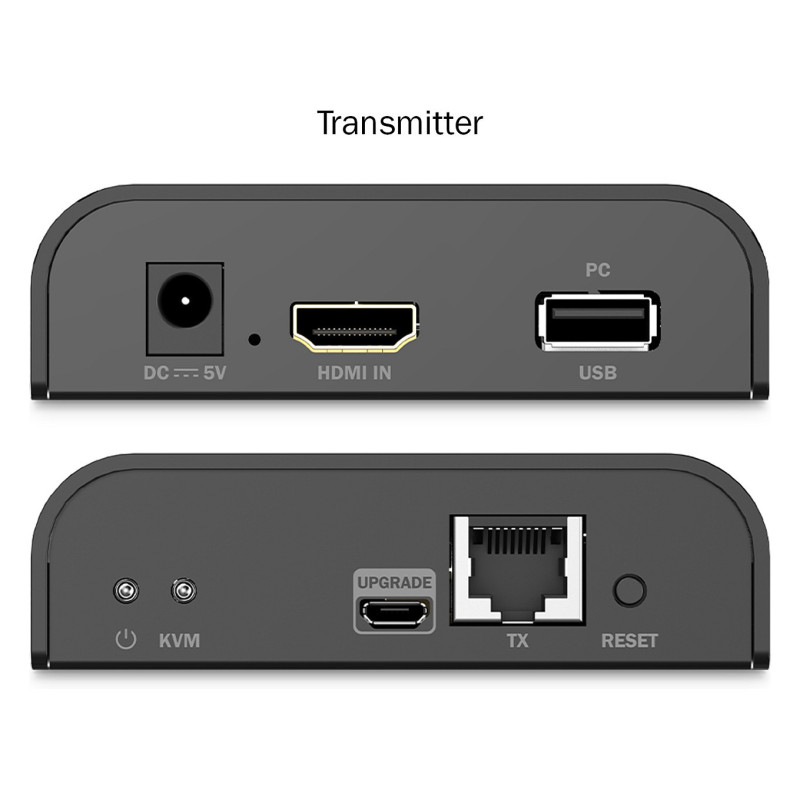

Transmitter

Transmitter video port type: HDMI
Number of displays supported: 1
RJ-45 ports quantity (transmitter): 1
Transmitter Micro-USB ports quantity: 1

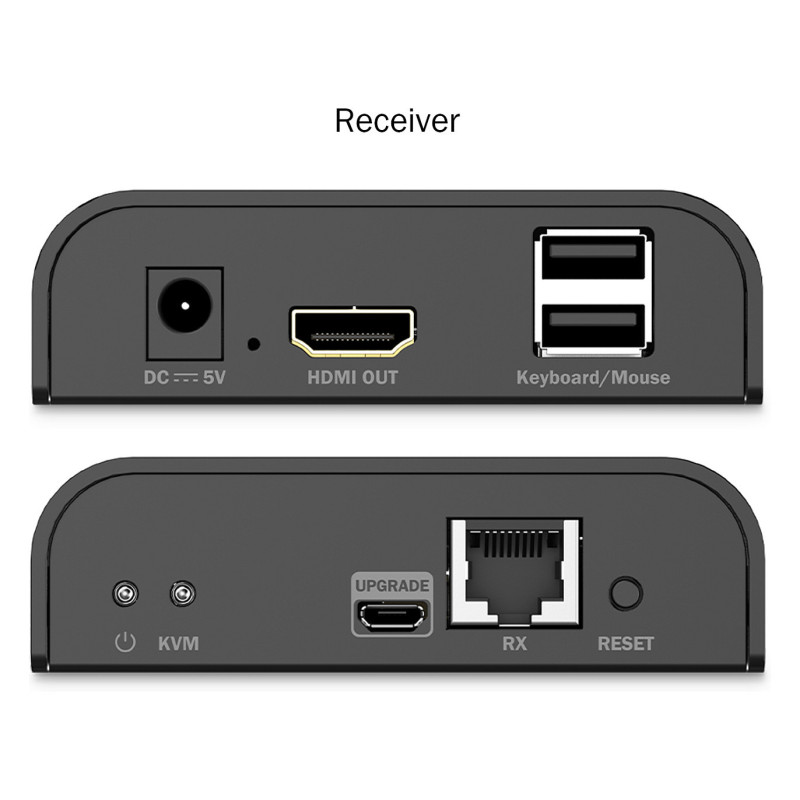

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver Micro-USB ports quantity: 1
Receiver USB Type-A ports quantity: 2

Ports & interfaces

USB port type: USB Type-A/Micro-USB
USB 2.0 ports quantity: 3
HDMI version: 2.0
USB data transfer rates: 480 Mbit/s
RJ-45 ports quantity: 2

Power

AC adapter output voltage: 5 V
AC adapter output current: 1 A
Power consumption (transmitter) (max): 3.5 W
Power consumption (receiver) (max): 2.5 W
Feature: DC-in jack

Weight & dimensions

Transmitter width: 8.95 cm
Transmitter depth: 10.9 cm
Transmitter height: 2.63 cm
Transmitter weight: 240 g
Receiver width: 8.95 cm
Receiver depth: 10.9 cm
Receiver height: 2.63 cm
Receiver weight: 243 g

Packaging data

Package width: 176 mm
Package depth: 240 mm
Package height: 80 mm
Package weight: 930 g

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Quick installation guide

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Other features

Feature: HDCP
HDCP version: 1.4/2.2
Bandwidth: 18 Gbit/s
