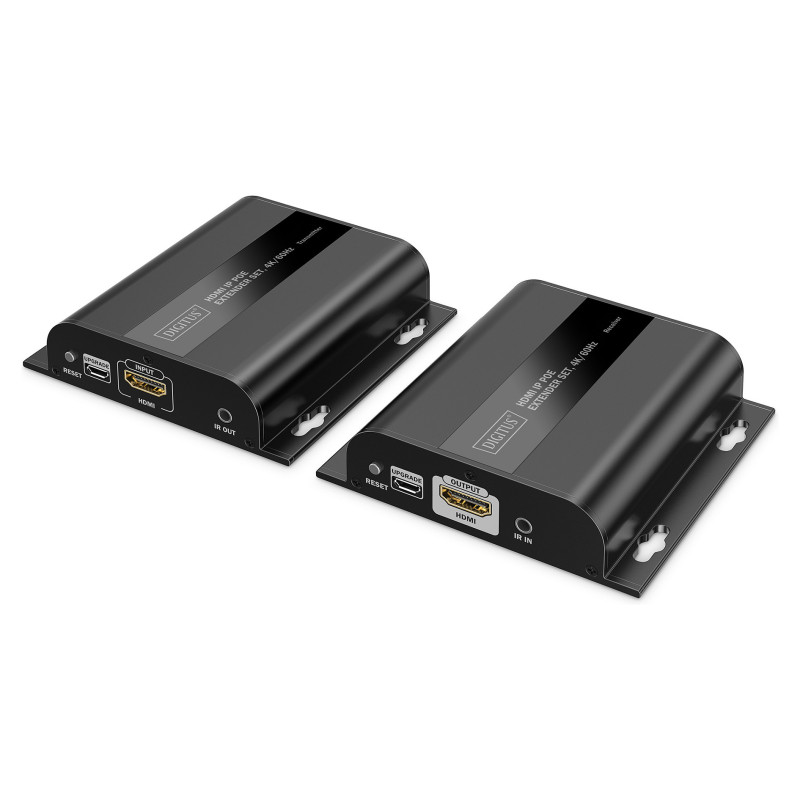

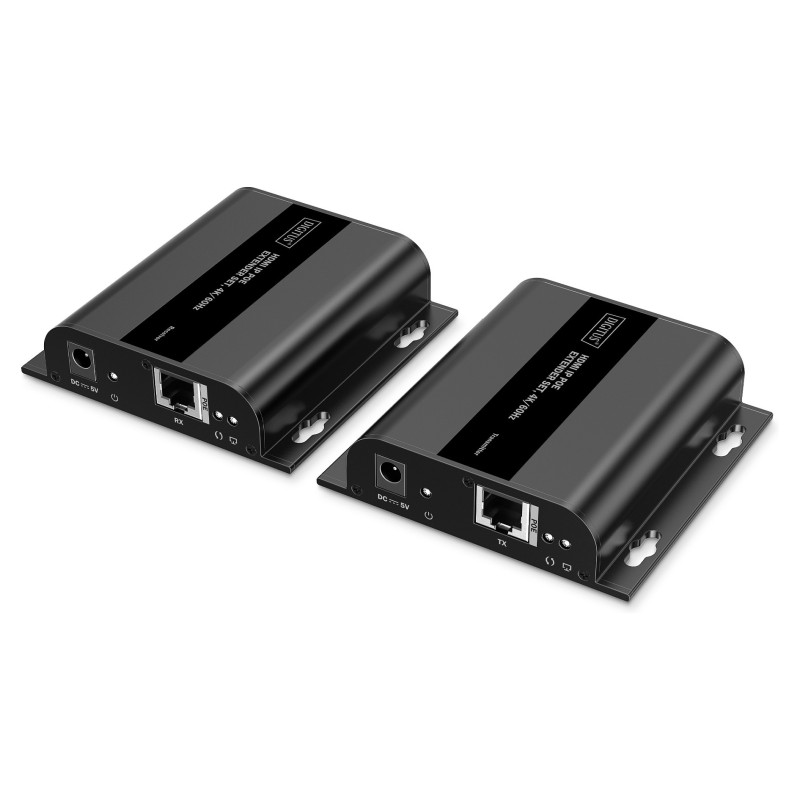

Digitus DS-55353 AV extender

Digitus HDMI IP PoE Extender Set, 4K/60Hz. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, USB connector type: Micro-USB. Power source type: DC, Operating voltage (transmitter): 5 V, Output current: 1 A. Receiver dimensions (WxDxH): 94 x 97 x 24 mm, Receiver weight: 164 g, Transmitter dimensions (WxDxH): 94 x 97 x 24 mm. Package width: 149 mm, Package depth: 199 mm, Package height: 80 mm

Enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over a distance of up to 200 m in point-to-point connection via a CAT6 (or higher) network cable. Thanks to PoE support, no external power supply is required.

- Long range: AV signal transmission via CAT6 (or higher) cable up to 200 m - point-to-point connection
- Expandable via IP: Supports up to 253 receivers (displays) - Point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Expansion options: Additional receivers (RX) available separately (model: DS-55354)
- Flexible installation thanks to PoE support: Complete power supply via PoE network switch - no external power supply units required
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
- IR interface enables remote control of the input source from the output screen
- Supports CAT6 (or higher) network cables
- Suitable for wall mounting

The HDMI IP Extender Set, 4K/60Hz enables the transmission of HDMI AV signals in ultra-high-definition 4K quality (4096x2160p at 60Hz) over long distances of up to 200 meters - thanks to the powerful point-to-point connection via a CAT6 network cable or higher. The set is fully powered via a PoE network switch, no external power supply units are required. Expansion via IP allows the system to be scaled flexibly and supports up to 253 receivers (displays) for point-to-multipoint transmission. In addition, the existing 1G network infrastructure can be used, enabling unlimited signal range through cascading via network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). The excellent picture quality is always maintained: Thanks to a low latency of just 150-220 ms, transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output screen. The device is also suitable for wall mounting, allowing for space-saving installation. Ideal for professional AV applications, home cinema setups or use in companies - this HDMI IP extender set combines the highest transmission quality with maximum flexibility.

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 200 m
Maximum refresh rate: 60 Hz
Feature: Electrostatic Discharge (ESD) protection
LED indicators: Yes
Supported video modes: 2160p
Bandwidth: 18 Gbit/s
Feature: HDCP
Material: Metal
Feature: Wall mountable
HDCP version: 1.4/2.2
Product colour: Black

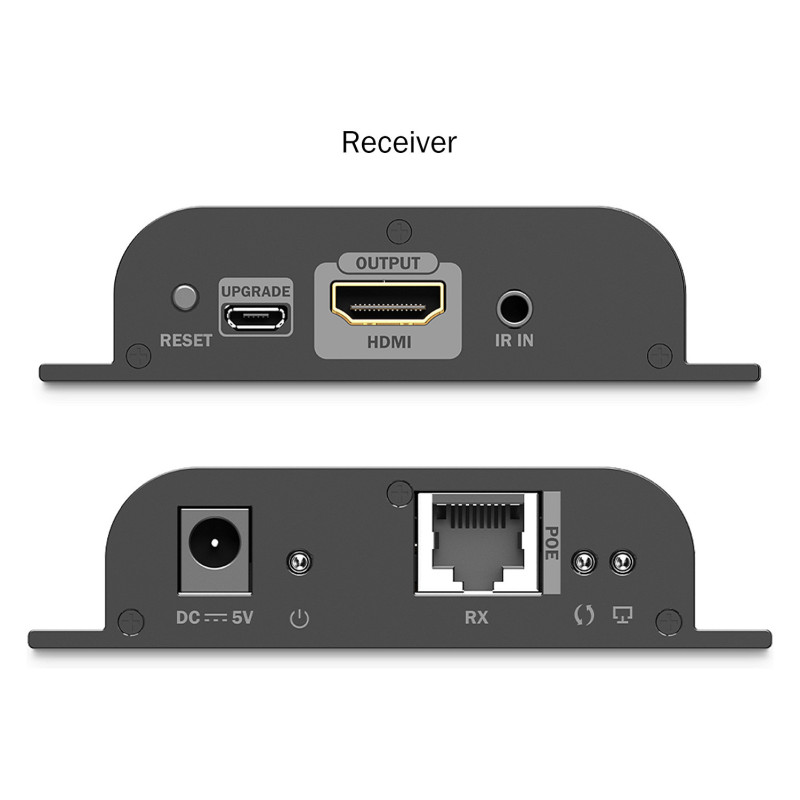

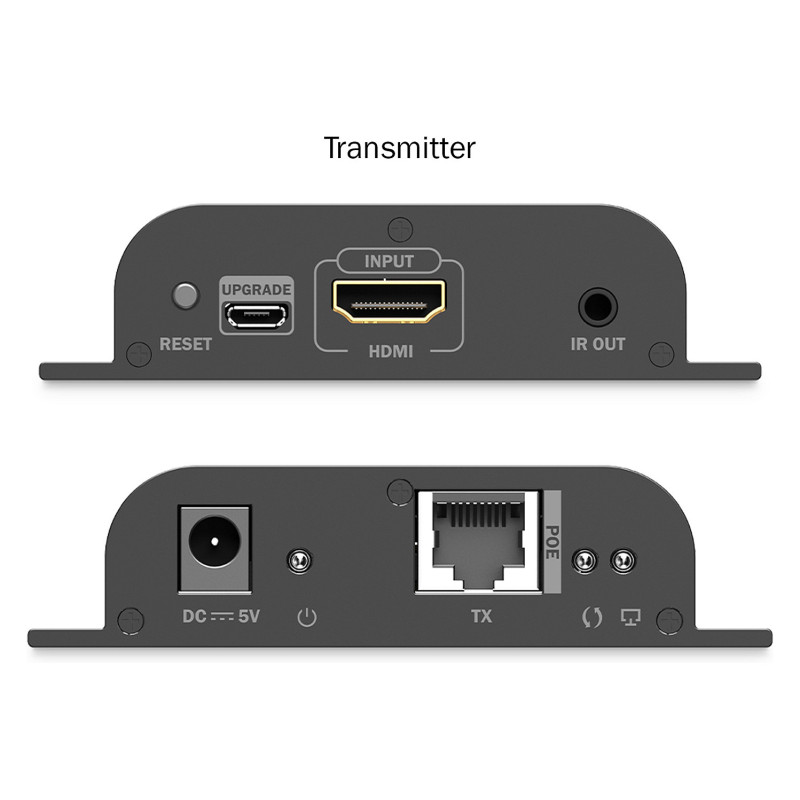

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
HDMI version: 2.0
USB ports quantity: 2
USB connector type: Micro-USB
Feature: 3.5 mm (1/8-inch) in
Feature: 3.5 mm (1/8-inch) out
Remote (IR) input: 1
Remote (IR) output: 1
Feature: DC-in jack

Power

Power source type: DC
Operating voltage (transmitter): 5 V
Output current: 1 A
Operating voltage (receiver): 5 V
Power consumption (transmitter) (max): 2.5 W
Power consumption (receiver) (max): 2.5 W
Feature: External power adapter
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH): 94 x 97 x 24 mm
Receiver weight: 164 g
Transmitter dimensions (WxDxH): 94 x 97 x 24 mm
Transmitter weight: 166 g

Packaging data

Package width: 149 mm
Package depth: 199 mm
Package height: 80 mm
Package weight: 570 g

Packaging content

Feature: AC adapter included
Cables included: IR
Feature: Quick start guide
