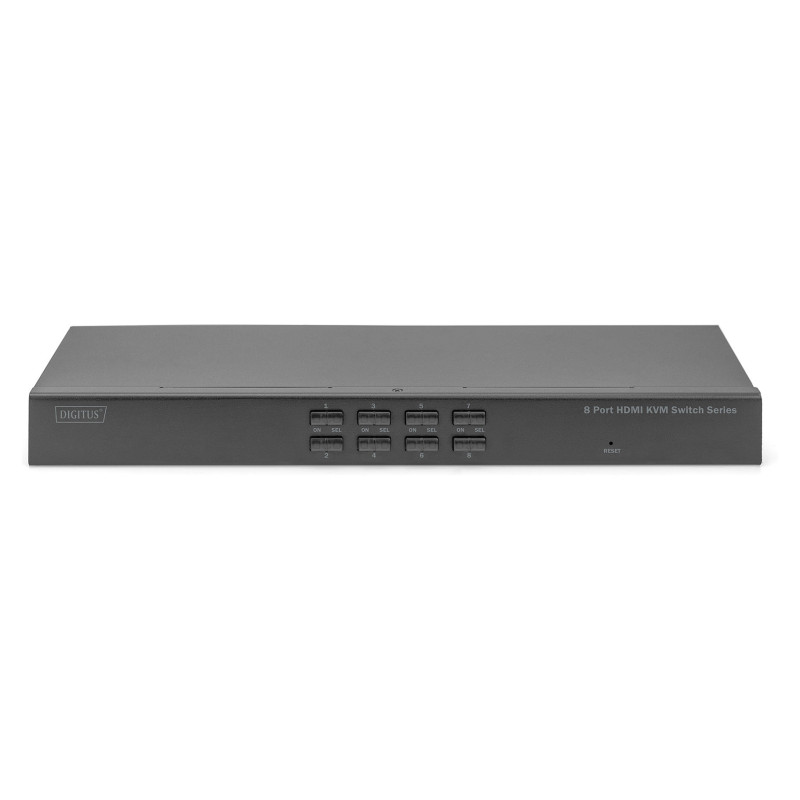

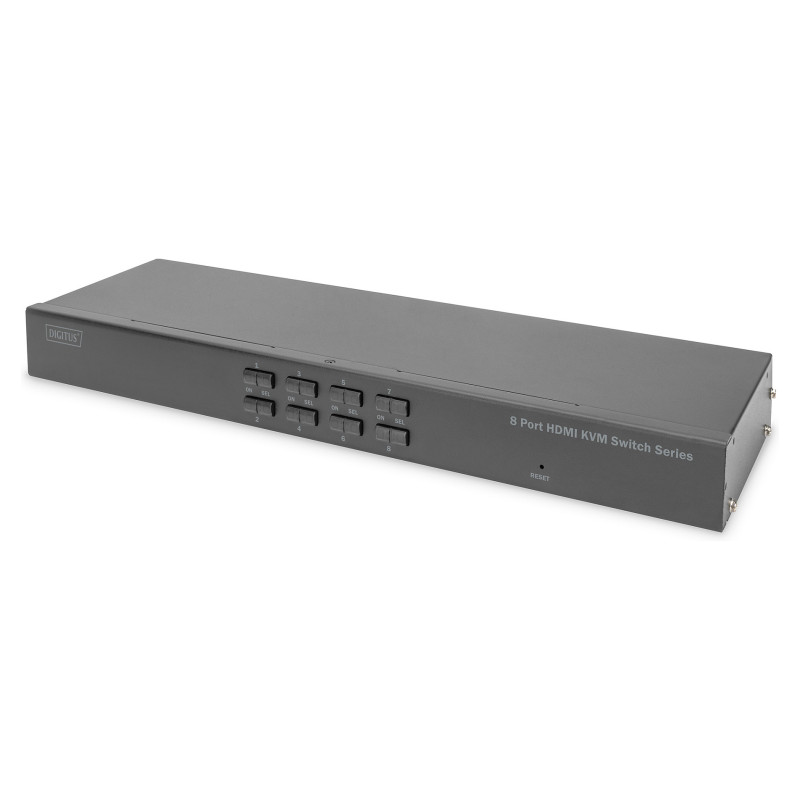

Digitus DS-12910 KVM switch

Digitus 8 Port HDMI KVM Switch Series. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal. Power source: DC. Other operating systems supported: FreeBSD, Solaris 10, Solaris 11, Solaris 8, Solaris 9, UnixWare

- The console supports USB TYPE A interface type keyboard and mouse devices
- The maximum resolution of rack type KVM is 4K @30HZ (users need to match 4K cable by themselves)
- It can switch the computer through the front panel buttons, keyboard hot keys and the OSD menu
- Connects to the server device for BIOS-level access without worrying about the risk of viruses and Trojans invasion.
- The server computer does not need to install any software and drivers, and the server computer directly recognizes KVM.
- Supports OSD to set user login mode and increase the security requirements of KVM login.
- Supports wide-screen resolution.
- Supports DDC communication and adapts to a variety of graphic card devices.

Introducing the DS-12910, a versatile console that allows you to easily switch between max 8 HDMI computers using USB TYPE A interface type keyboard and mouse devices. With a maximum resolution of 4K @30HZ, this rack type KVM is perfect for users who demand high-quality visuals. The front panel buttons, keyboard hot keys and OSD menu make switching between computers a breeze, while the device's ability to connect to the server device for BIOS-level access provides added security against viruses and Trojans invasion. And because the server computer doesn't require any software or drivers, it can recognize the KVM directly. The DS-12910 also supports wide-screen resolution, DDC communication, and can adapt to a variety of graphics card devices. The auto scan function enables you to monitor all computer operations with ease. The device is compatible with Windows, Linux, Mac* and Sun*, and the keyboard and mouse connection port of the server computer adopts Keep Online technology to simulate the keyboard and mouse. As a result, the device is safe, stable, and switching is fast without delay.

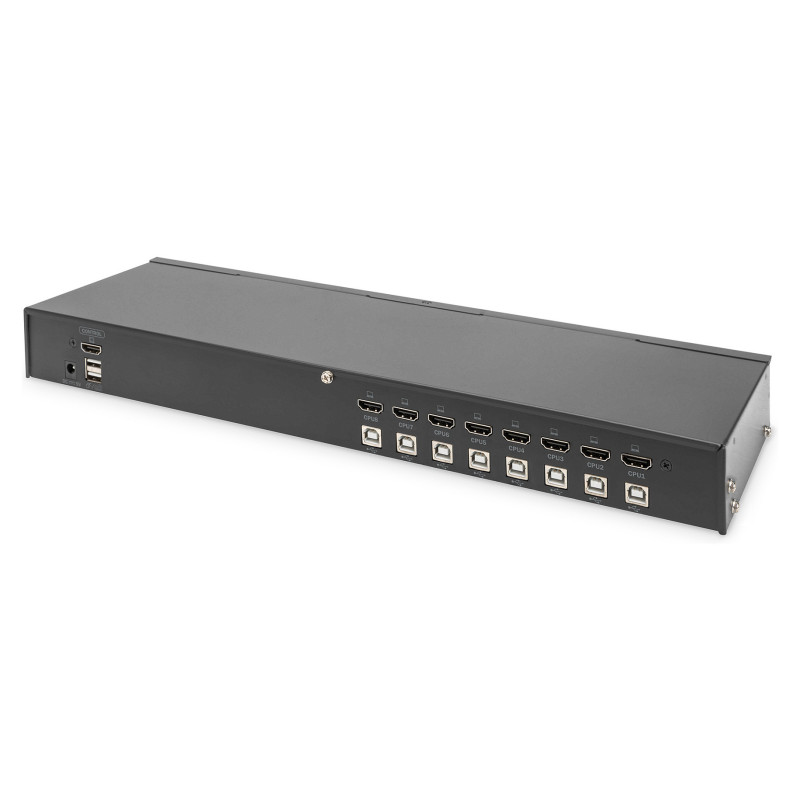

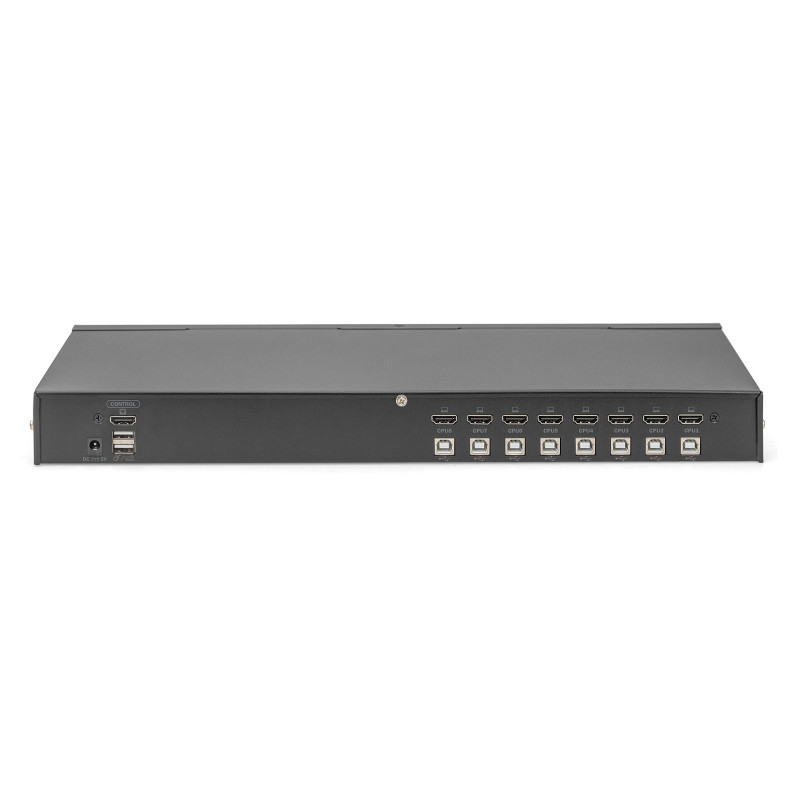

Ports & interfaces

Number of computers controlled: 8
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 8
USB 2.0 Type-B ports quantity: 8
Console ports: HDMI, USB A
Console USB ports quantity: 2
Console HDMI ports quantity: 1
USB 2.0 Type-A hub ports quantity: 2
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 30 Hz
Feature: DDC/DDC2 supported

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
Feature: Push button

Display

Feature: On Screen Display (OSD)

Power

Power source: DC

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Server operating systems supported: Yes
Other operating systems supported: FreeBSD, Solaris 10, Solaris 11, Solaris 8, Solaris 9, UnixWare

Weight & dimensions

Width: 155 mm
Depth: 44 mm
Height: 432 mm

Packaging data

Package width: 155 mm
Package depth: 204 mm
Package height: 475 mm
Package volume: 15019.5 cm³
Package weight: 475 g

Packaging content

Cables included: HDMI, USB
Feature: AC adapter included
Feature: Rack mount kit

Logistics data

UK Trade Tariff code: 84718000
Country of origin: China
