Digitus DS-12891 KVM switch

Digitus KVM Switch, 4x1 DP, DP Out,USB. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V. Width: 202 mm, Depth: 110 mm, Height: 44 mm

With 4K @ 60HZ resolution and dual Displayport inputs, this KVM switch offers impressive picture quality and flexibility when connecting to multiple devices. The additional ports on the front and support for Dolby True HD and DTS HD Master Audio make it a versatile choice for all types of applications.

- Resolution: 4K @ 60HZ (3840x2160 @60HZ)

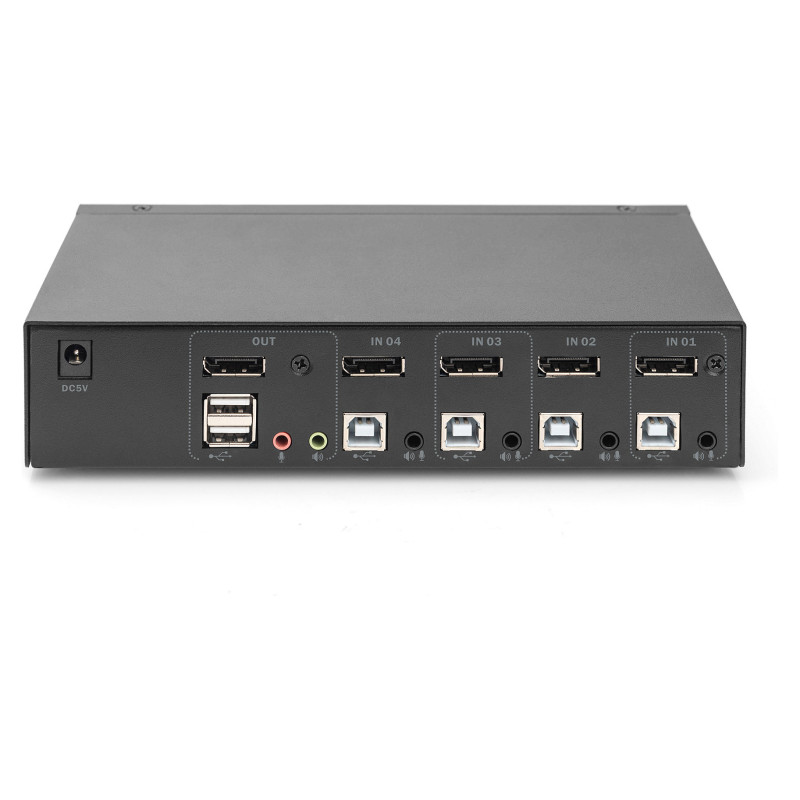

- Inputs: 4 x Displayport inputs (4x1), 4 x USB B, 4x audio combo socket 3.5 mm jack (microphone, loudspeaker)
- Outputs (console): 1 x Displayport, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, speakers)

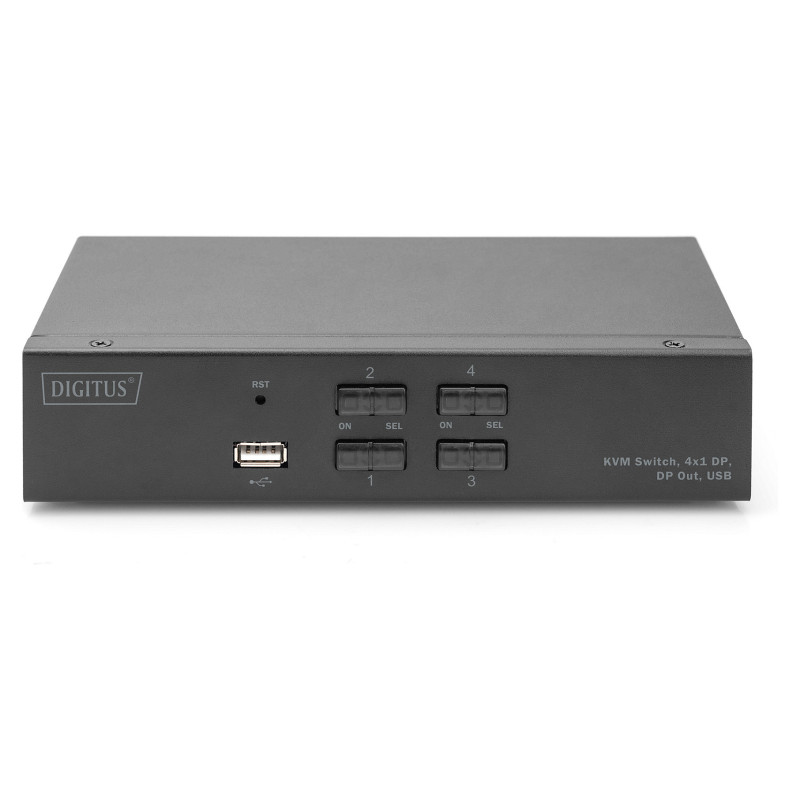

- Additional connection on the front: 1 x USB A for additional peripheral devices such as printers or USB sticks
- USB specification: USB 2.0 compliant (FullSpeed)
- Supported audio formats: Dolby True HD, DTS HD Master Audio
- Switching between the PCs: Switch on the front panel or hot keys
- Status LED on front panel shows current configuration
- The device is platform-independent and suitable for all operating systems

The DS-12891 is a desktop KVM switch that offers seamless switching between devices from DP+ Audio + MIC + USB devices. It is equipped with local control interfaces that allow you to easily manage and control all connected devices. The front USB interface provides easy access to connect USB peripherals such as keyboard, mouse, USB flash drive, printer and more. With support for hotkey switching and keypad switching, the DS-12891 is easy to use and allows you to switch between devices without interrupting your workflow. Whether you're a professional user working on multiple projects or a gamer who needs seamless control over your gaming setup, the DS-12891 is the perfect solution. Thanks to its sleek and compact design, the DS-12891 is ideal for a variety of settings, including home offices, gaming rooms and professional workspaces. If you're looking for a reliable and easy-to-use interface controller that meets your demanding requirements, the DS-12891 is the right choice.

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 4
USB 2.0 Type-B ports quantity: 4
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 2
Console DisplayPorts ports quantity: 1
USB 2.0 Type-A hub ports quantity: 1
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 4
Number of microphone inputs: 4
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 60 Hz
Feature: Plug and Play
Audio decoding technologies: DTS-HD Master Audio, Dolby TrueHD

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Hot keys

Power

Power source: DC
Input voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 202 mm
Depth: 110 mm
Height: 44 mm
Weight: 760 g

Packaging data

Package width: 210 mm
Package depth: 93 mm
Package height: 280 mm
Package weight: 150 g
Package type: Box

Packaging content

Cables included: KVM
Feature: Manual
