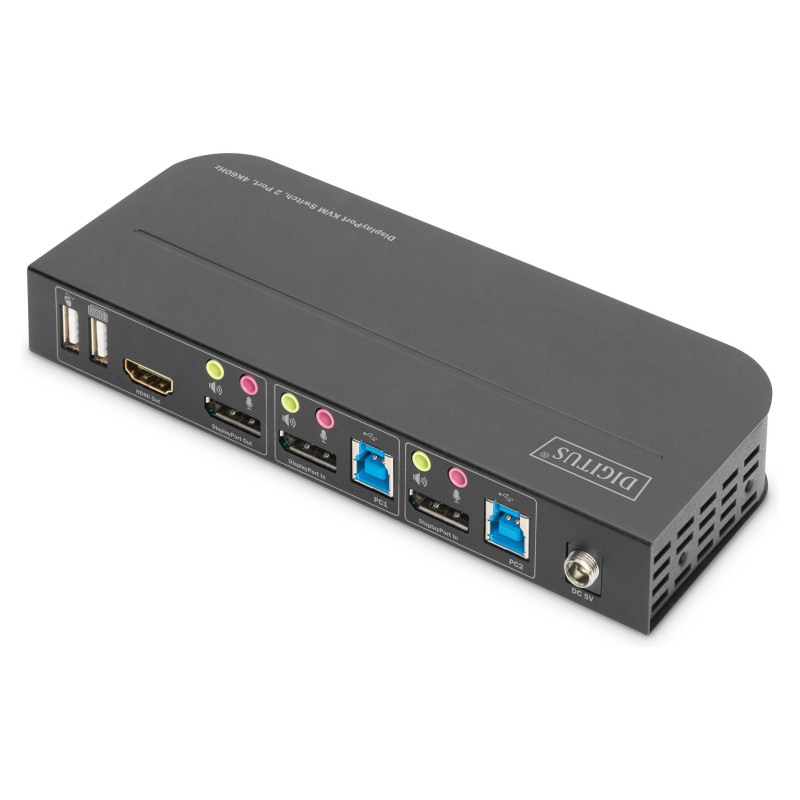

Digitus DS-12850 KVM switch

Digitus KVM Switch, 2-Port, 4K60Hz, 2 x DP in, 1 x DP/HDMI out. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. LED indicators: Status. Output voltage: 5 V, Output current: 3 A. Width: 178 mm, Depth: 75 mm, Height: 29 mm

Operate 2 PCs with one USB keyboard and mouse - switch between two computers by pressing a button or with the remote control

- Use a monitor, a mouse and a keyboard to operate two computers
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker
- Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
- External receiver for signals from remote control included
- Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync

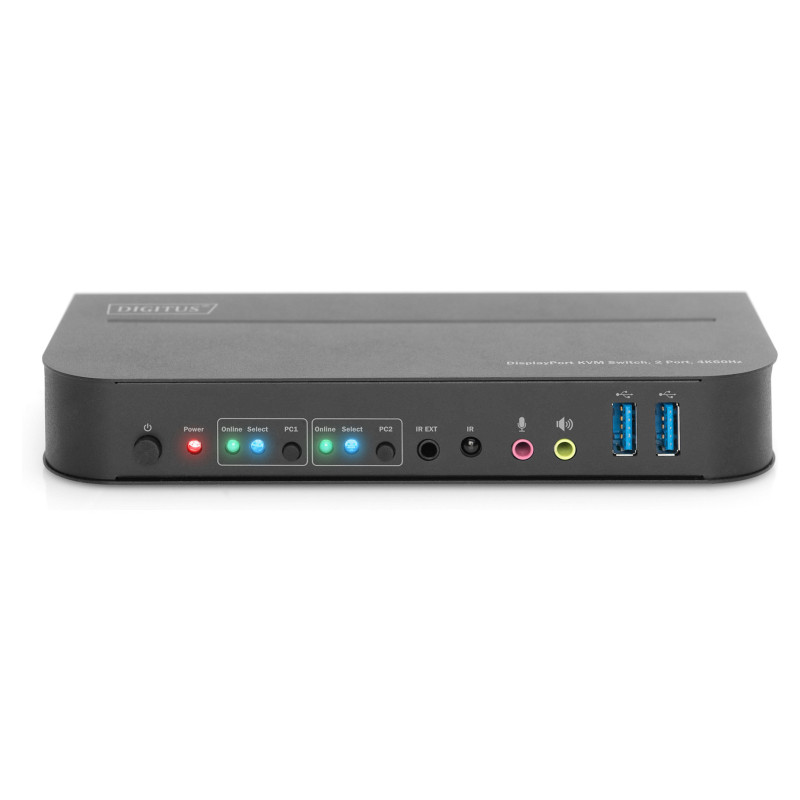

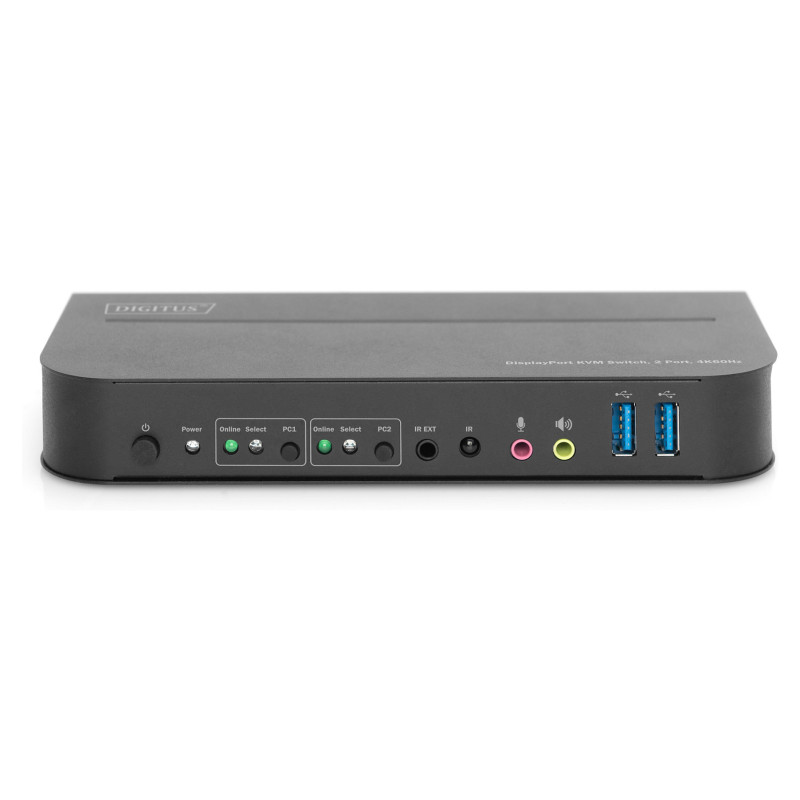

- LED status and functional displays on the front side
- Wall installation possible
- Plug and Play - no driver installation required

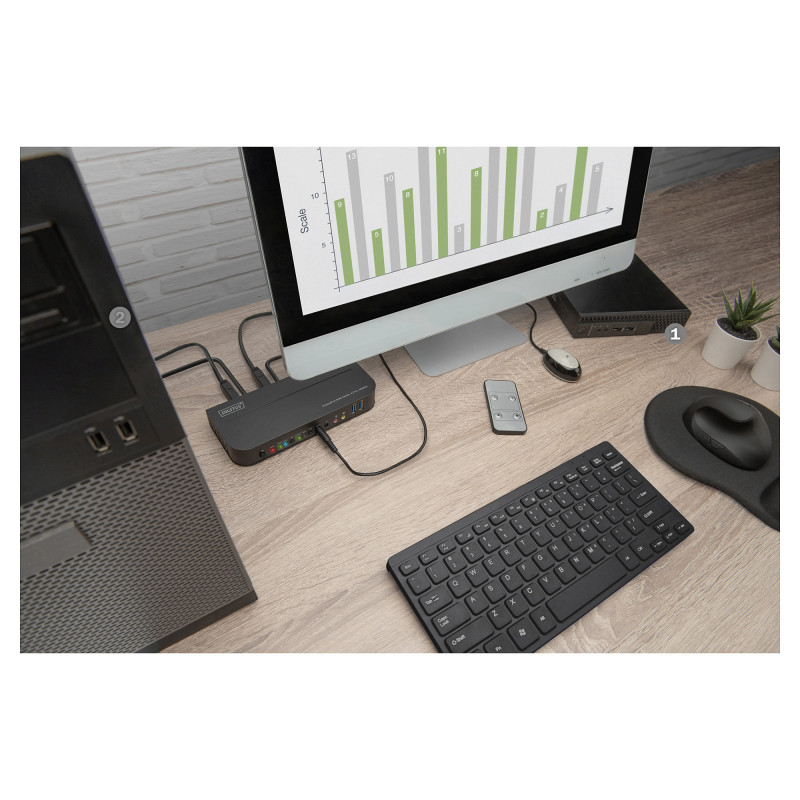

With the DIGITUS® 2-Port KVM Switch, you can operate two 4k-compatible PCs using a single USB keyboard and mouse. By pressing a button or using the remote control included in delivery, you can switch comfortably between the two PCs, sparing you the trouble of replugging all cables. Output to a monitor occurs either via the integrated HDMI® or the DisplayPortTM output. You can also switch between the audio signals for the microphone and speaker. In addition, two USB 3.0 ports are included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. If you place the KVM switch in an inaccessible location, you can use the IR receiver and connection cable included in delivery even if the KVM switch itself is not within the range of the remote control. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing and the option of wall mounting.

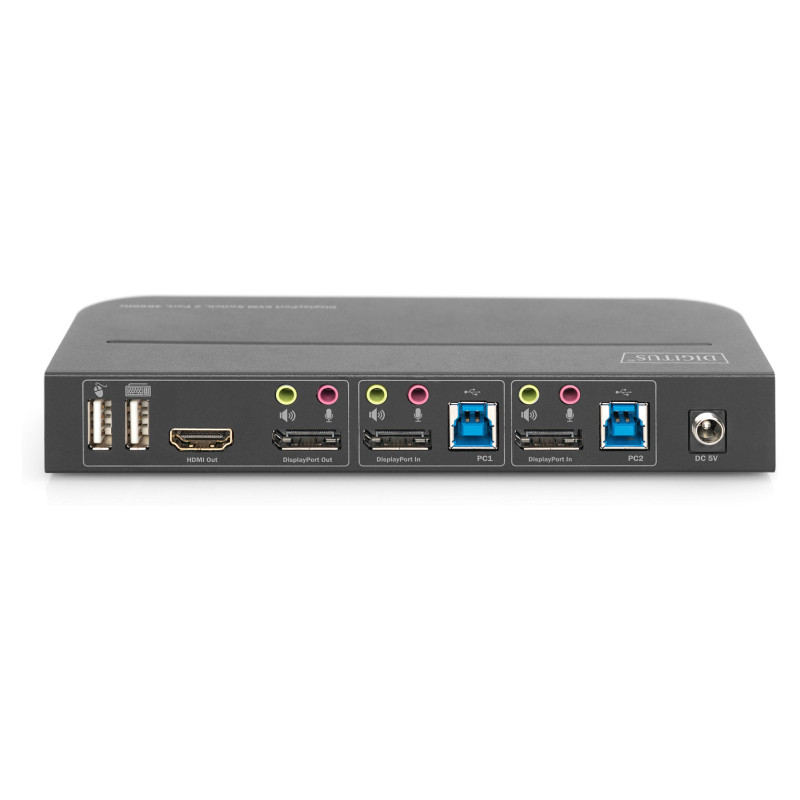

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 3
DisplayPort version: 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Feature: Audio connections
Headphone outputs: 3
Number of microphone inputs: 3
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Data transfer rate (max): 32.4 Gbit/s
Feature: HDCP
Feature: Plug and Play

Design

LED indicators: Status

Power

Output voltage: 5 V
Output current: 3 A

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Width: 178 mm
Depth: 75 mm
Height: 29 mm
Weight: 372.8 g

Packaging content

Cables included: DisplayPort, USB Type-A to USB Type-B
Feature: Manual
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 85176200
Country of origin: China
