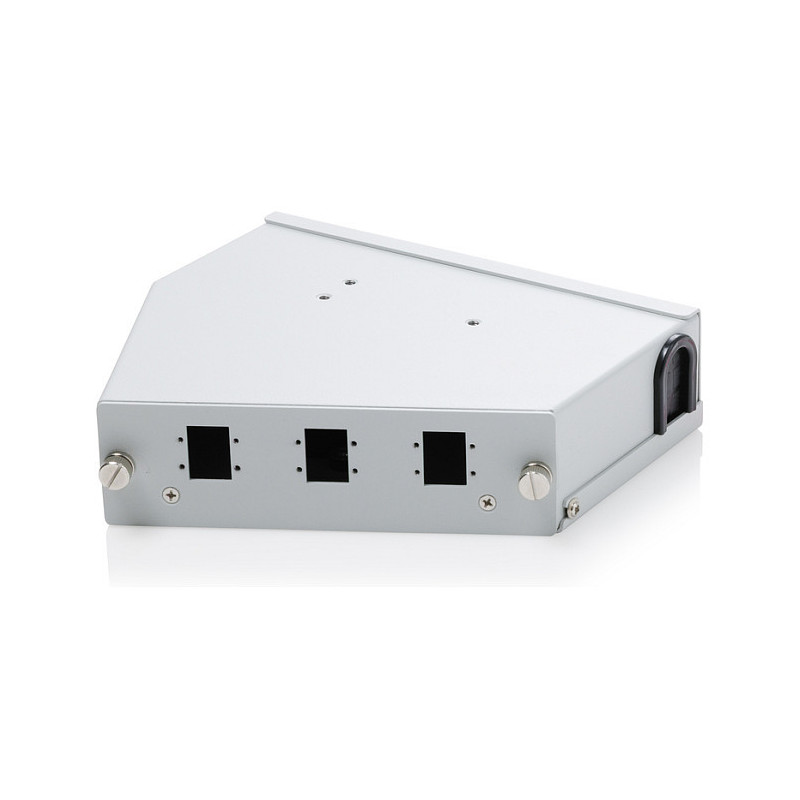

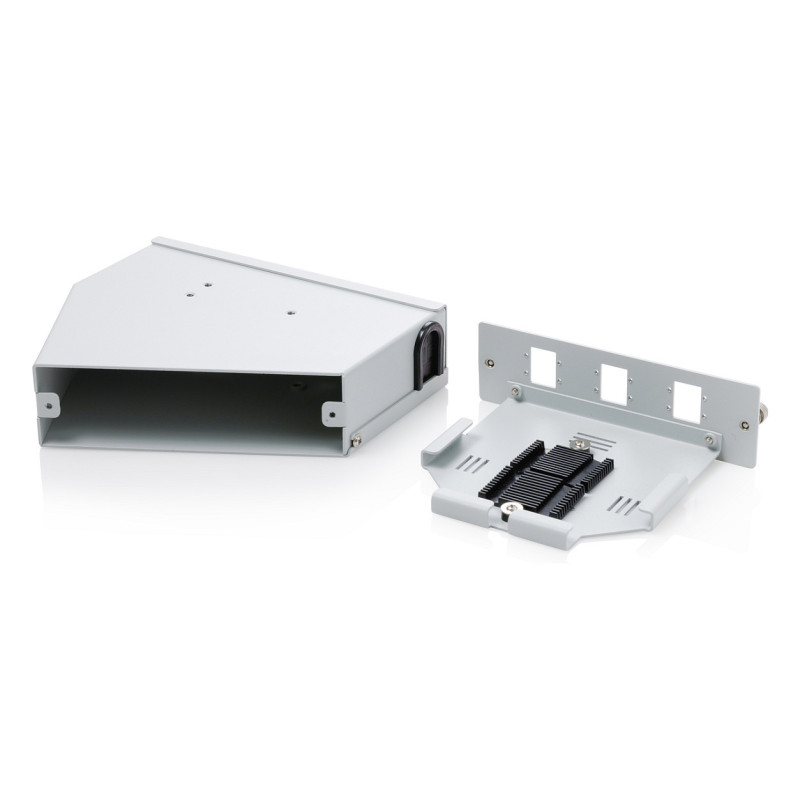

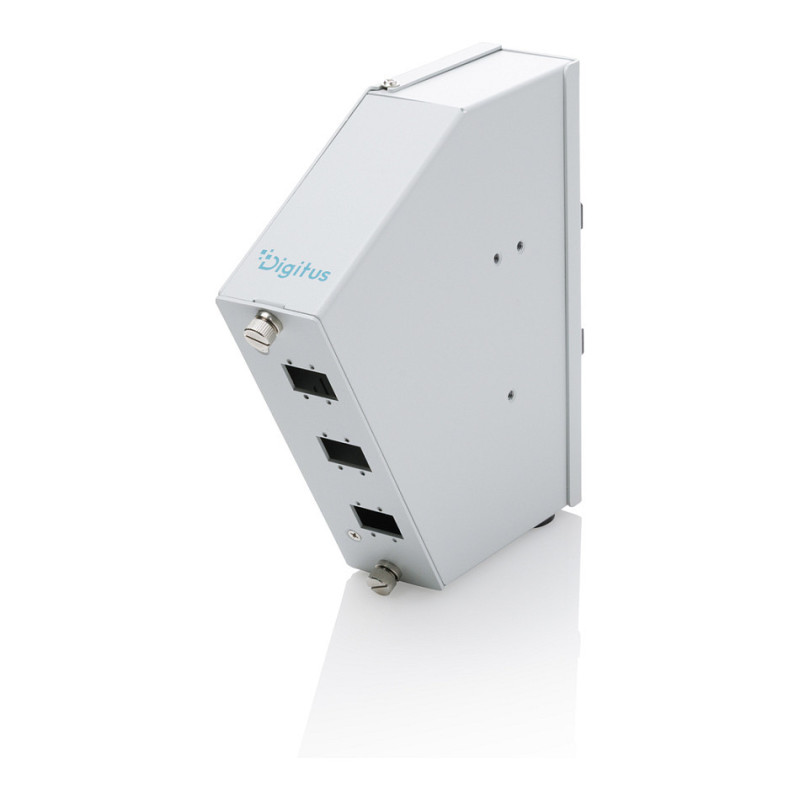

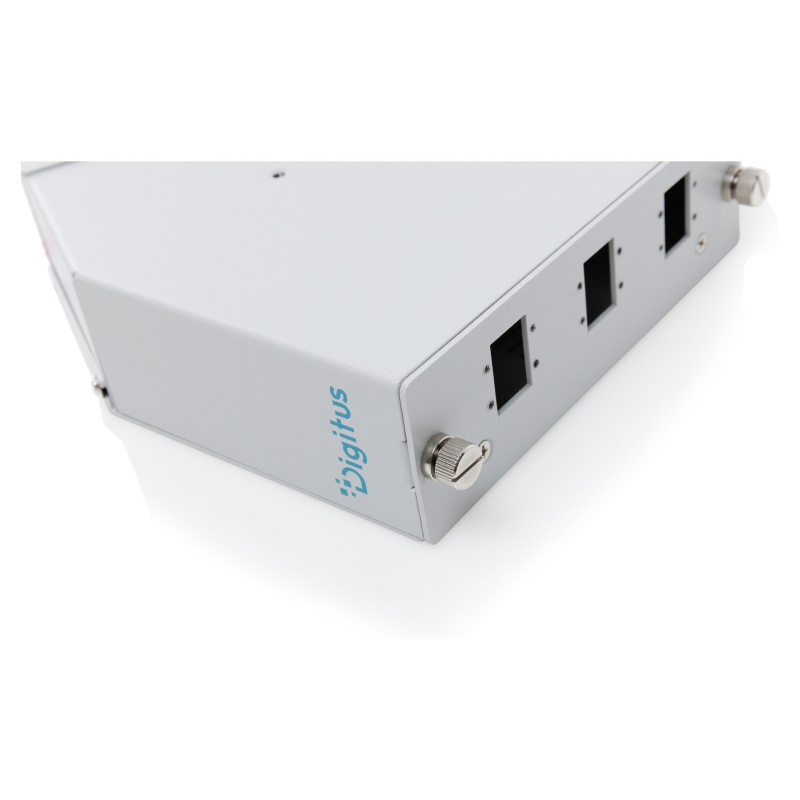

Digitus DN-96894 fibre optic splice enclosure

Digitus Fiber optic DIN rail splice distributor, angled, 6 SC SX/LC DX, grey. Product colour: Grey, Housing material: Aluminium, Cable diameter supported (min): 5 mm. Width: 180 mm, Depth: 170 mm, Height: 440 mm. Master (outer) case gross weight: 8.7 kg, Master (outer) case length: 260 mm, Master (outer) case height: 410 mm
The DIN rail distribution box is designed for efficient and structured fiber management in cabinets, industrial environments and building infrastructures. The angled design provides better accessibility and bend radius management in tight spaces.
- Angled design for easy access to the fiber optic connections

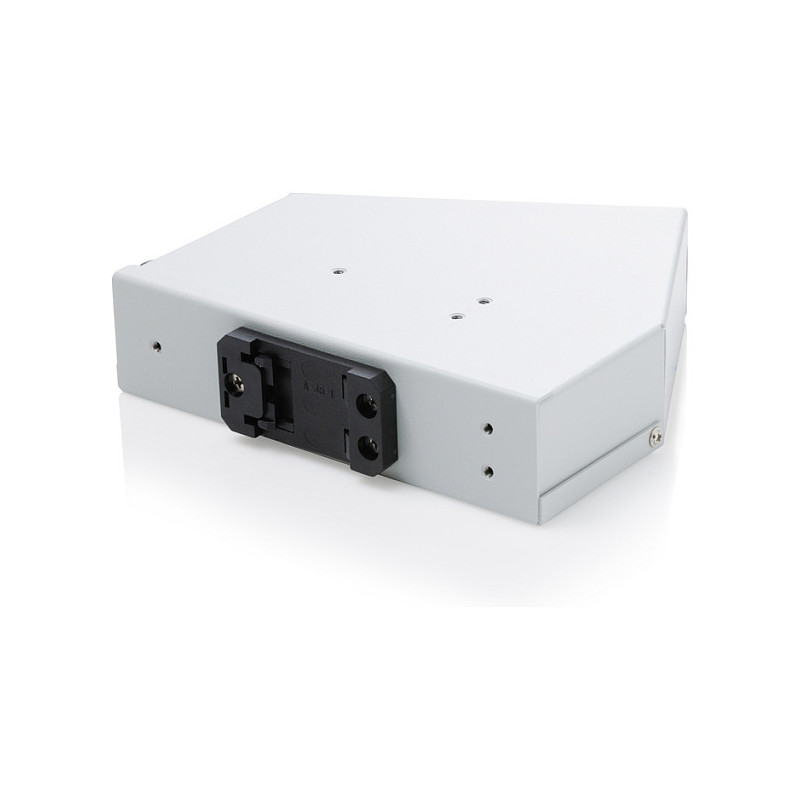

- Space-saving DIN rail mounting
- Reduced mechanical tension on fibres thanks to optimized cable routing
- Clean and safe fiber optic installation
- Ideal for FTTH, industrial networks and building infrastructures
The DIN rail splice distributor offers a robust and reliable solution for the structured termination and distribution of fiber optic connections. It was developed for mounting on standardized TS35 DIN rails and enables secure and efficient integration of fibre optic connections in cabinets and distribution enclosures. The angled front panel design significantly improves accessibility, especially in confined cabinet environments. This design facilitates installation while ensuring proper fiber routing and compliance with the required bending radius. Integrated cable entries ensure structured cable routing and reduce mechanical stress on the optical fibers. The module can be quickly and easily integrated into control cabinets, automation systems or industrial distribution systems without the need for additional mounting accessories. The design maximizes space efficiency and supports structured cable management in professional network installations.

Features

Product colour: Grey
Housing material: Aluminium
Cable diameter supported (min): 5 mm
Cable diameter supported (max): 1.4 cm

Weight dimensions

Width: 180 mm
Depth: 170 mm
Height: 440 mm
Weight: 360 g

Logistics data

Master (outer) case gross weight: 8.7 kg
Master (outer) case length: 260 mm
Master (outer) case height: 410 mm
Master (outer) case width: 870 mm
Products per master (outer) case: 20 pc(s)
