Digitus DN-651112 PoE adapter

Digitus Industrial Gigabit Ethernet PoE+ Injector, 802.3 af/at, 60 W. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Product colour: Black, LED indicators: PoE, Power, Power protection features: Over voltage, Short circuit. Power over Ethernet (PoE) voltage: 55 V, Output power: 60 W, Power consumption (max): 3 W. Weight: 300 g, Dimensions (WxDxH): 77 x 103 x 32 mm. Number of products included: 1 pc(s)
High Power output with 60 watts
- Industrial Gigabit PoE+ Injector 802.3 af/at
- Meets the 802.3af/at PoE standard
- 48~55V output voltage, 60W
The Digitus PoE Injector allows you to minimize cabling during installation of PoE-ready devices such as IP network cameras. Data supply and power supply to the devices is accomplished using a single Ethernet cable. This makes laying a separate power cable unnecessary and allows you to extend your network to places where there are no outlets or power cables. The Injector is fully compliant with the IEEE802.3at Ultra PoE standard and delivers an output power of 60 W.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE): Yes
Networking standards: IEEE 802.3at

Features

Product colour: Black
Wall mountable: Yes
LED indicators: PoE, Power
Power protection features: Over voltage, Short circuit

Ports interfaces

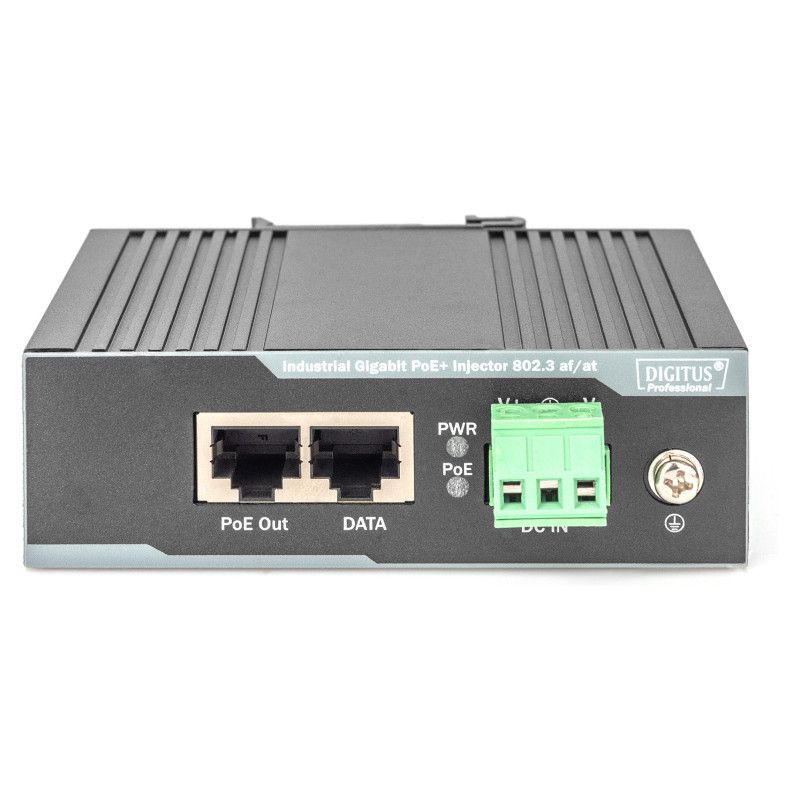

Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes

Power

Power over Ethernet (PoE) voltage: 55 V
Output power: 60 W
Power consumption (max): 3 W
Total Power over Ethernet (PoE) budget: 60 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight dimensions

Weight: 300 g
Dimensions (WxDxH): 77 x 103 x 32 mm

Packaging content

Number of products included: 1 pc(s)
Quick installation guide: Yes

Packaging data

Package width: 125 mm
Package depth: 165 mm
Package height: 50 mm
Package weight: 410 g
Package volume: 1031.25 cm³

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85044095
Master (outer) case width: 350 mm
Master (outer) case height: 330 mm
Master (outer) case gross weight: 390 g
Master (outer) case volume: 45045 cm³
Products per master (outer) case: 36 pc(s)
Country of origin: China
