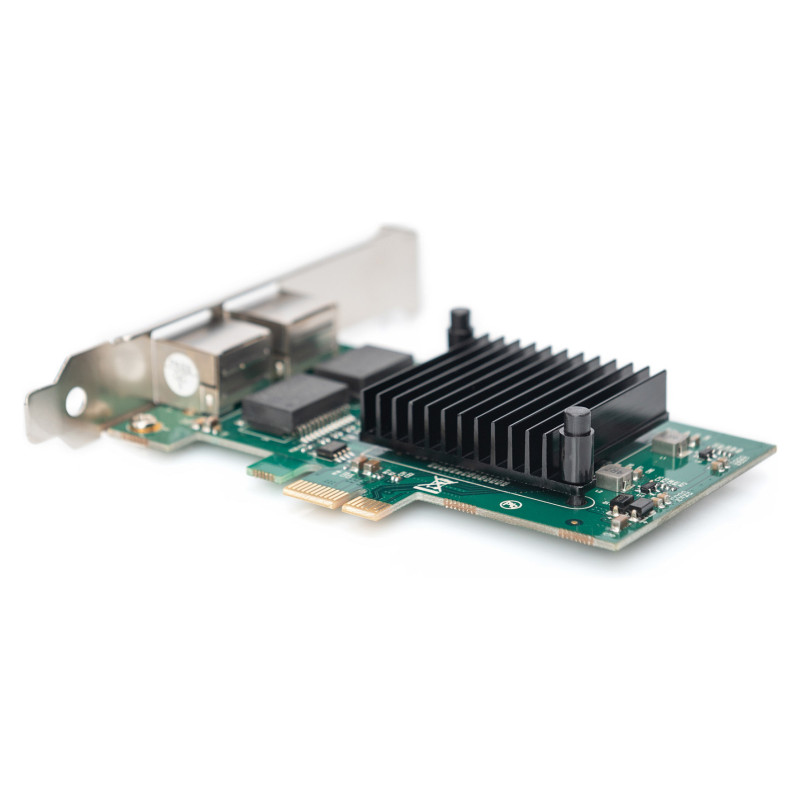

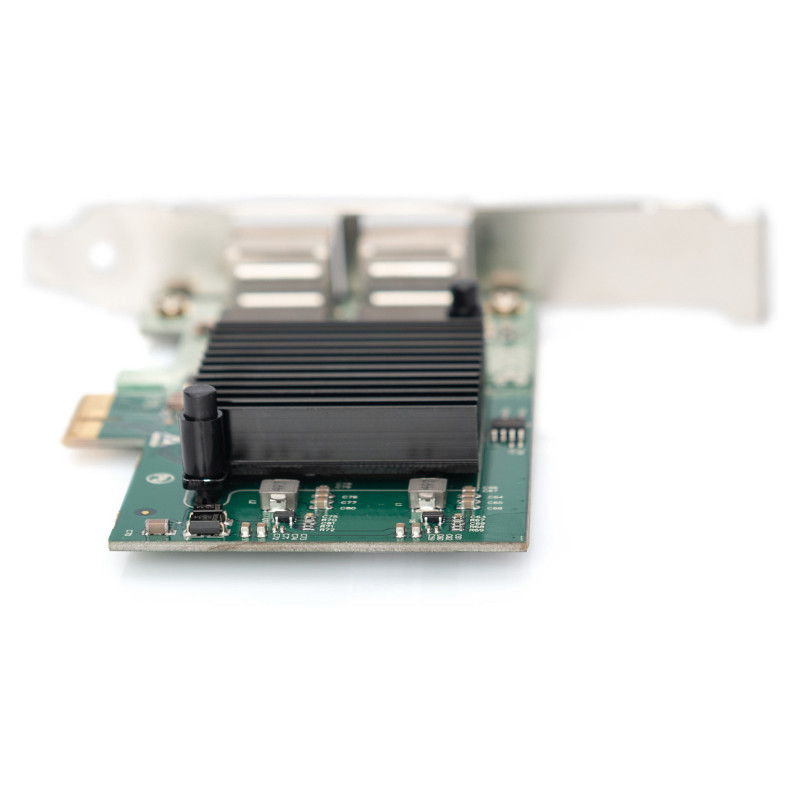

Digitus DN-10132 network card

Digitus Gigabit Ethernet PCI Express Card, 2-port. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

Expand your PC with PCIe slot by 2 Gigabit Ethernet ports with 1000 Mbit/s each

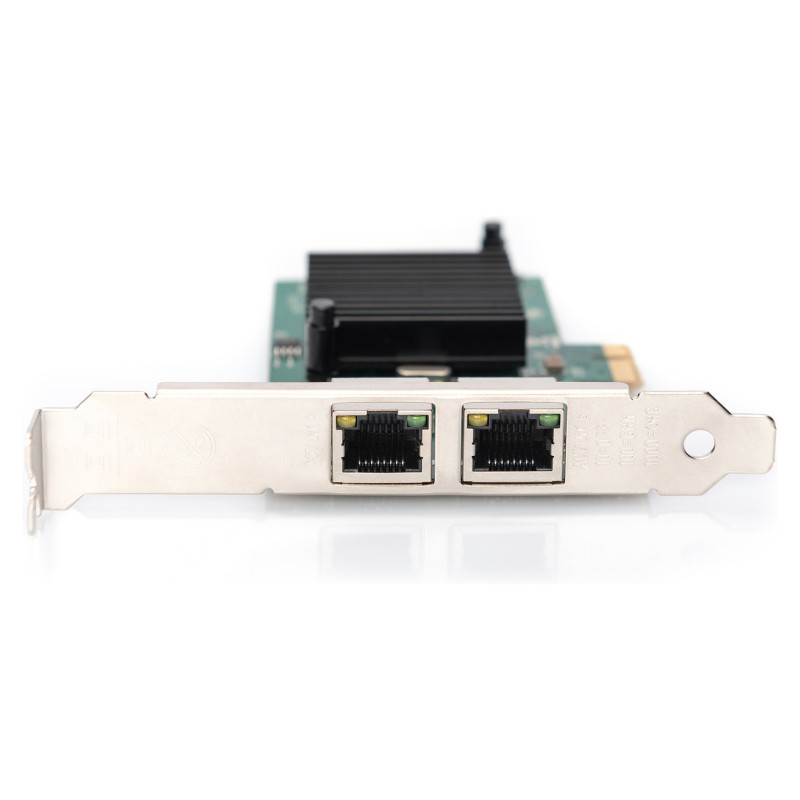

- Gigabit data transfer for each RJ45 port
- Suitable for standard slots & small PC case with low-profile slot
- Intel chipset 82575EB
- RSS, auto MDI/MDIX, IPv4, IPv6
- Jumbo Frames 9.5k, VMDq

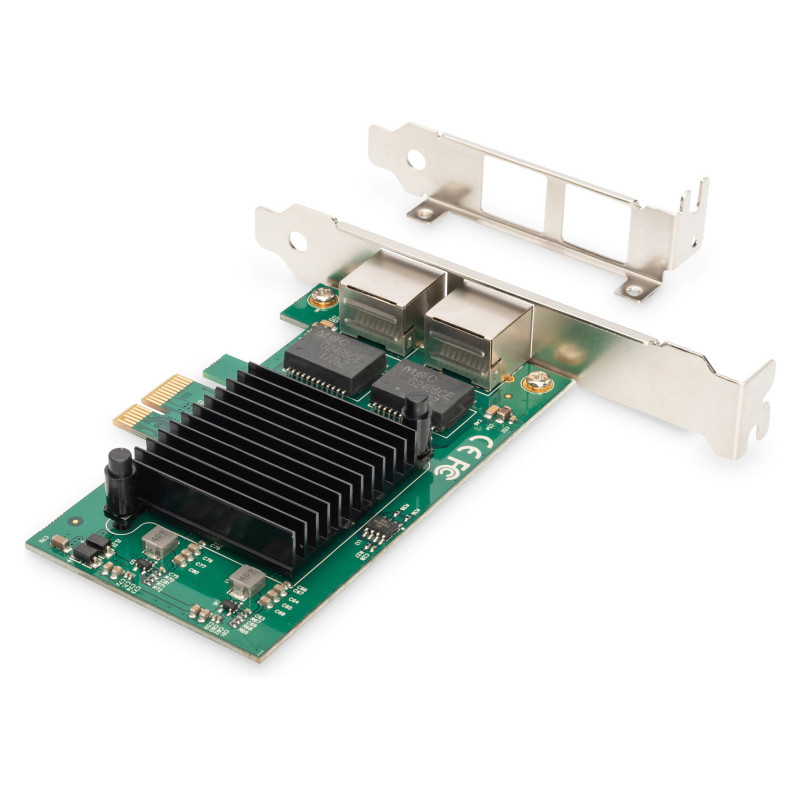

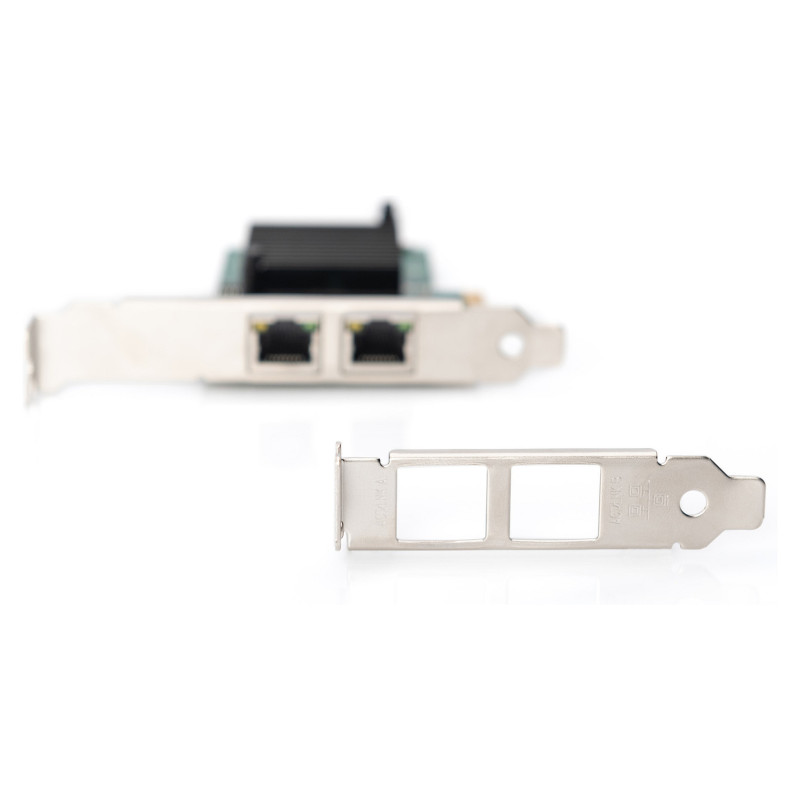

The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 . Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCIe
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Full duplex
LAN controller: Intel® 82575EB

Design

Component for: Server
Feature: Internal
Chipset: Intel® 82575EB
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported: Yes
Other operating systems supported: FreeBSD, VMware vSphere ESXi
Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85176990
