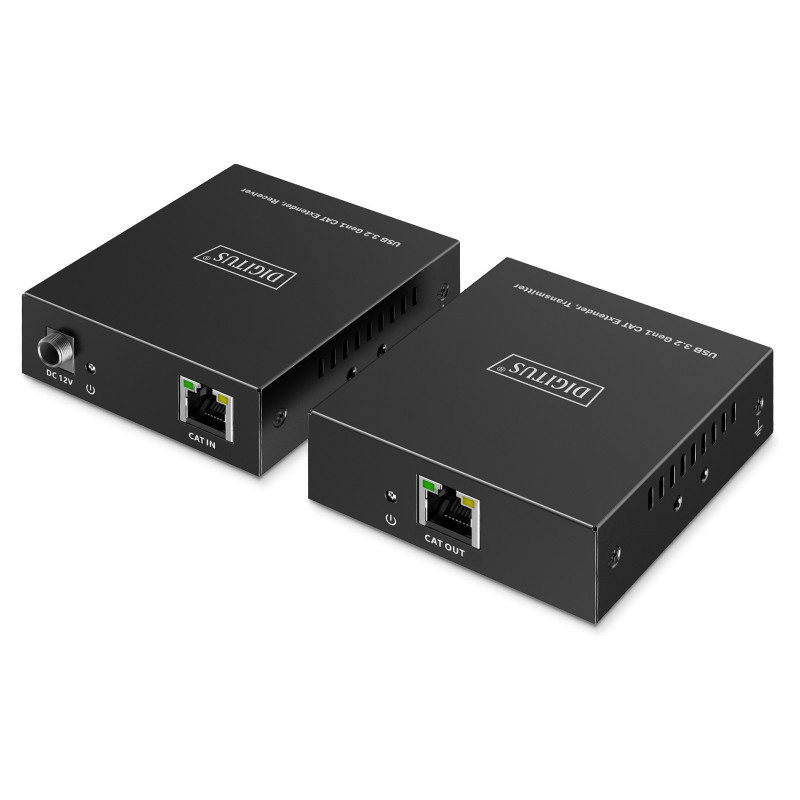

Digitus DA-73121 console extender

Digitus USB 3.2 Gen1 CAT Extender, 5 Gbps, 4 ports: 3x USB-A / 1x USB-C, 100m. Width: 76 mm, Depth: 85 mm, Height: 25 mm. Cables included: DC, USB Type-A to USB Type-C, USB Type-C. Power source type: DC, Power consumption (max): 3.5 W, Power consumption (typical): 2.5 W

Overcome the limitations of USB cable lengths and reliably connect up to four USB devices over distances of up to 100m with a CAT 6A (or higher) cable. The extender offers high data rates and is ideal for offices, industry and conferences.

- USB extension up to 100m via CAT 6A (or higher)

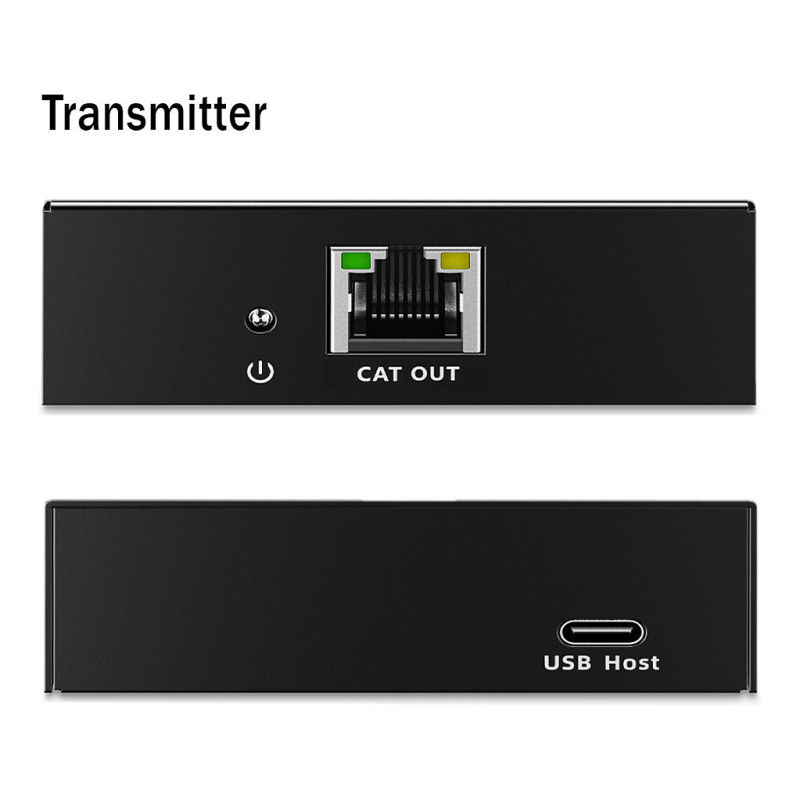

- Transmitter unit is supplied with power via the host PC - No additional power supply unit required

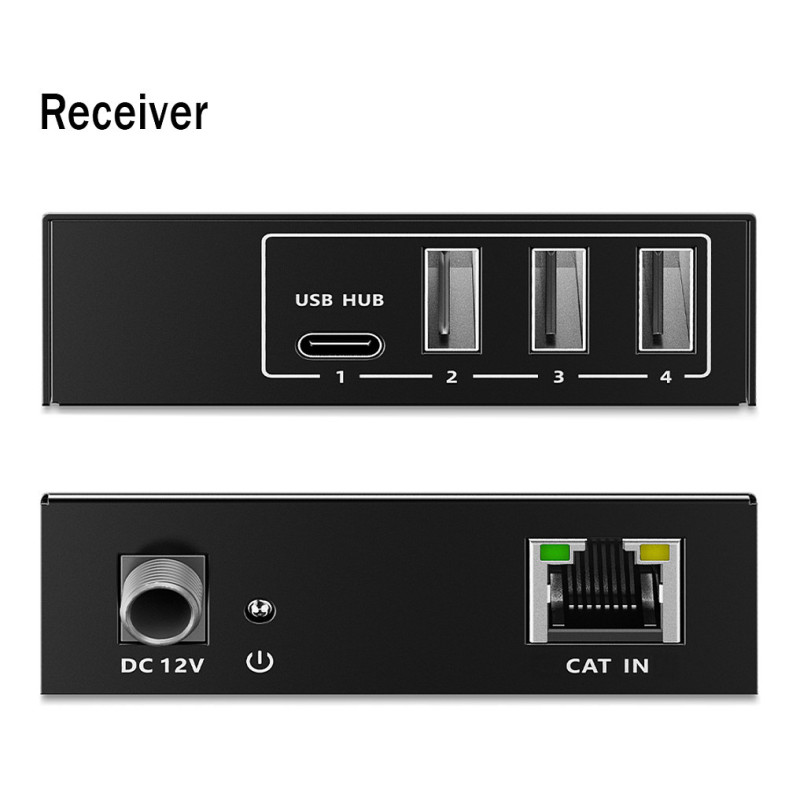

- Multifunctional USB hub: Supports the connection of up to four USB devices simultaneously (3x USB-A 3.2 Gen1, 1x USB-C 3.2 Gen1)
- USB 3.2 Gen1: Supports transfer rates of up to 5 Gbps, ideal for numerous USB devices such as printers, cameras, hard disks, keyboards and more
- Safe protection: integrated ESD protection (up to 8kV) and overvoltage protection for your devices
- Plug & Play: No software required. Simply connect and use immediately
- Robust and versatile: ideal for demanding environments such as industry, large offices or security systems thanks to its metal housing

This USB extender provides a reliable solution to transmit USB signals over distances of up to 100 meters using a CAT 6A (or higher) network cable (not included) without signal loss. Ideal for use in large offices, conference rooms, surveillance systems or industrial environments where longer USB connections are required. The USB 3.2 Gen1 standard enables transfer rates of up to 5 Gbps. Nothing stands in the way of a fast and smooth connection of various USB devices such as cameras, hard disks, printers, scanners, keyboards, mice and USB sticks. Thanks to the support of USB 2.0 and 1.1, older devices can also be integrated without any problems. The extender offers maximum flexibility thanks to its four USB inputs (3x USB-A 3.2 Gen1 and 1x USB-C 3.2 Gen1), allowing multiple devices to be operated simultaneously - ideal for working environments with different peripherals. The Power-over-Cable (PoC) function ensures that only the receiver requires an external power source, simplifying installation and eliminating cable clutter. The Plug & Play design enables easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of traditional USB cables - with this Digitus USB 3.2 Gen1 Extender you can place your USB devices where you need them without compromising on performance.

Technical details

Type: Console transmitter & receiver
Data transfer rate: 5000 Mbit/s
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Maximum transfer distance: 100 m
Product colour: Black
I/O ports: 1x USB 3.0 C in1x USB 3.0 C Out
Housing material: Aluminium, Metal
LED indicators: Yes
Cable types supported: Cat6a
Feature: Plug and Play

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
RJ-45 ports quantity: 2
Feature: DC-in jack

Weight & dimensions

Width: 76 mm
Depth: 85 mm
Height: 25 mm
Transmitter weight: 168 g
Receiver weight: 178 g
Package width: 149 mm
Package depth: 199 mm
Package height: 80 mm
Package weight: 900 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Packaging content

Cables included: DC, USB Type-A to USB Type-C, USB Type-C
Feature: Mounting kit
Feature: Manual
Feature: Quick start guide

Power

Power source type: DC
Power consumption (max): 3.5 W
Power consumption (typical): 2.5 W
Input voltage: 12 V
Input current: 3 A
Output voltage: 12 V
Output current: 3 A
