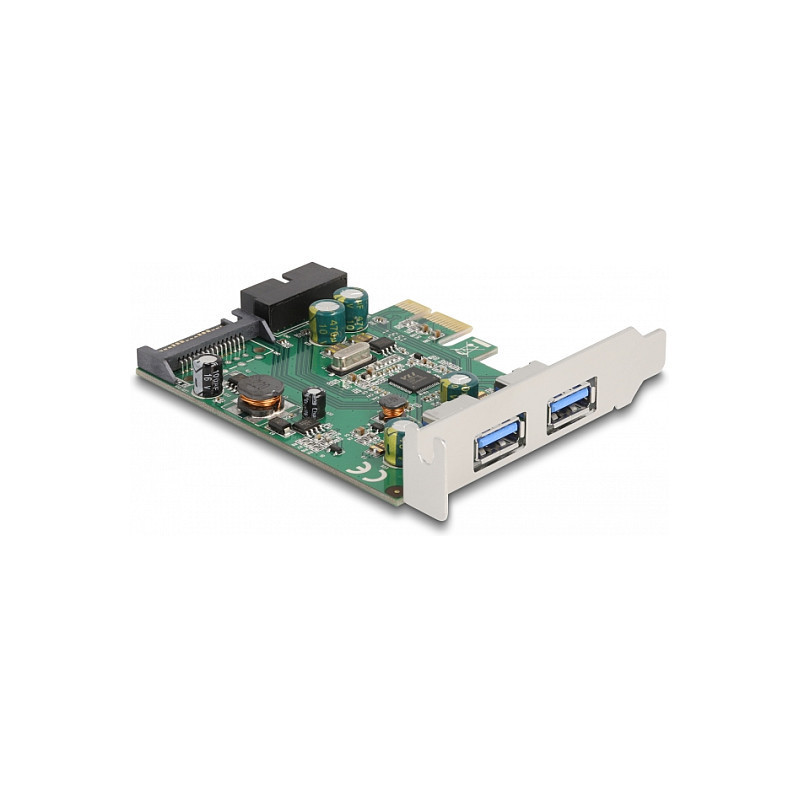

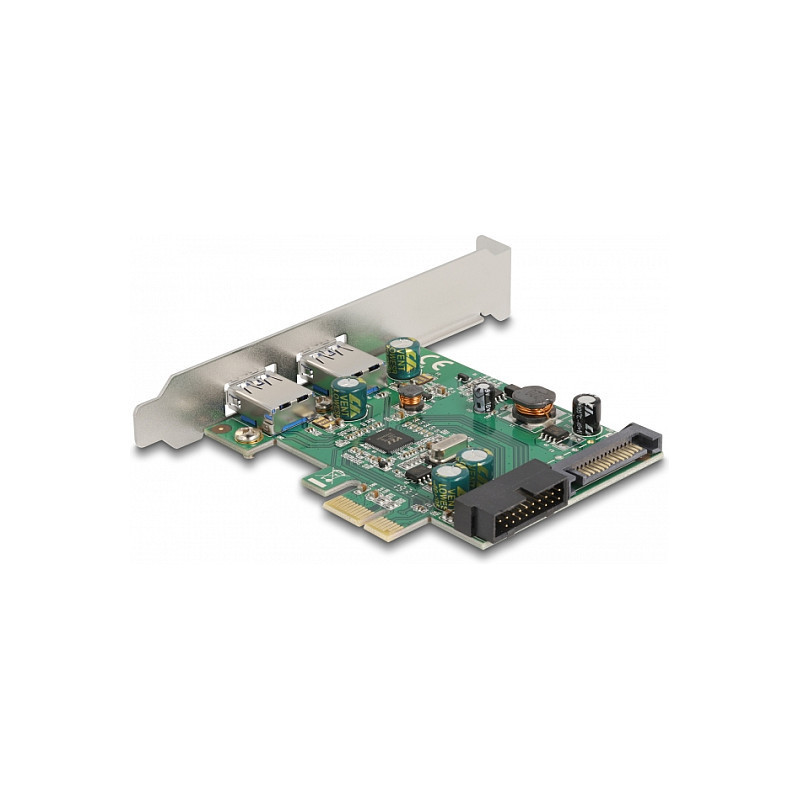

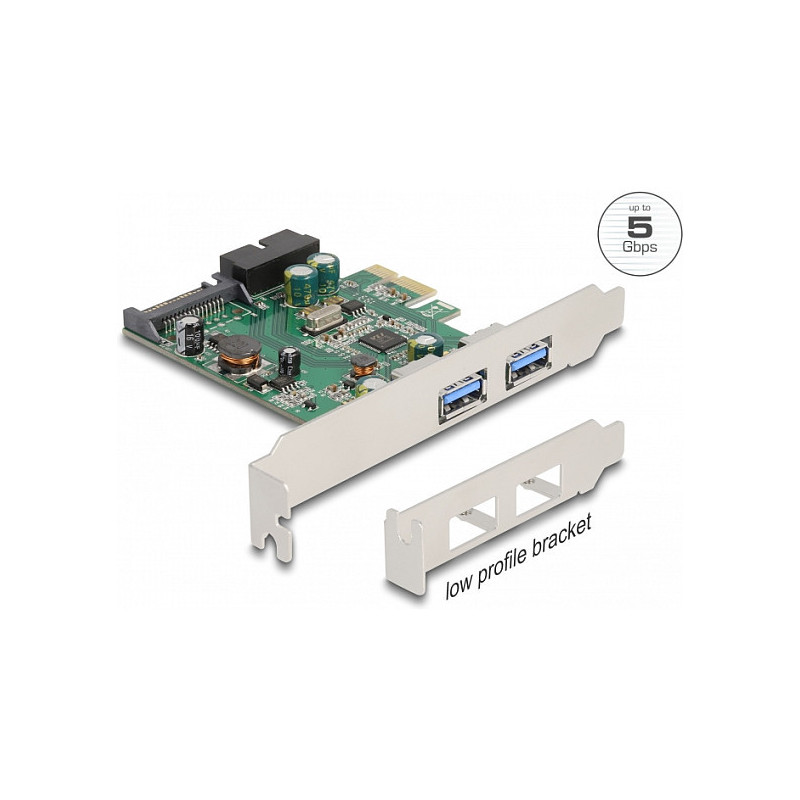

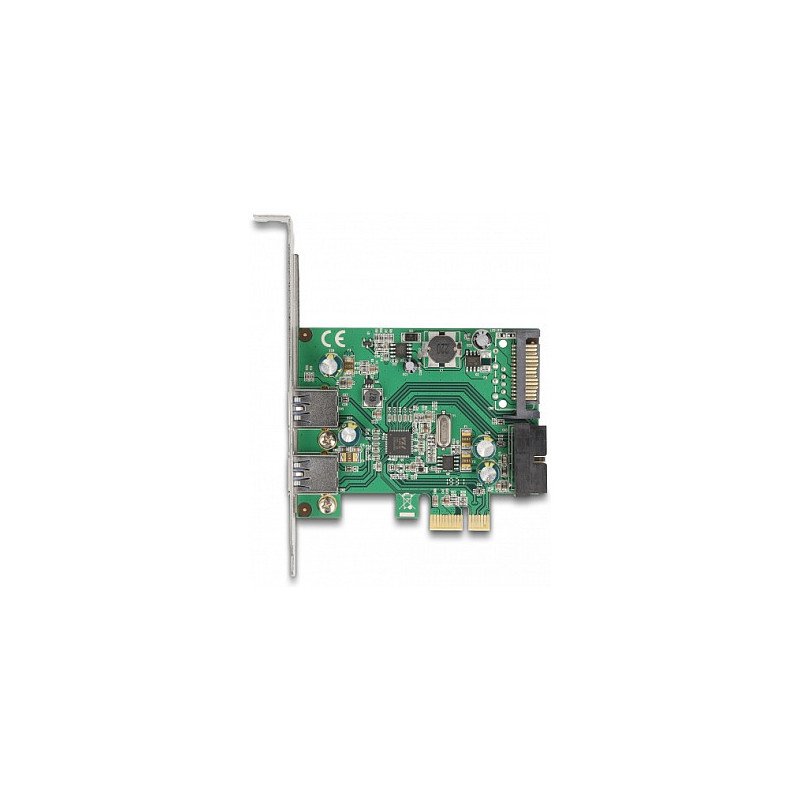

DeLOCK 90096 interface cards / adapter

DeLOCK PCI Express x1 Card to 2 x external USB 3.2 Gen 1 Type-A + 1 x internal 19 pin USB pin header male - Low Profile Form Factor. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Low-profile. Product colour: Silver, Purpose: PC. Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64. Quantity per pack: 1 pc(s), Package type: Hanging box

This PCI Express card by Delock expands the PC by two external USB 3.2 ports as well as one internal 19 pin USB pin header male port. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
SATA power connector type: SATA 15-pin
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1

Design

Feature: Internal
Product colour: Silver
Purpose: PC

Features

Data transfer rate (max): 5 Gbit/s
Feature: UASP support

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Packaging data

Quantity per pack: 1 pc(s)
Feature: Mounting brackets included
Feature: Manual
Package type: Hanging box
