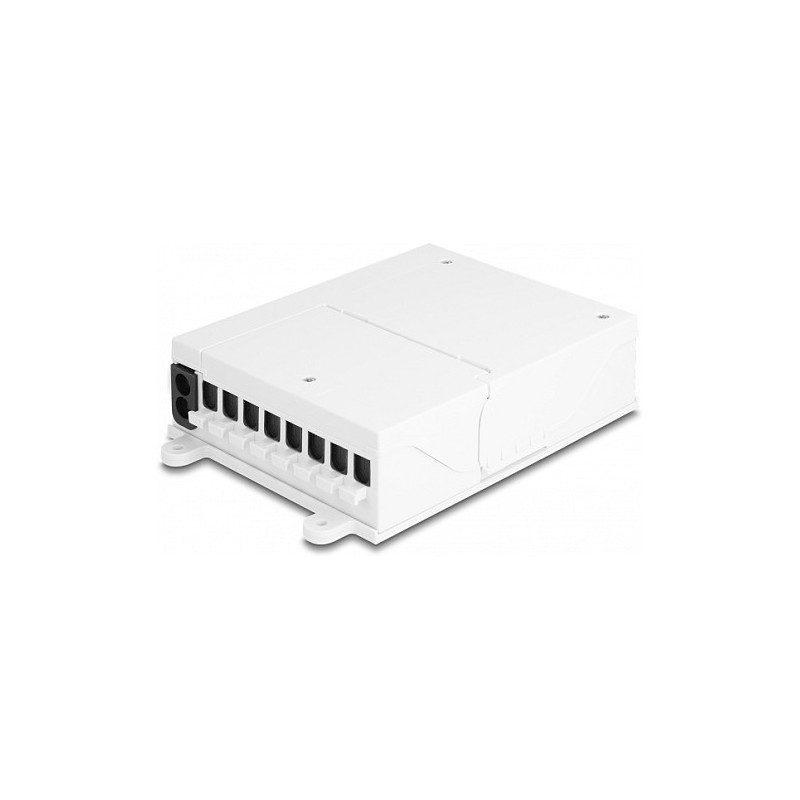

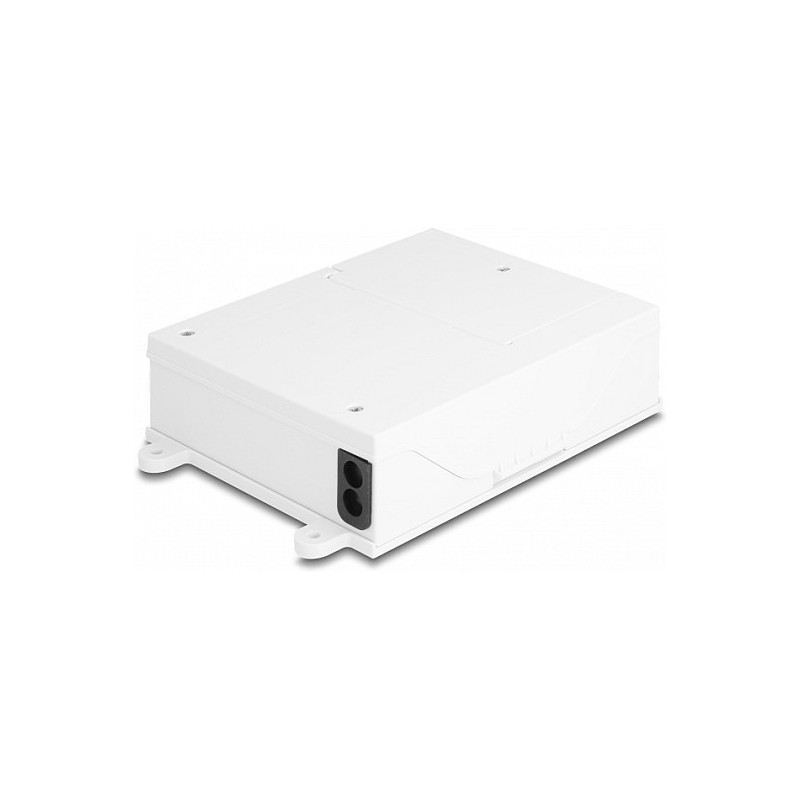

DeLOCK 87949 fibre optic splice enclosure

DeLOCK Fiber Optic Distribution Box FTTH indoor for wall mounting 8 port white. Product colour: White, Housing material: Acrylonitrile butadiene styrene (ABS). Width: 127 mm, Depth: 193 mm, Height: 46 mm

This distribution box by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The distribution box can accommodate up to eight SC Simplex or LC Duplex couplings.

Separate splice area and cable connection

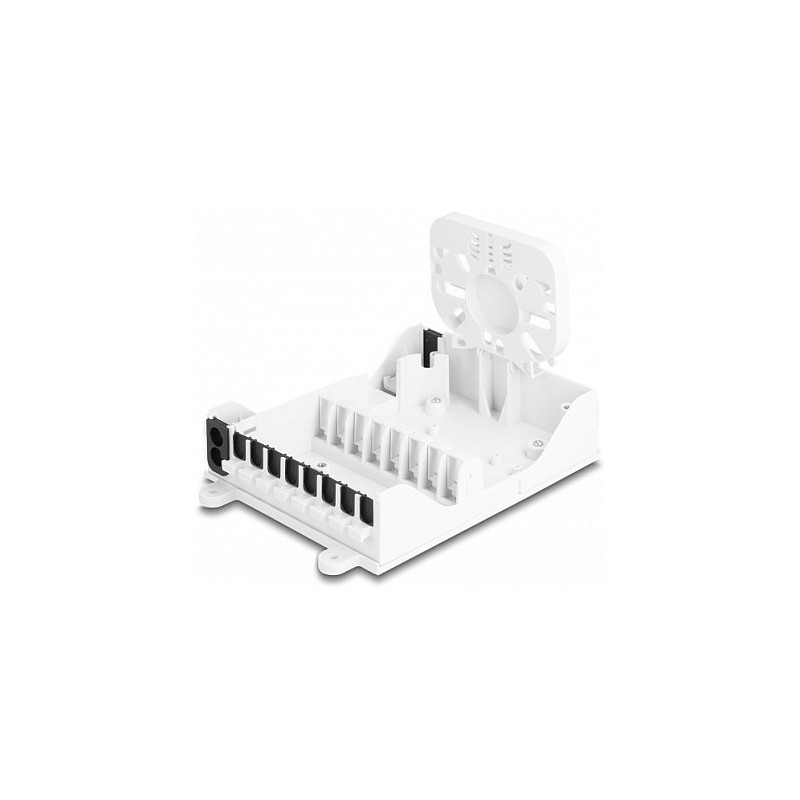

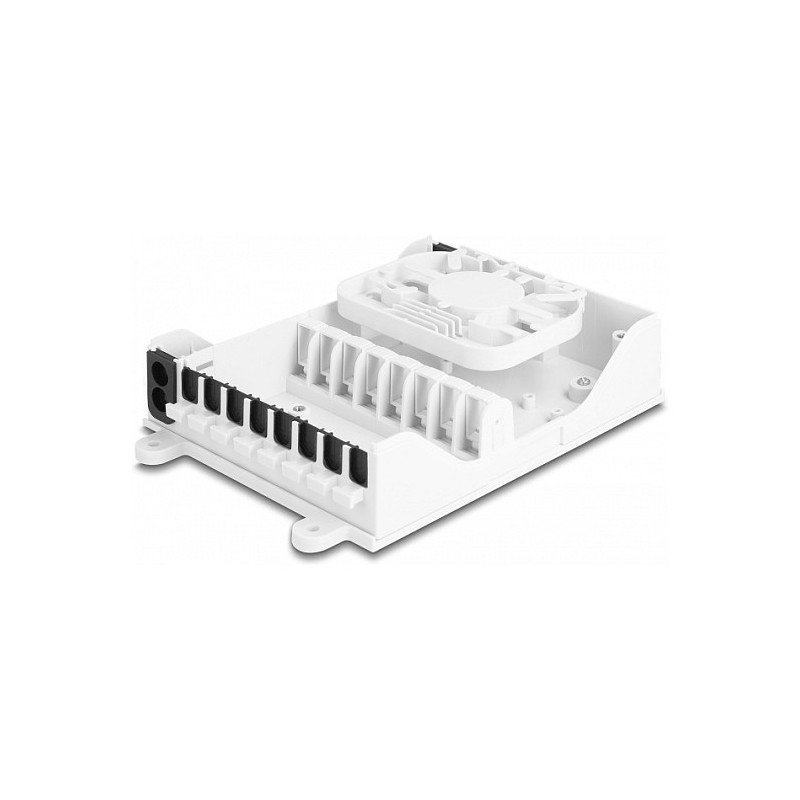

The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals. The splice area and the cable connection at the distribution box are separated to avoid crossovers.

Various applications
The distribution box is used in optical telecommunication networks, LAN, CATV, FTTH networks, as well as PON and G-PON.

Features

Product colour: White
Housing material: Acrylonitrile butadiene styrene (ABS)
Feature: Wall mountable
Feature: Suitable for indoor use
Number of splice trays supported (max): 8
Number of fibres supported (max): 8

Weight & dimensions

Width: 127 mm
Depth: 193 mm
Height: 46 mm
