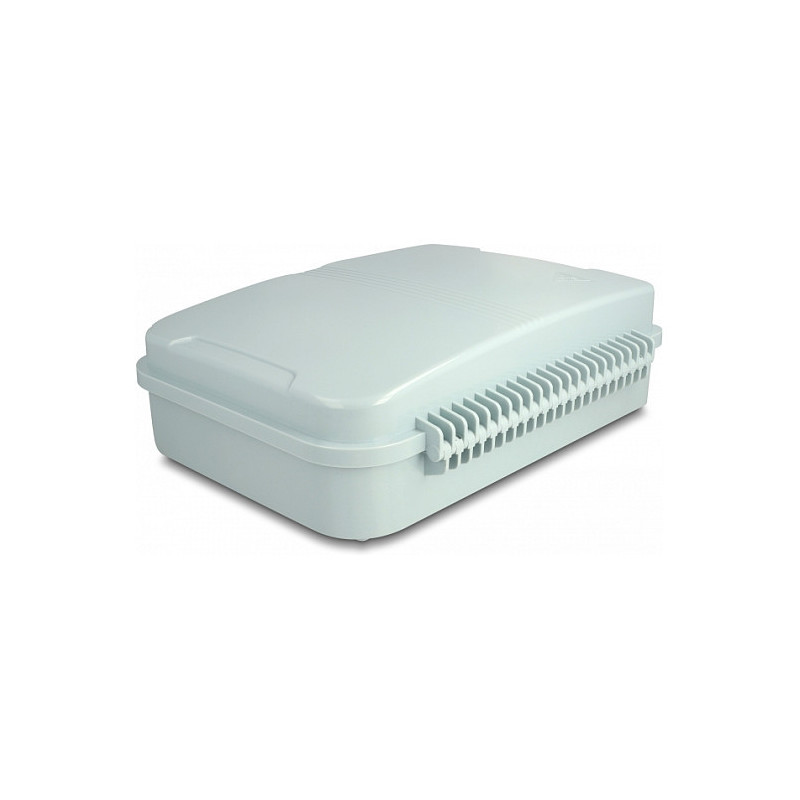

DeLOCK 87903 fibre optic splice enclosure

DeLOCK Fiber Optic Distribution Box for indoor and outdoor IP65 waterproof lockable 24 port grey. Product colour: Grey, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP65. Width: 270 mm, Depth: 330 mm, Height: 100 mm

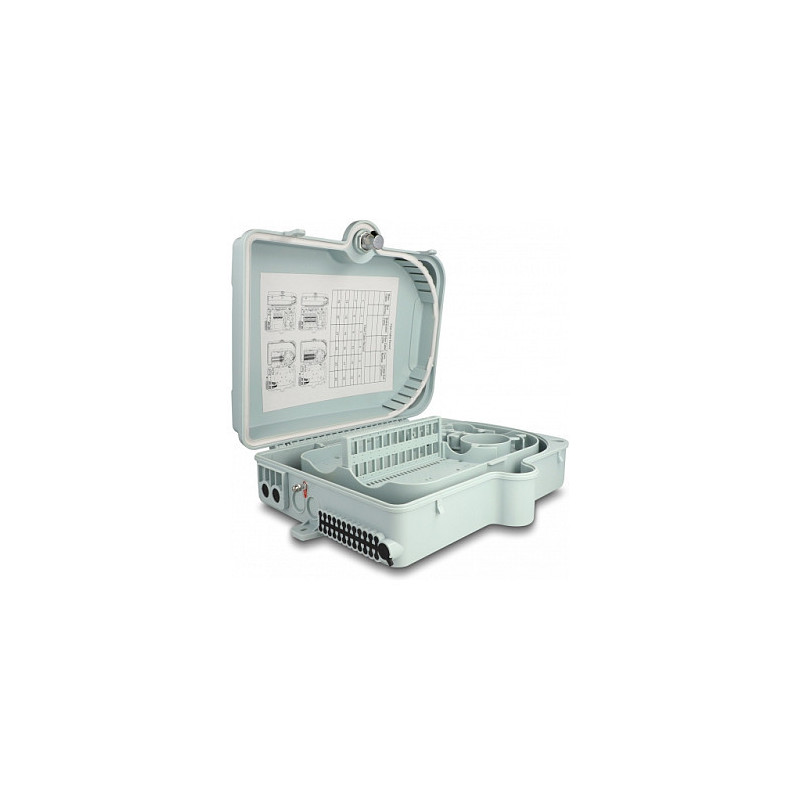

This lockable distribution box by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The distribution box can accommodate up to 24 SC Simplex or LC Duplex couplings.

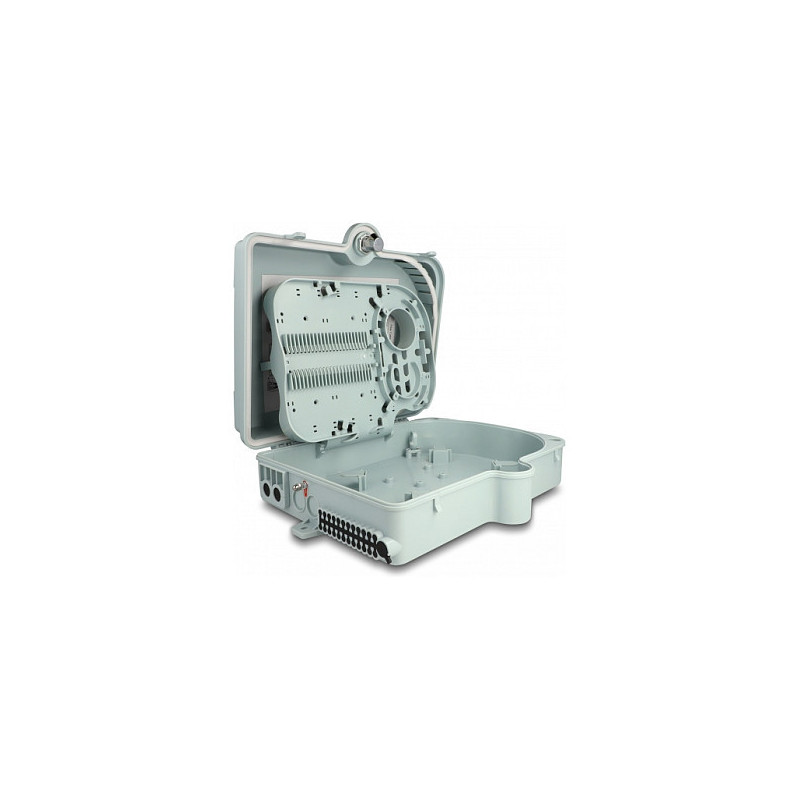

With splice cassette
The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals. In addition, the cassette is perfect for mechanical splicing and fusion splicing.

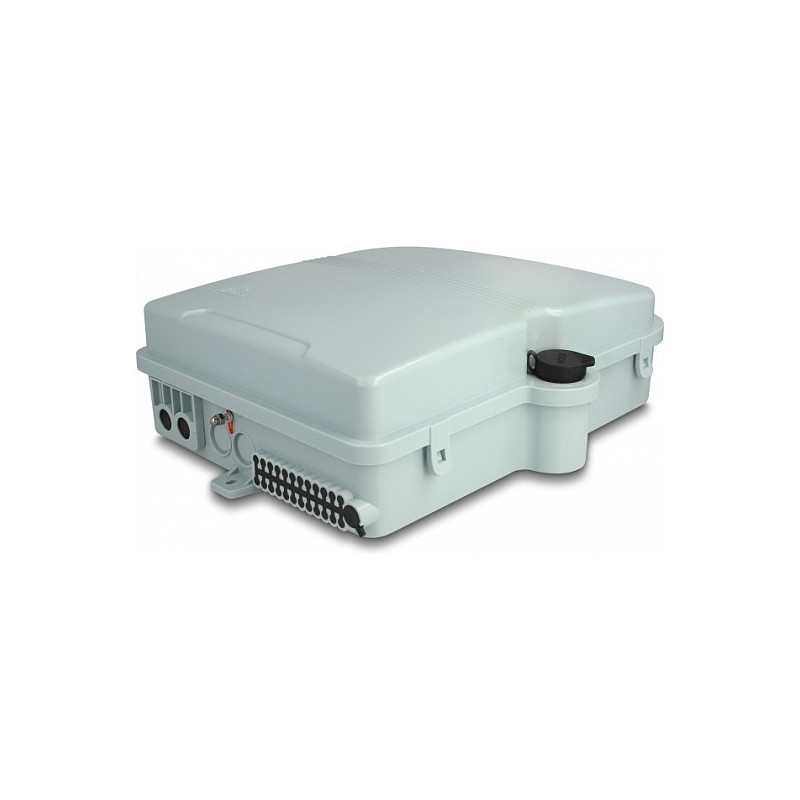

IP65 dust and waterproof
The distribution box has two cable entries and 25 cable outlets that are protected with a rubber seal. The seals provide a watertight seal to the housing for the feed-through of fiber optic cables indoor and outdoor. A gland can also be inserted on the front side of the housing to feed through another cable.

Features

Product colour: Grey
Housing material: Acrylonitrile butadiene styrene (ABS)
Feature: Wall mountable
Feature: Suitable for indoor use
Feature: Suitable for outdoor use
Number of splice trays supported (max): 24
Number of fibres supported (max): 24
International Protection (IP) code: IP65

Weight & dimensions

Width: 270 mm
Depth: 330 mm
Height: 100 mm
