DeLOCK 87902 fibre optic splice enclosure

DeLOCK Fiber Optic Distribution Box for indoor and outdoor IP65 waterproof lockable 8 port white. Product colour: White, Housing material: Acrylonitrile butadiene styrene (ABS), Cable diameter supported (max): 1.2 cm. Width: 195 mm, Depth: 243 mm, Height: 55 mm

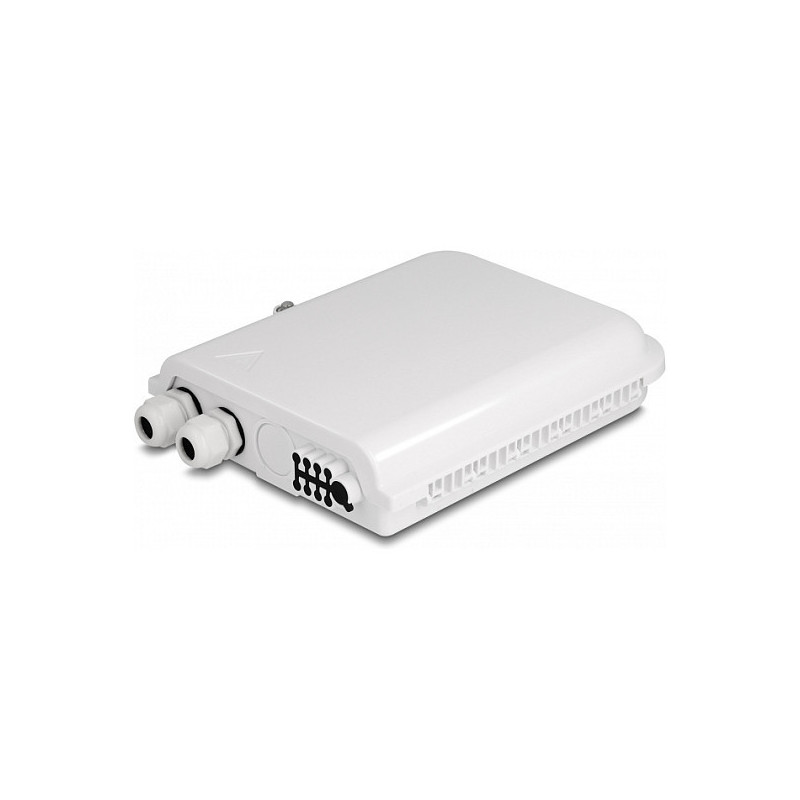

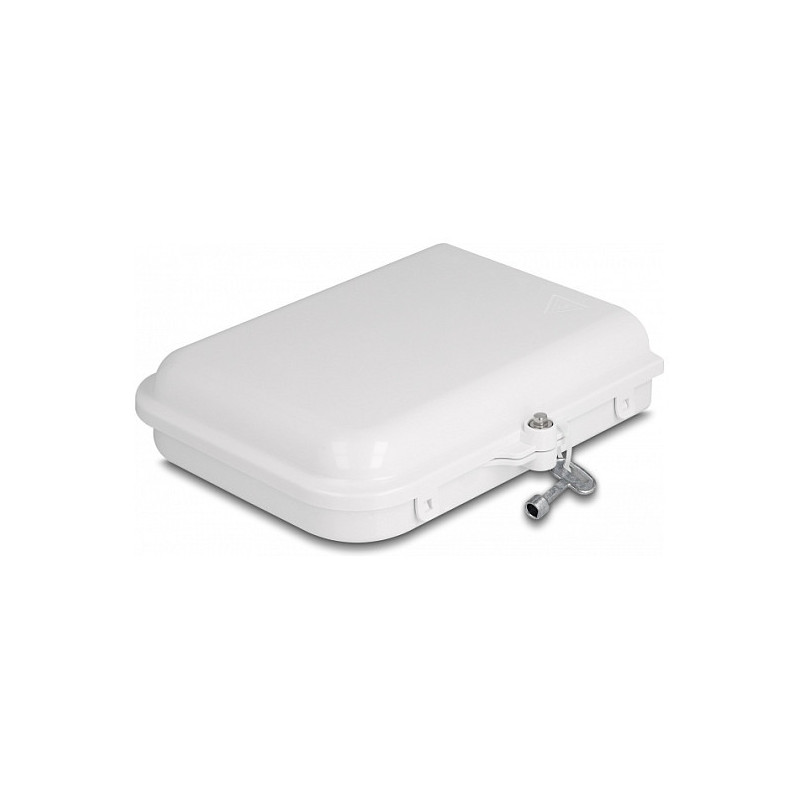

This lockable distribution box by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The distribution box can accommodate up to eight SC Simplex or LC Duplex couplings.

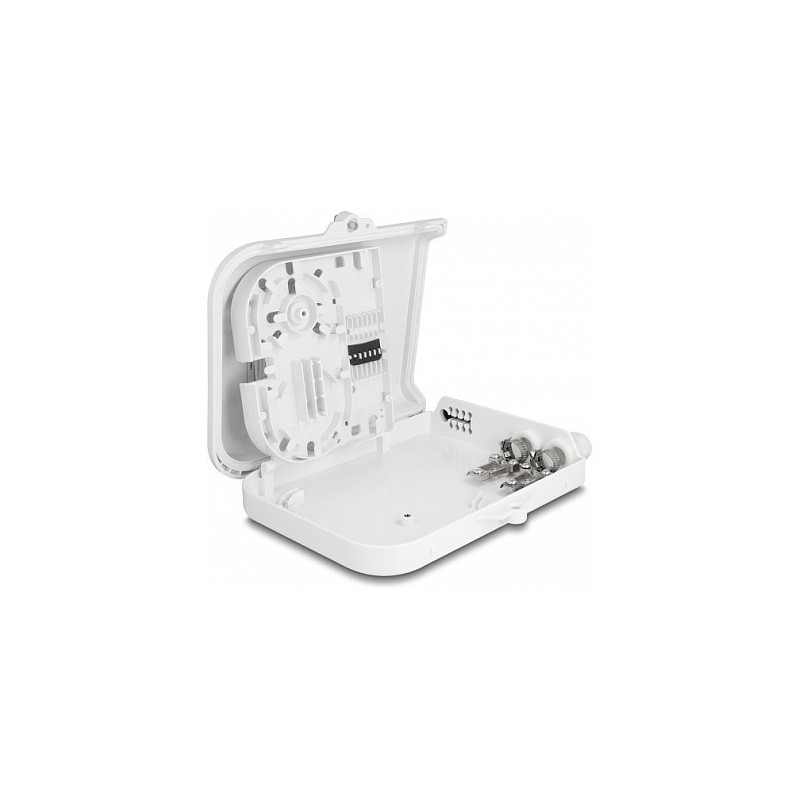

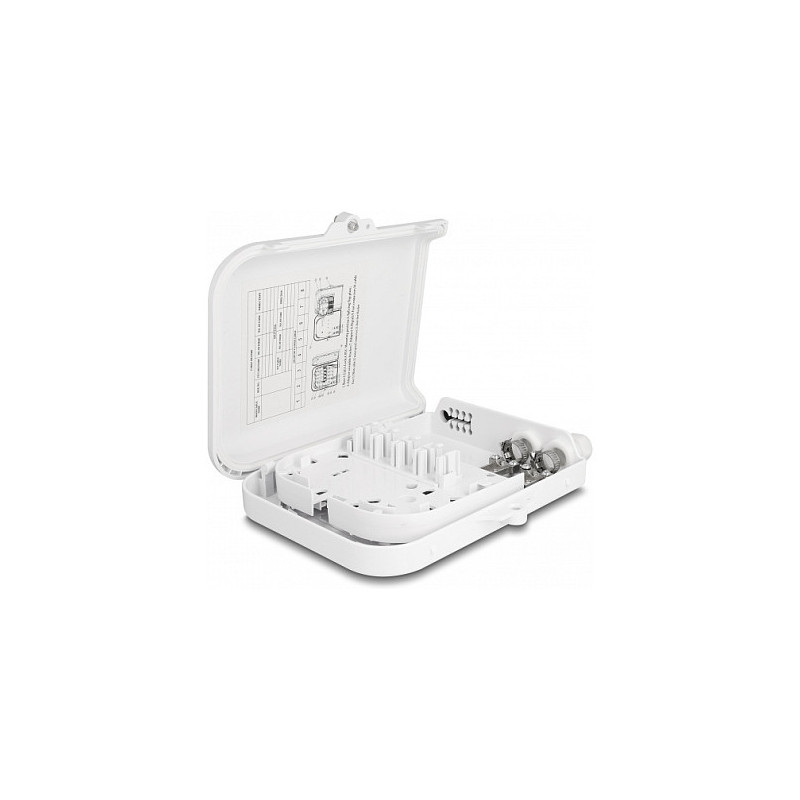

With splice cassette
The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals. In addition, the cassette is perfect for mechanical splicing and fusion splicing.

IP65 dust and waterproof
The distribution box has two cable entries, each with a gland, and nine cable outlets that are protected with a rubber seal. The cable glands and seals provide a watertight seal to the enclosure for feed through of fiber optic cables indoor and outdoor.

Features

Product colour: White
Housing material: Acrylonitrile butadiene styrene (ABS)
Feature: Wall mountable
Feature: Suitable for indoor use
Feature: Suitable for outdoor use
Number of splice trays supported (max): 8
Number of fibres supported (max): 8
Cable diameter supported (max): 1.2 cm
International Protection (IP) code: IP65

Weight & dimensions

Width: 195 mm
Depth: 243 mm
Height: 55 mm
