DeLOCK 65957 KVM extender

DeLOCK 65957. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 70 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.3 A. Bandwidth: 600 MHz, Bandwidth: 18 Gbit/s

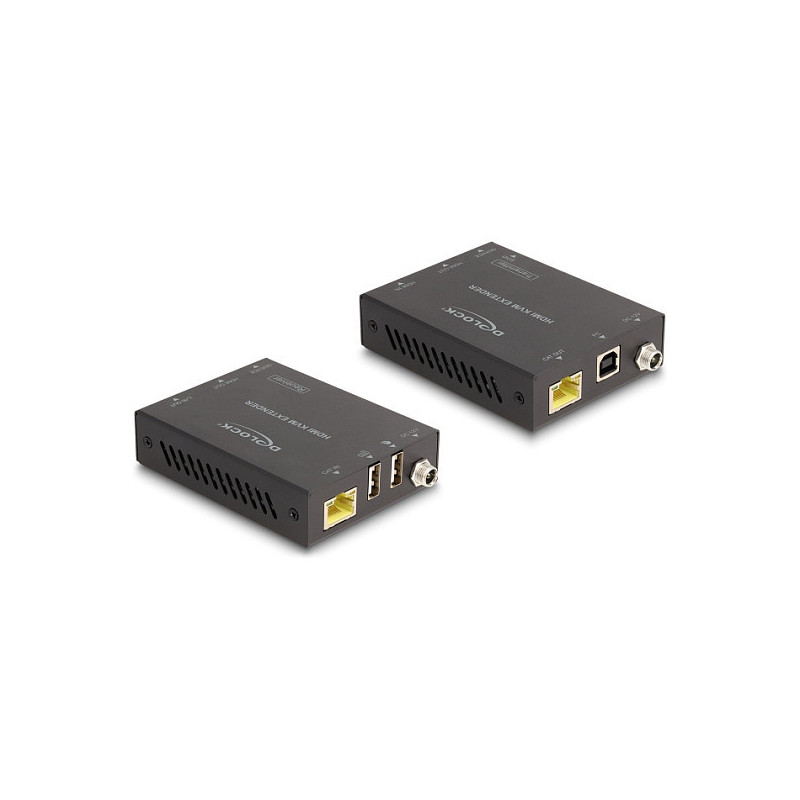

This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable. At 4K 60 Hz resolution, distances of up to 70 m are possible. The set has wide applications in conference rooms, for tele-education or on large screens.

HDMI loop output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.

KVM function
A USB keyboard and mouse can be connected to the receiver in order to send the signals to a computer connected to the transmitter.

Power over Cable (PoC)
The set supports Power over Cable (PoC), so only one device requires a power supply. The other device is powered via the network cable and can therefore be used more flexible.

Screwable DC connection
The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 70 m
Cable types supported: Cat6, Cat6a
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black
Material: Metal

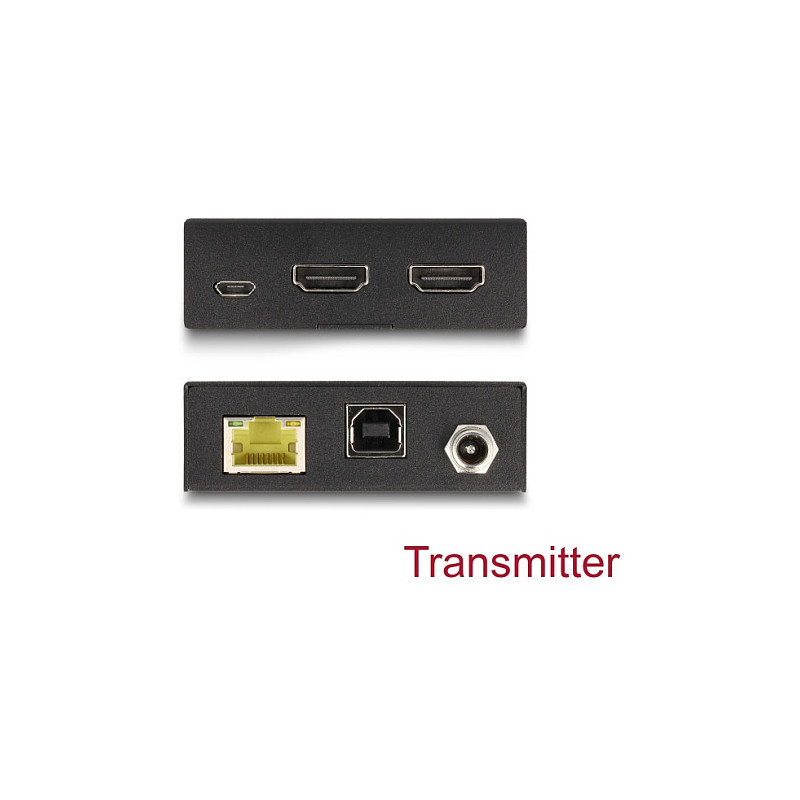

Transmitter

Transmitter video port type: HDMI
Feature: Transmitter local video port
Transmitter local video port type: HDMI
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Transmitter USB Type-B ports quantity: 1

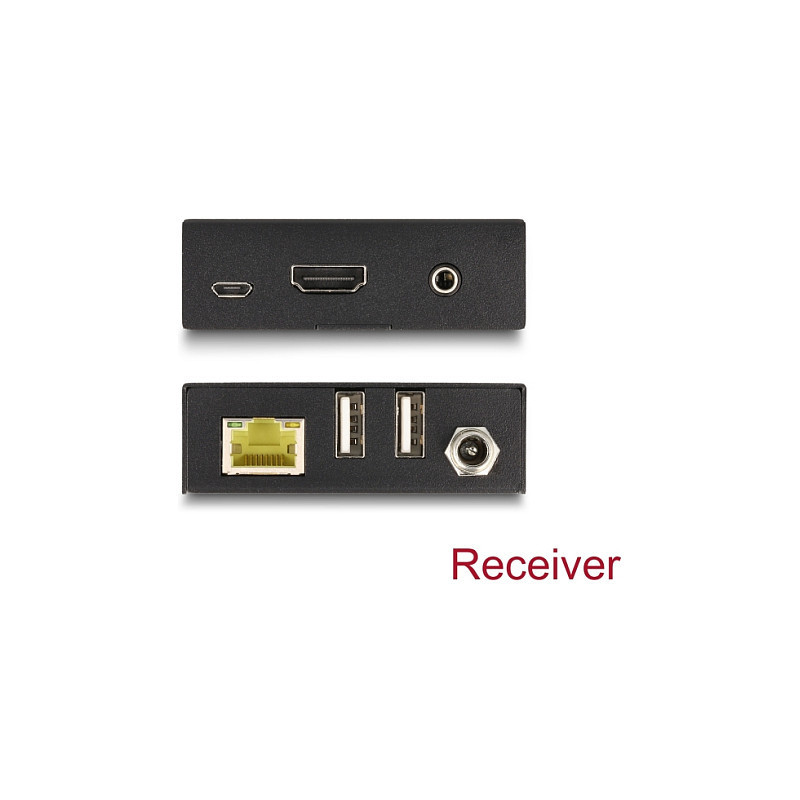

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver USB Type-A ports quantity: 2

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.3 A
AC adapter output voltage: 12 V
AC adapter output current: 1 A
Feature: DC-in jack

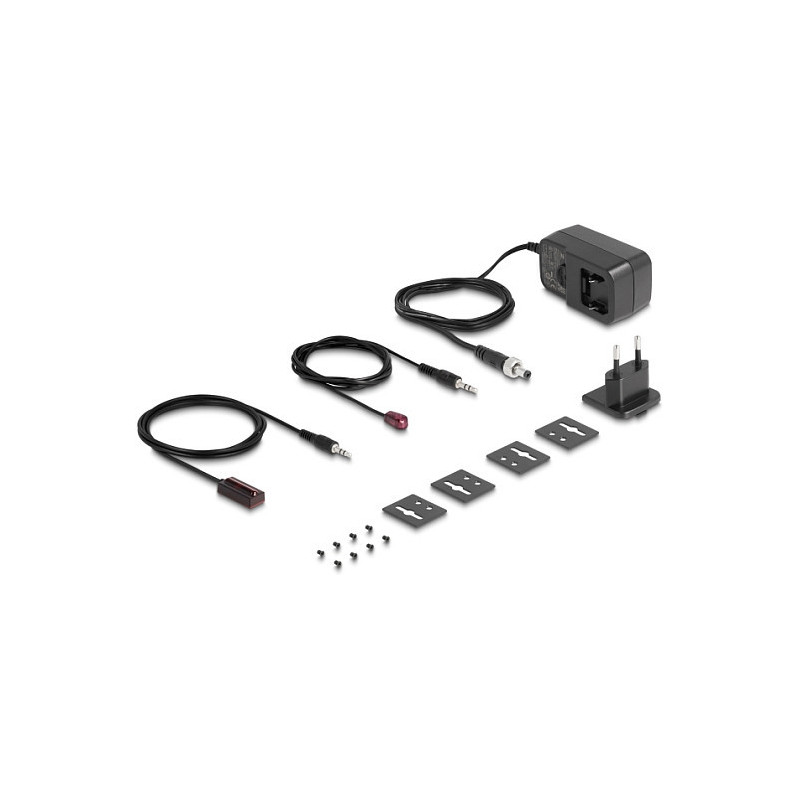

Packaging content

Feature: AC adapter included
Feature: Manual

Other features

Feature: HDCP
Feature: Extended display identification data (EDID)
Bandwidth: 600 MHz
Bandwidth: 18 Gbit/s

Logistics data

Country of origin: China
