DeLOCK 65832 AV extender

DeLOCK HDMI Extender Set over Cat.6 cable 4K 30 Hz. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 70 m. Connectivity technology: Wired. Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 69 mm, Depth: 80 mm, Height: 17 mm. Quantity per pack: 1 pc(s), Package type: Box

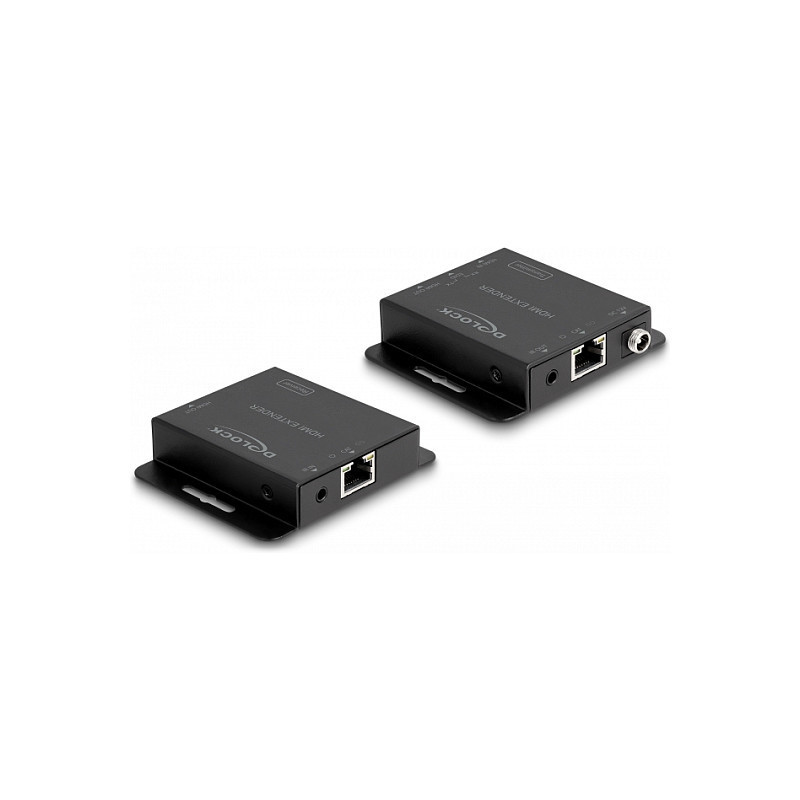

This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable. At 4K 30 Hz resolution, distances of up to 40 m are possible, and at 1080p resolution, 70 m can be achieved. The set has wide applications in conference rooms, for tele-education or on large screens.

HDMI loop output

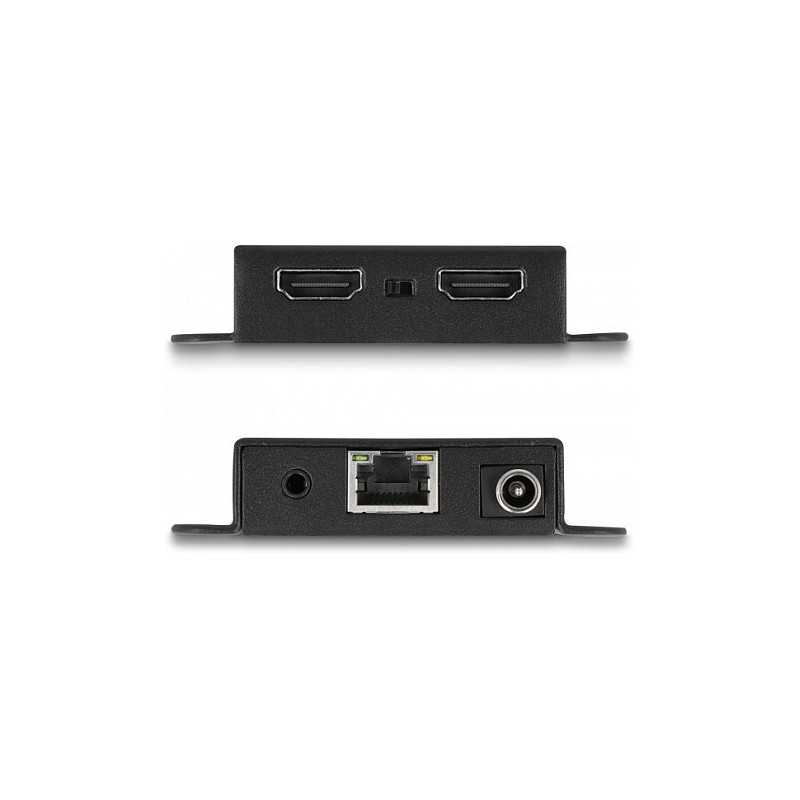

The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.

Power over Cable (PoC)
The set supports Power over Cable (PoC), so only the transmitter requires a power supply. The receiver is powered via the network cable and can therefore be used more flexible.

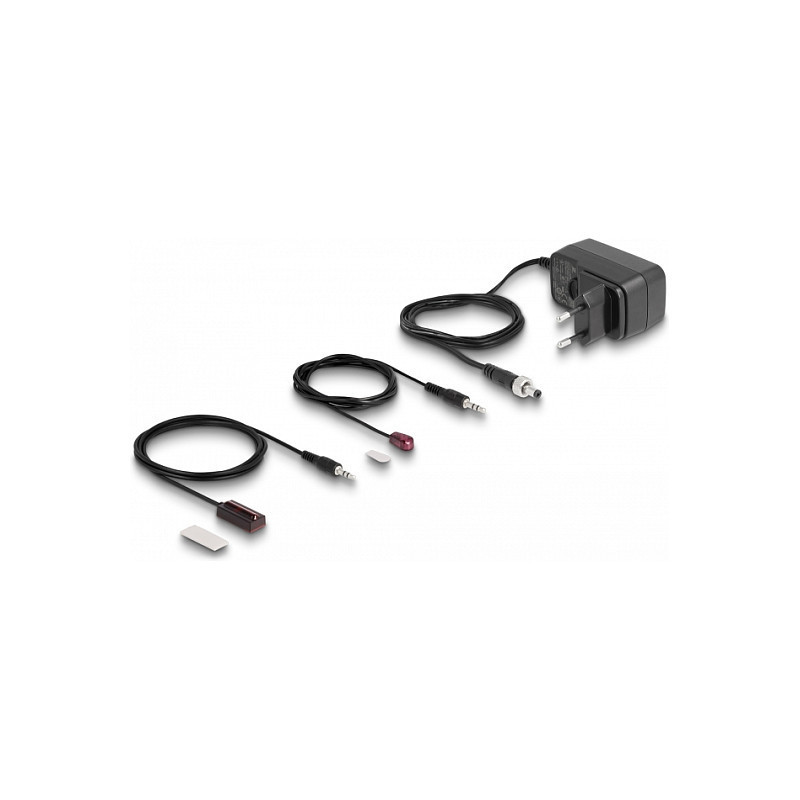

Screwable DC connection
The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Maximum transfer distance: 70 m
Material: Metal
Feature: HDCP & EDID bypass
Feature: Wall mountable
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
HDMI in: 1
Number of HDMI outputs: 1
Feature: DC-in jack

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Operating voltage: 12 V
Output current: 1 A
Power consumption (typical): 3 W

Weight & dimensions

Width: 69 mm
Depth: 80 mm
Height: 17 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Box
