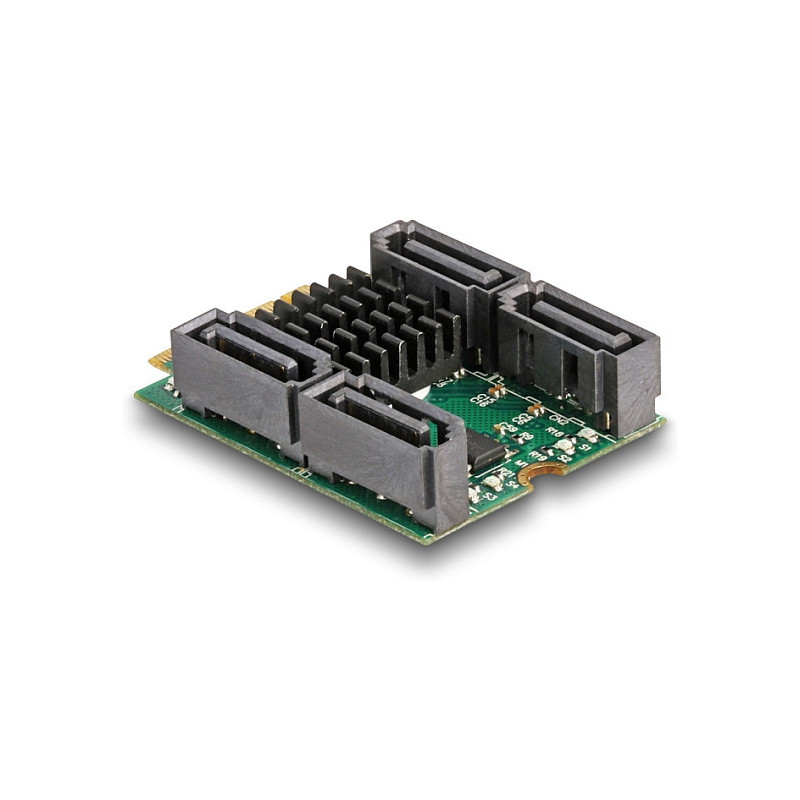

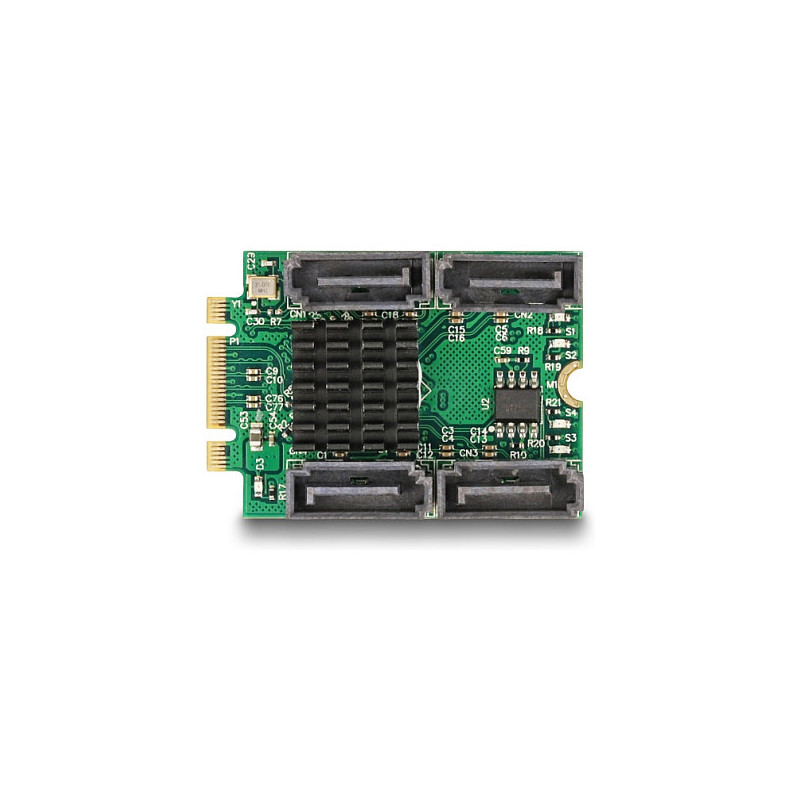

DeLOCK 61062 interface cards / adapter

DeLOCK Converter M.2 Key B+M male to 4 x SATA male with RAID and HyperDuo. Host interface: M.2, Output interface: SATA. Product colour: Black, Green. Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1, 10, JBOD. Width: 30 mm, Depth: 42 mm, Height: 13 mm. Quantity per pack: 1 pc(s)

This converter by Delock expands the system by four SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes. The converter supports a hyperduo function. With this function it combines an SSD and an HDD to use the advantages of both data mediums, the speed of an SSD and the capacity of an HDD.

Ports & interfaces

Host interface: M.2
Output interface: SATA
SATA revision: 3.0
Internal SATA ports quantity: 4

Design

Feature: Internal
Product colour: Black, Green

Features

Data transfer rate (max): 6 Gbit/s
RAID levels: 0, 1, 10, JBOD

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 30 mm
Depth: 42 mm
Height: 13 mm

Packaging data

Quantity per pack: 1 pc(s)
