DeLOCK 47235 drive bay panel

DeLOCK 5.25″ Mobile Rack for 4 x 2.5″ U.2 NVMe SSD with lockable Trays. Size (imperial): 13.3 cm (5.25"), Type: Storage drive tray, Product colour: Black. Width: 139 mm, Depth: 146 mm, Height: 42 mm. Quantity per pack: 1 pc(s), Number of lock keys included: 2 pc(s). Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64. Country of origin: Taiwan

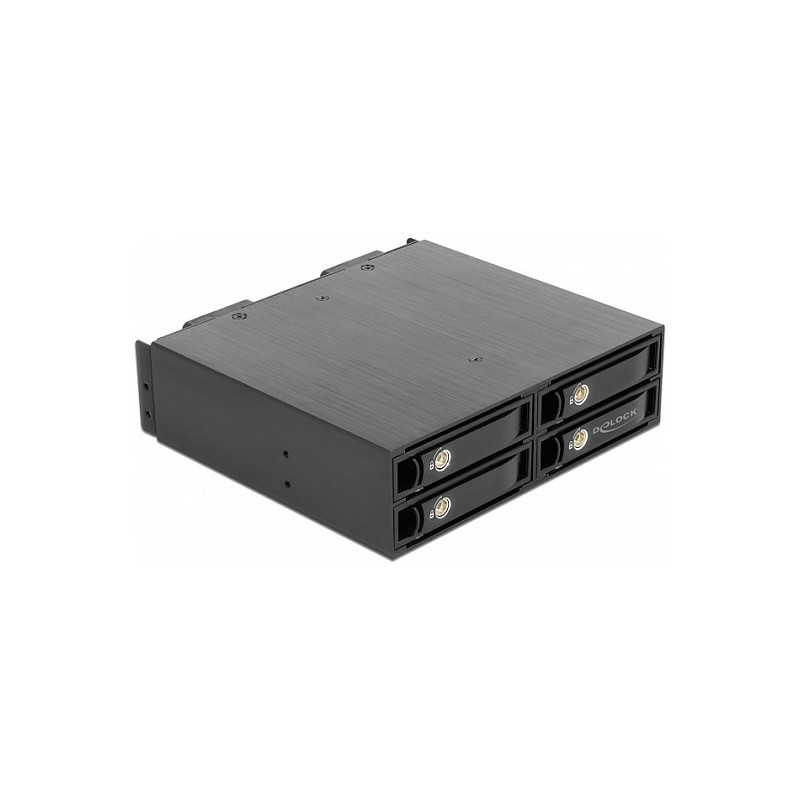

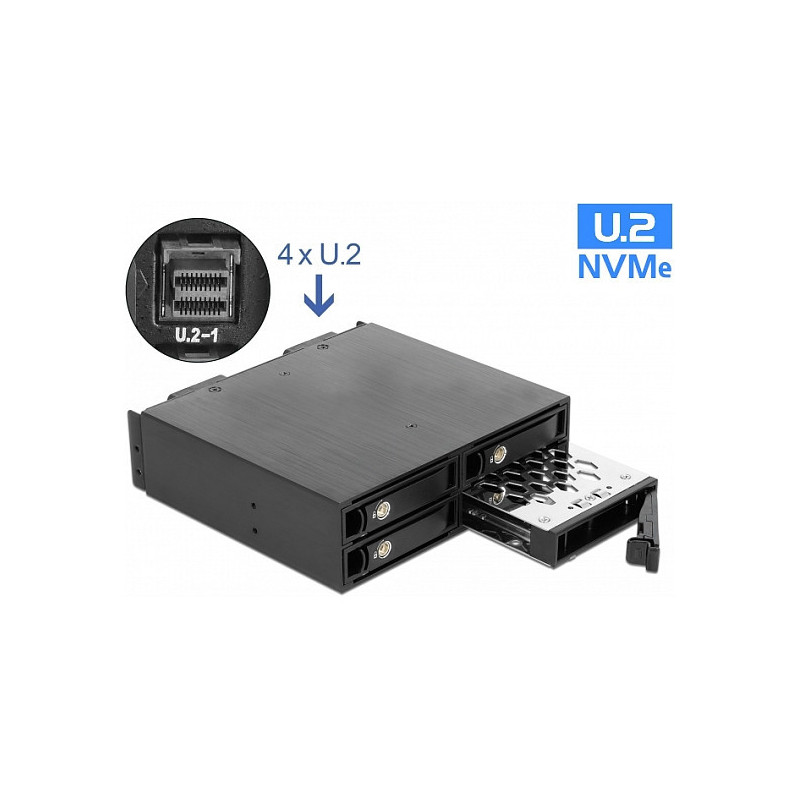

This solid metal mobile rack by Delock can be installed into a free 5.25″ bay of a PC, IPC or server enclosure and enables the operation of up to four 2.5″ U.2 SSD. To ensure the maximum speed at each port, each slot has its own SFF-8643 connector.

Quick change of SSD

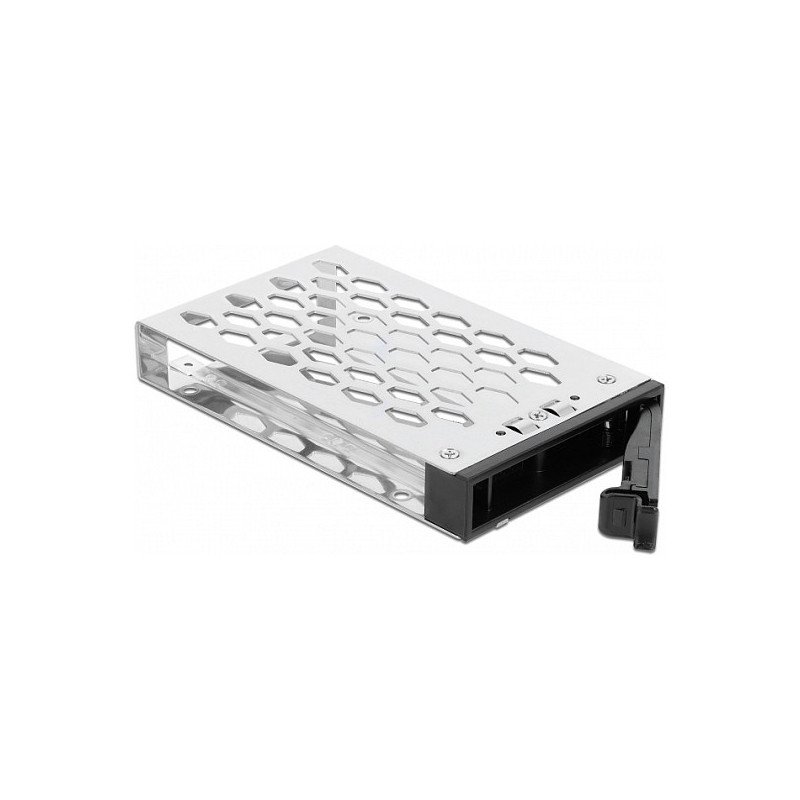

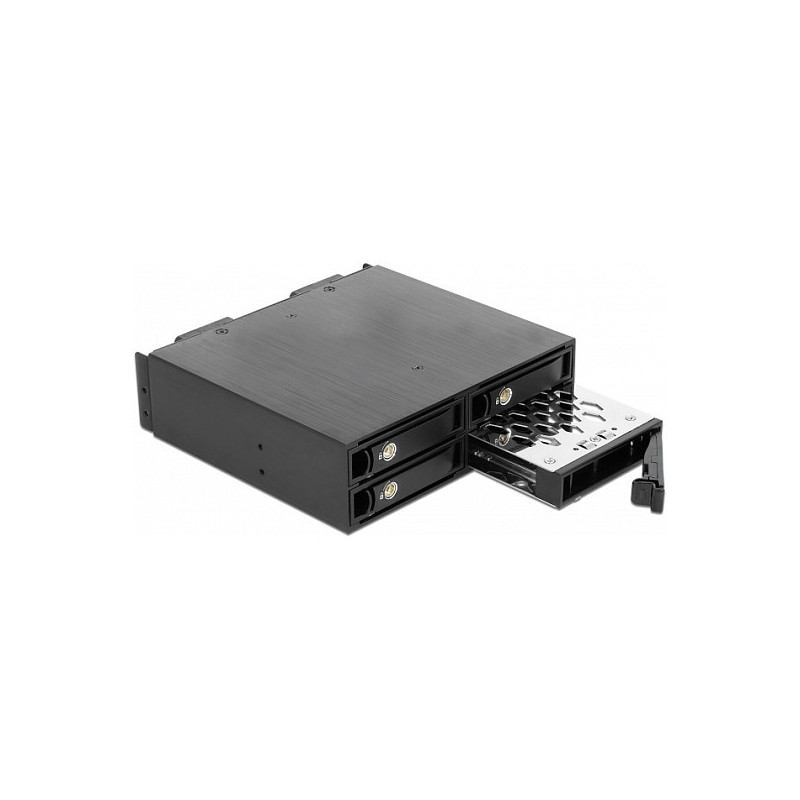

Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.

Protection against theft

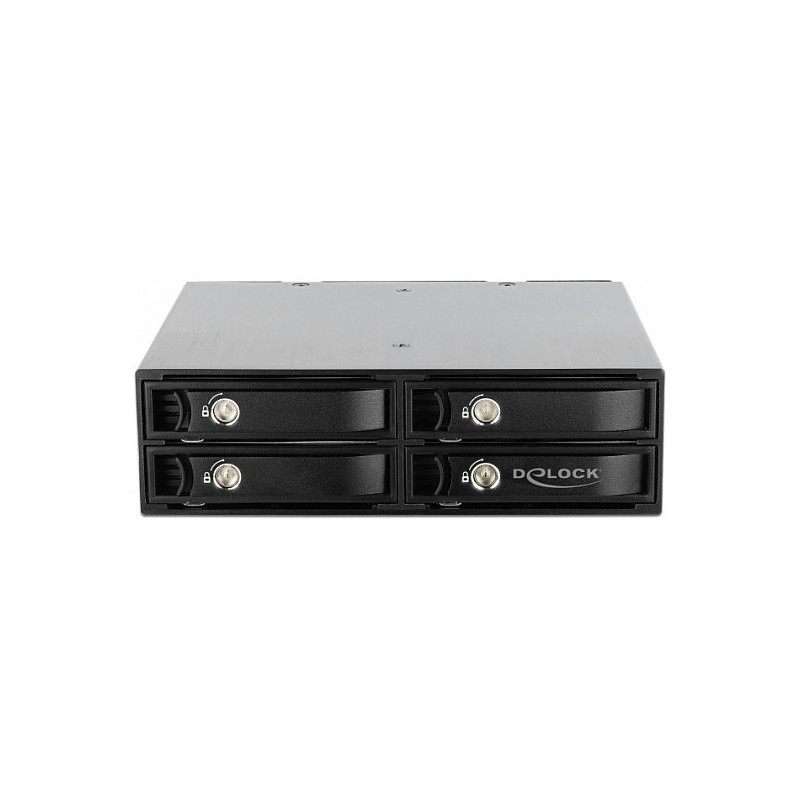

Each of the four removable frames is provided with a separate lock. Thus, the hard disks and data can be protected against theft and misuse.

Good cooling

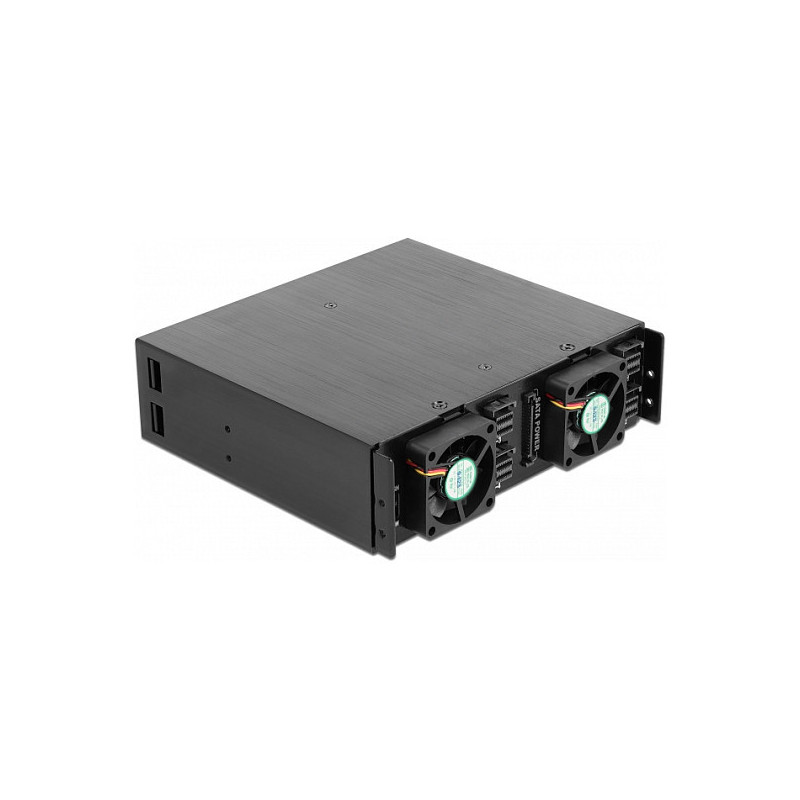

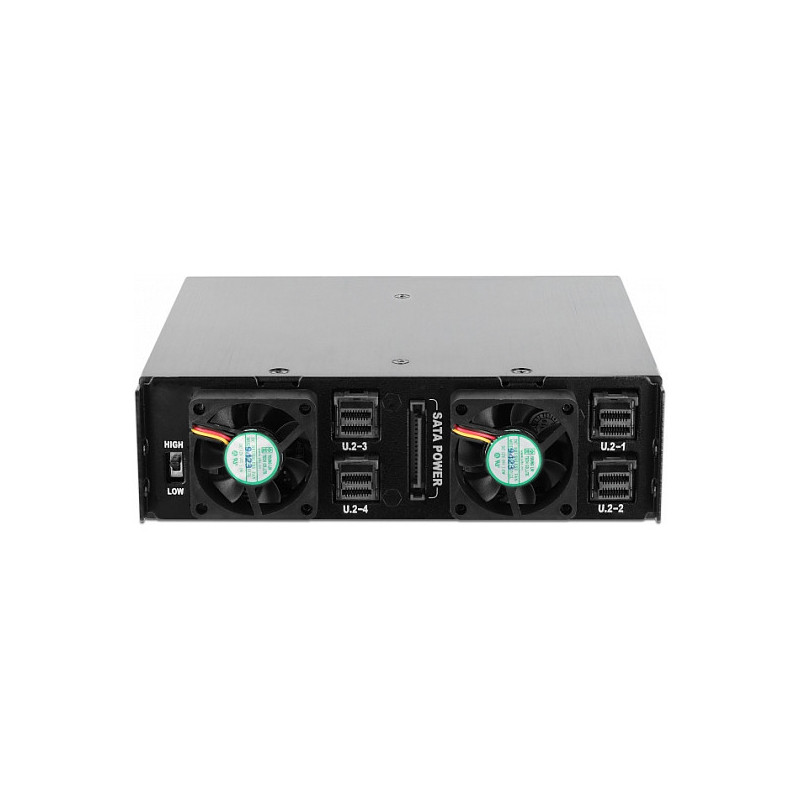

In operation, two 35 mm rear fans ensure an efficient and effective airflow to cool all 4 slots. The fans can optionally be set to low or high speed to ensure optimal cooling.

Features

Size (imperial): 13.3 cm (5.25")
Type: Storage drive tray
Product colour: Black
Number of SSDs supported: 4
SSD interface: NVMe
SSD form factor: 2.5"
Material: Aluminium
Supported storage drive heights: 15 mm
Number of fans: 2 fan(s)
Fan diameter: 3.5 cm
Data transfer rate: 32 Gbit/s
LED indicators: Access, Power
Feature: Key lock

Ports & interfaces

Number of SATA connectors: 1

Weight & dimensions

Width: 139 mm
Depth: 146 mm
Height: 42 mm

Packaging content

Quantity per pack: 1 pc(s)

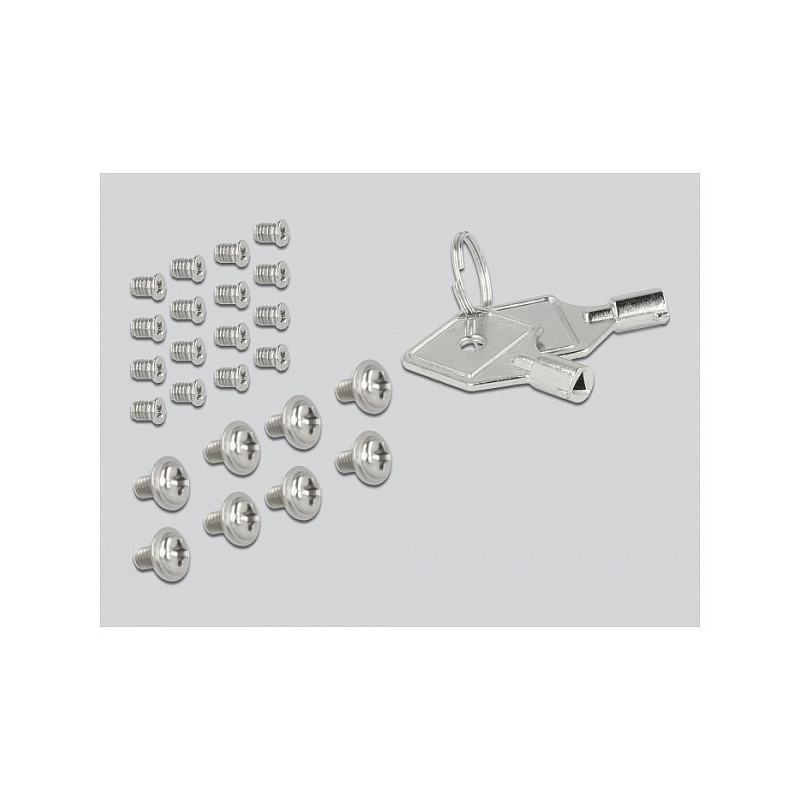

Feature: Screws included
Feature: Manual
Number of lock keys included: 2 pc(s)
Number of screws: 24

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Operational conditions

Storage temperature (T-T): -20 - 55 °C
Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 5 - 65%

Logistics data

Country of origin: Taiwan
