DeLOCK 47129 drive bay panel

DeLOCK 5.25″ Mobile Rack for 8 x M.2 NVMe SSD with Slim SAS SFF-8654 connector. Size (imperial): 13.3 cm (5.25"), Type: Storage drive tray, Product colour: Black. Width: 145 mm, Depth: 174 mm, Height: 40 mm. Quantity per pack: 1 pc(s), Number of lock keys included: 2 pc(s). Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Linux operating systems supported: Linux Kernel 6.2

Description

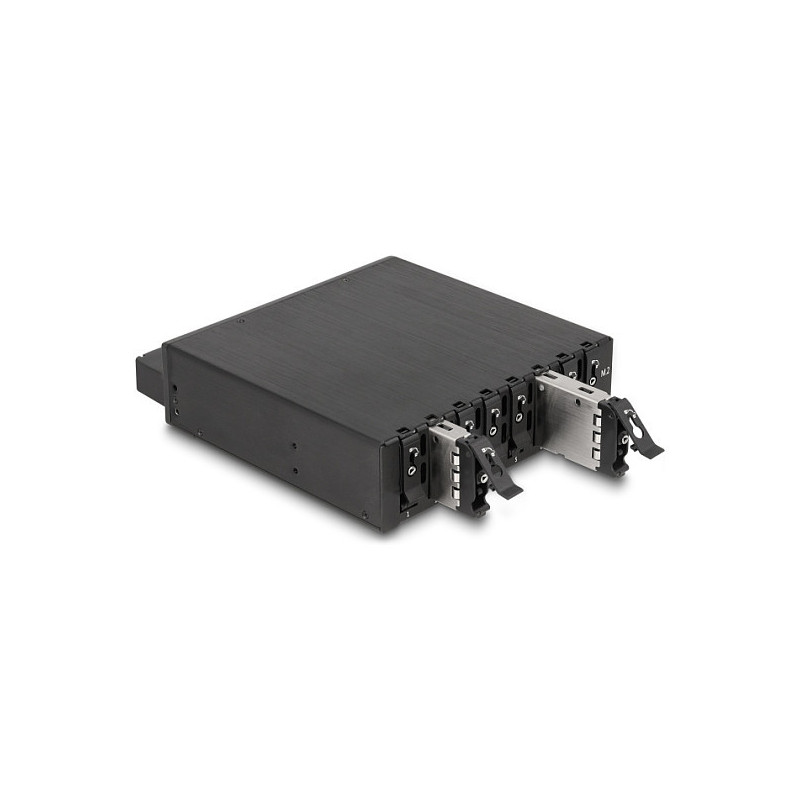

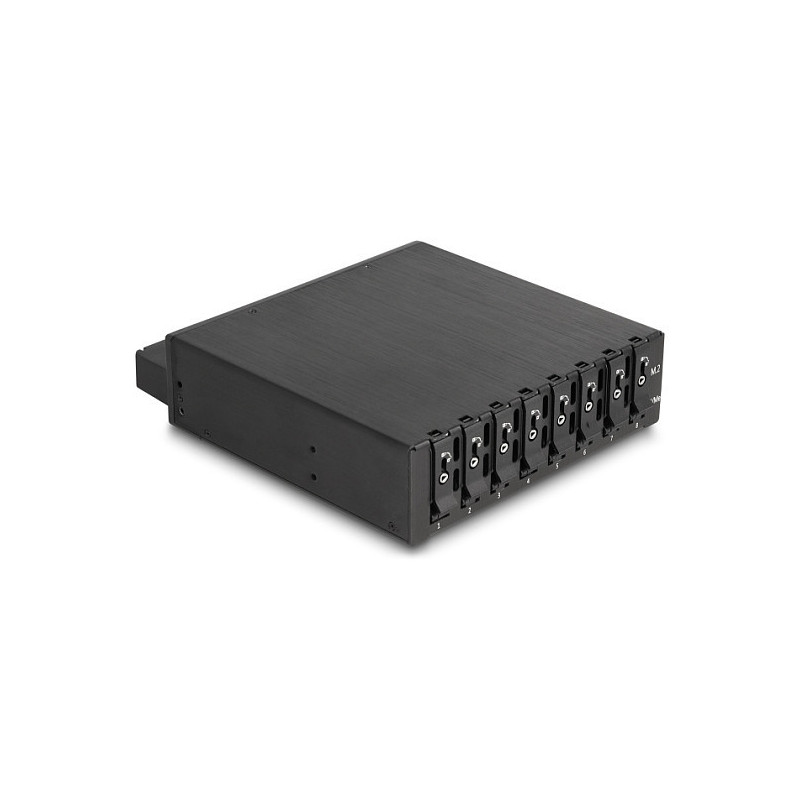

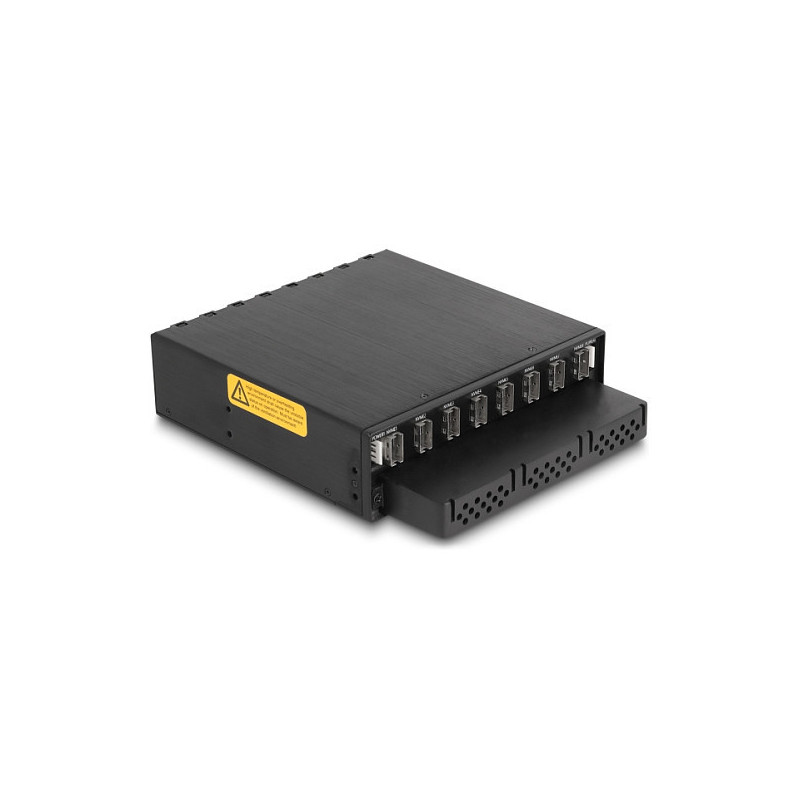

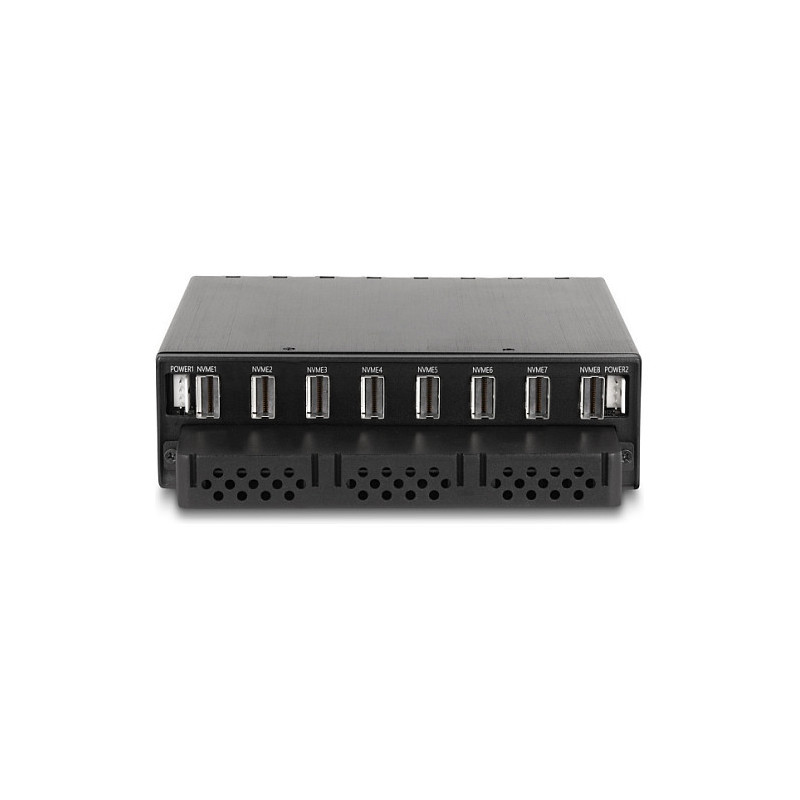

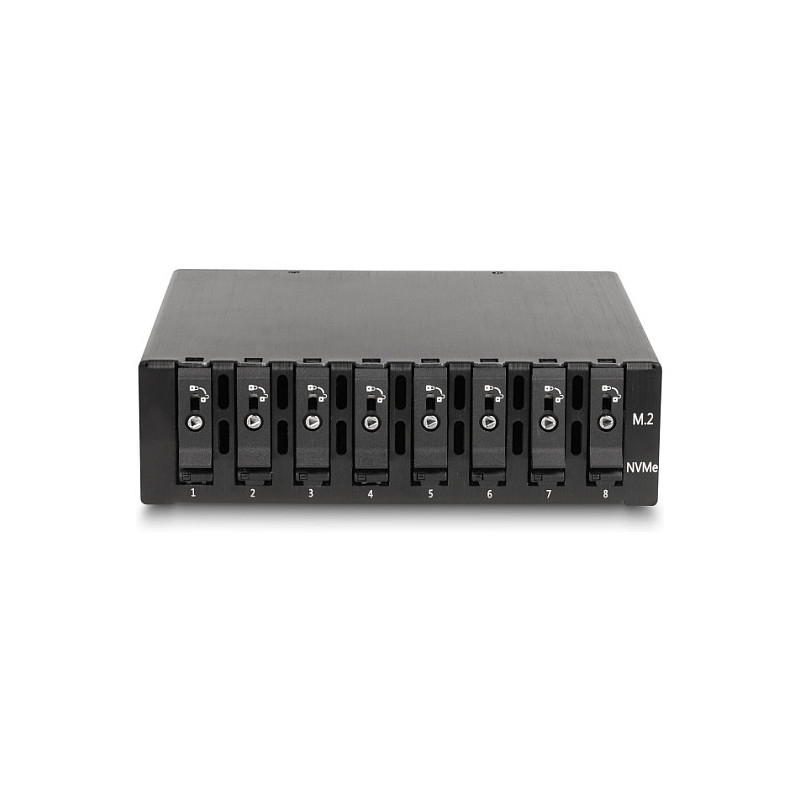

This solid metal mobile rack by Delock can be installed into a 5.25″ bay of a PC, IPC or server enclosure and enables the operation of up to 8 M.2 NVMe SSD. To ensure the maximum speed at each port, each slot has its own Slim SAS SFF-8654 connector.

Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.

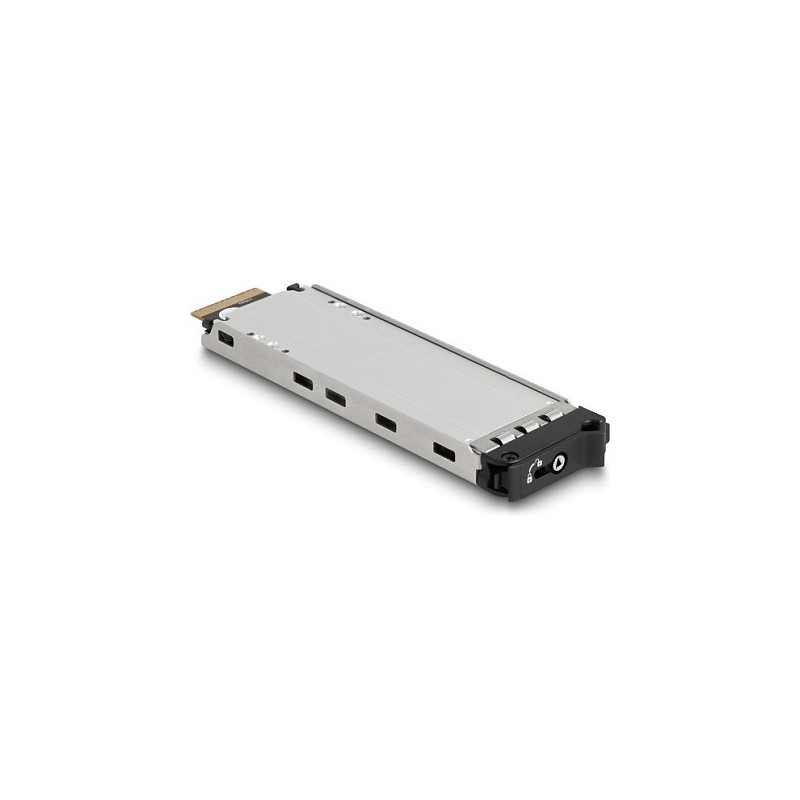

Tray with key lock and springs
The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations and therefore support its use in mobile devices.

Note
Special care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established.

Features

Size (imperial): 13.3 cm (5.25")
Type: Storage drive tray
Product colour: Black
Number of SSDs supported: 8
SSD interface: PCI Express 4.0
SSD form factor: M.2
Material: Metal
Number of fans: 3 fan(s)
LED indicators: Yes
Feature: Key lock

Weight & dimensions

Width: 145 mm
Depth: 174 mm
Height: 40 mm

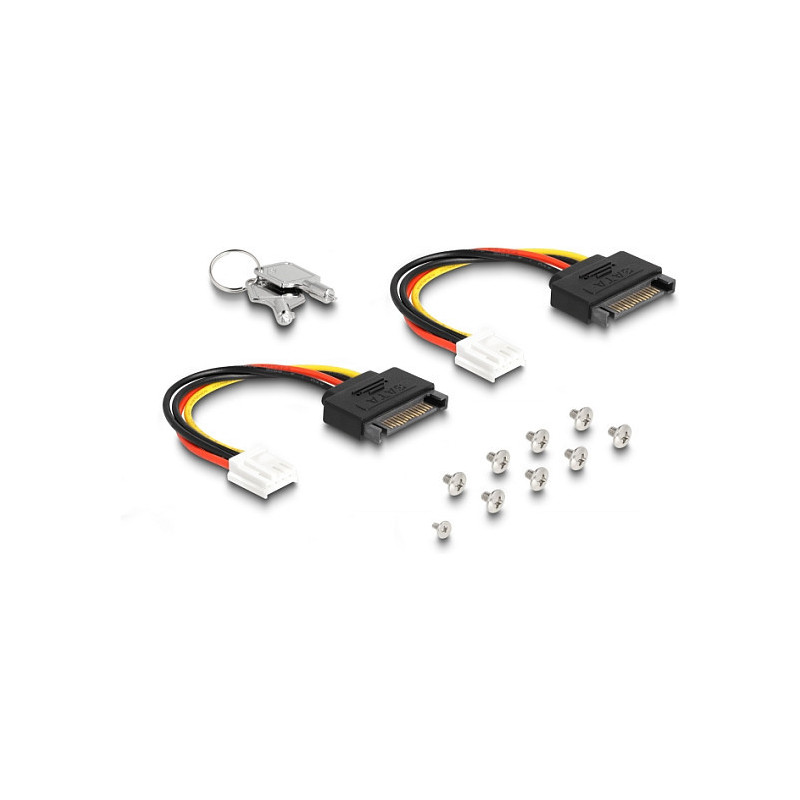

Packaging content

Quantity per pack: 1 pc(s)
Feature: Screws included
Feature: Manual
Number of lock keys included: 2 pc(s)
Number of screws: 8

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Linux operating systems supported: Linux Kernel 6.2
