DeLOCK 47072 drive bay panel

DeLOCK 3.5″ Mobile Rack for 4 x M.2 NVMe SSD with Slim SAS SFF-8654 connector. Size (imperial): 8.89 cm (3.5"), Type: Storage drive tray, Product colour: Black. Width: 100 mm, Depth: 159 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Number of lock keys included: 2 pc(s). Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Linux operating systems supported: Linux Kernel 6.2

Description

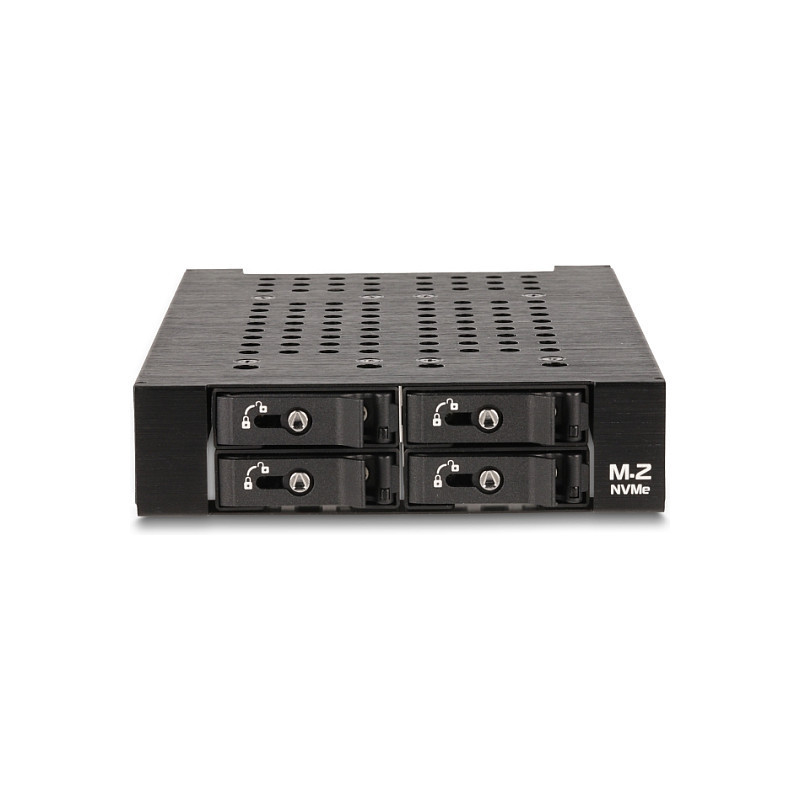

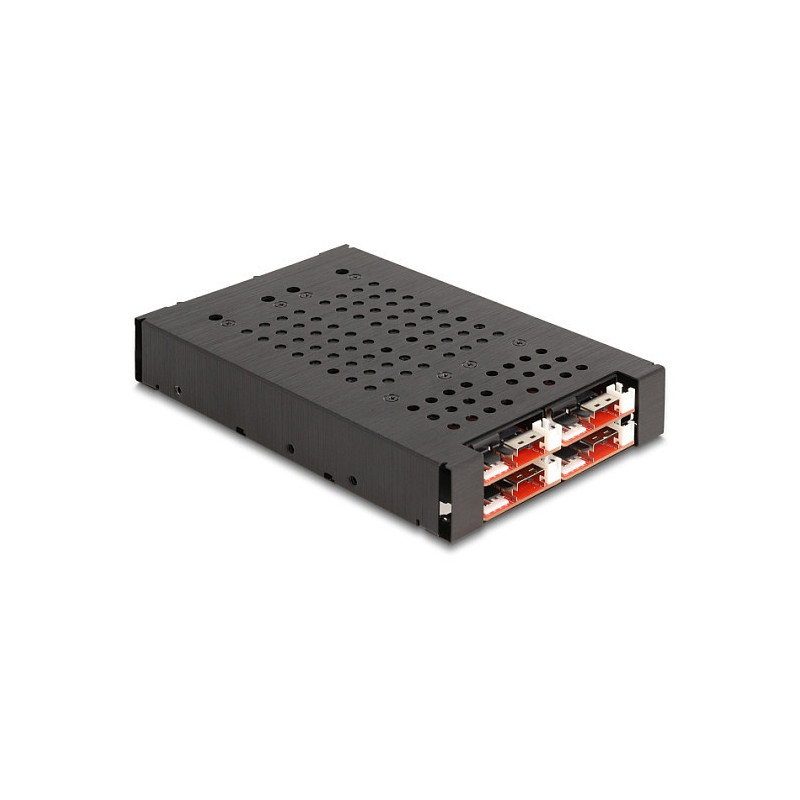

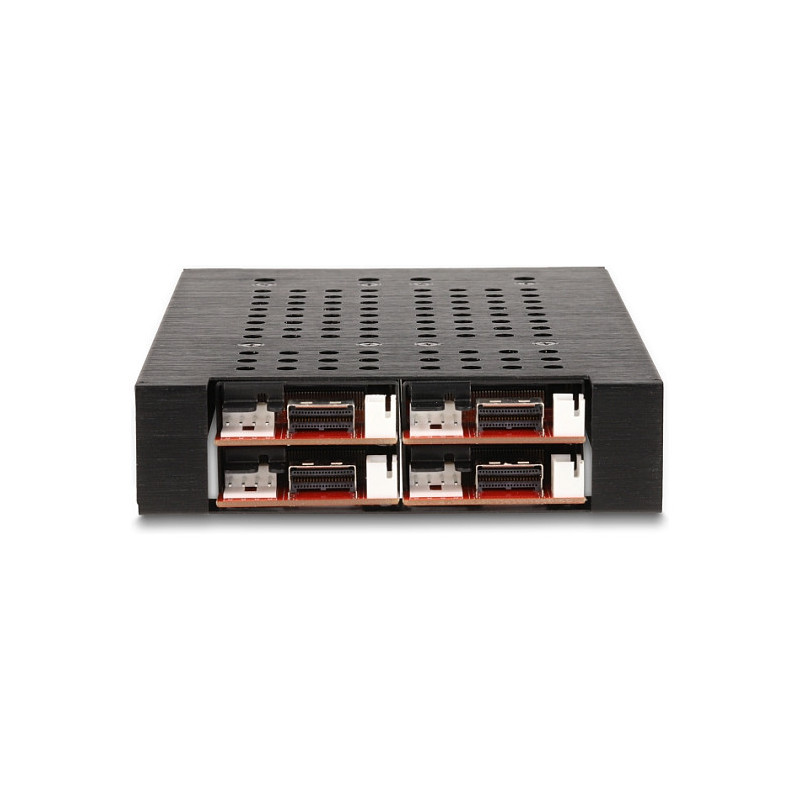

This solid metal mobile rack by Delock can be installed into a 3.5″ bay of a PC and provides four M.2 slots in 2280, 2260, 2242 or 2230 format.

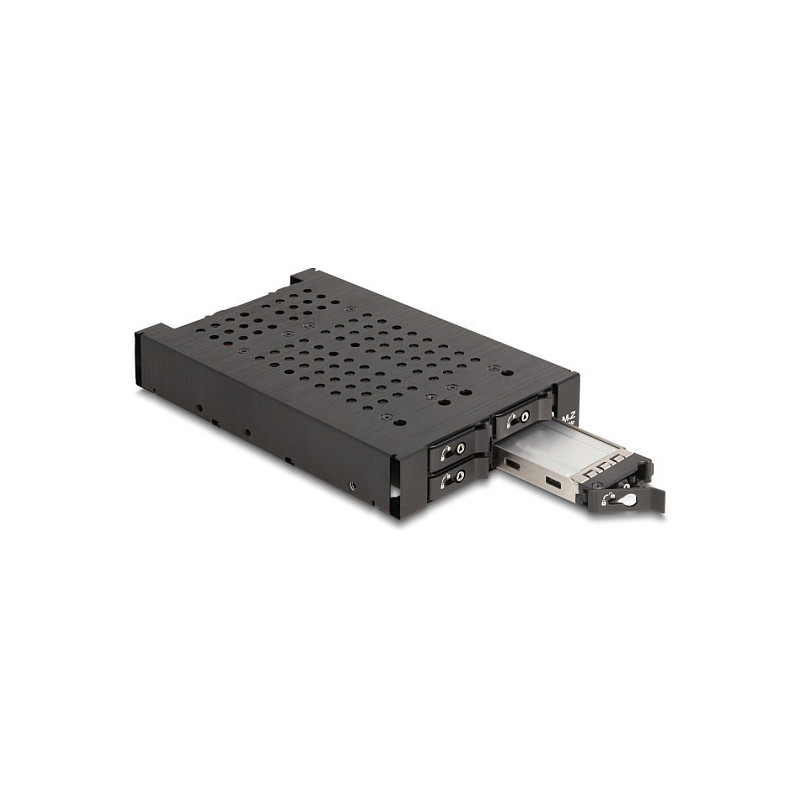

Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.

Tray with key lock and springs
The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations and therefore support its use in mobile devices.

Note
Special care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established.

Features

Size (imperial): 8.89 cm (3.5")
Type: Storage drive tray
Product colour: Black
Number of SSDs supported: 4
SSD interface: PCI Express 4.0
SSD form factor: M.2
Material: Metal
LED indicators: Yes
Feature: Key lock

Weight & dimensions

Width: 100 mm
Depth: 159 mm
Height: 25 mm

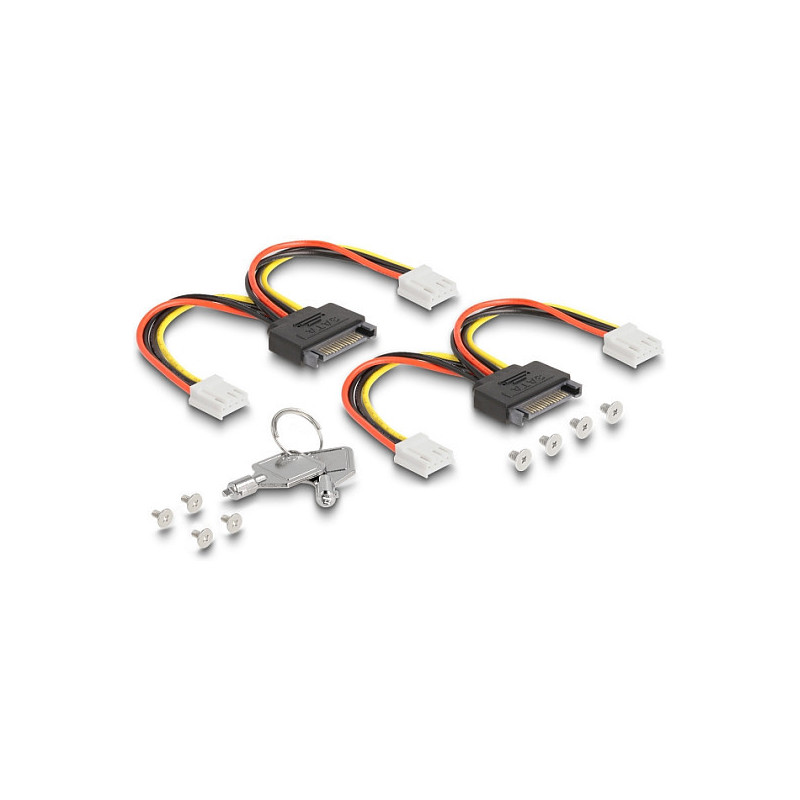

Packaging content

Quantity per pack: 1 pc(s)
Feature: Screws included
Feature: Manual
Number of lock keys included: 2 pc(s)
Number of screws: 8

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Linux operating systems supported: Linux Kernel 6.2
