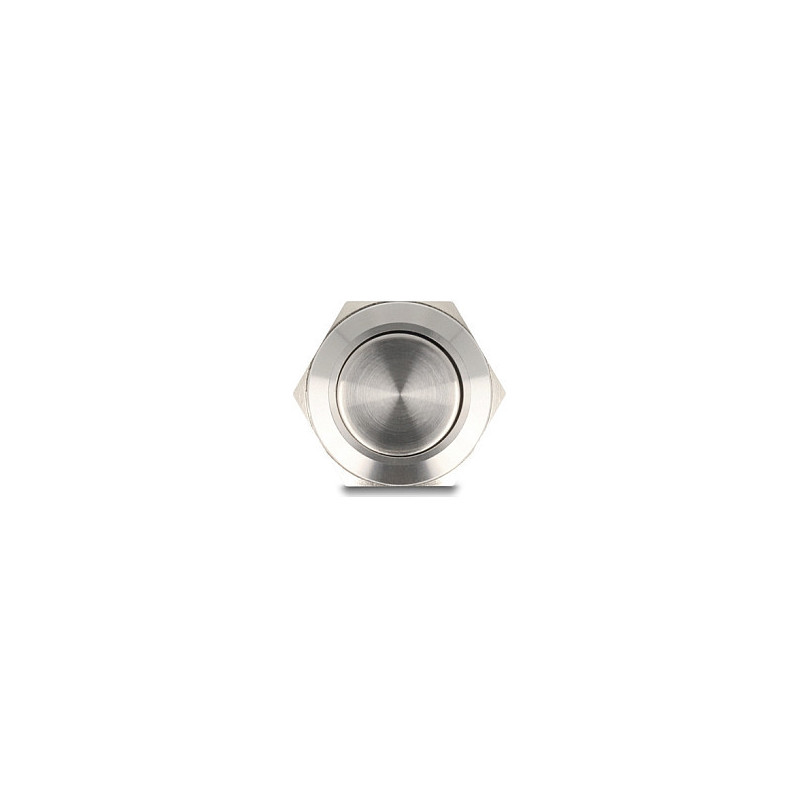

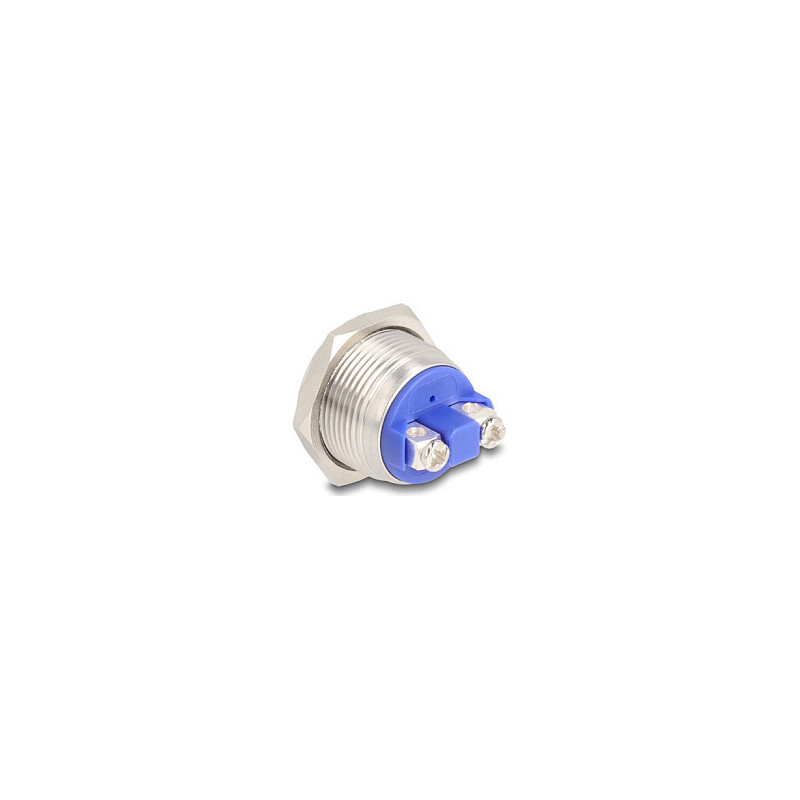

DeLOCK 22040 electrical switch

DeLOCK 22040. Type: Pushbutton switch, Number of poles: 2P, Housing material: Nickel, Stainless steel. AC input voltage: 250 V, Rated current: 5 A. Width: 22 mm, Height: 22 mm, Mounting depth: 2 cm. Package type: Polybag
This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Button
A so called button, or push button, returns to its initial position after being pressed.
Opener and closer
The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

Features

Type: Pushbutton switch
Number of poles: 2P
Housing material: Nickel, Stainless steel
Finish type: Gloss
Product colour: Silver
International Protection (IP) code: IP65
Mounting: Screw
Thread type: Male thread
Mounting hole diameter: 1.9 cm
Country of origin: China

Power

AC input voltage: 250 V
Rated current: 5 A

Weight dimensions

Width: 22 mm
Height: 22 mm
Mounting depth: 2 cm

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Packaging data

Package type: Polybag
