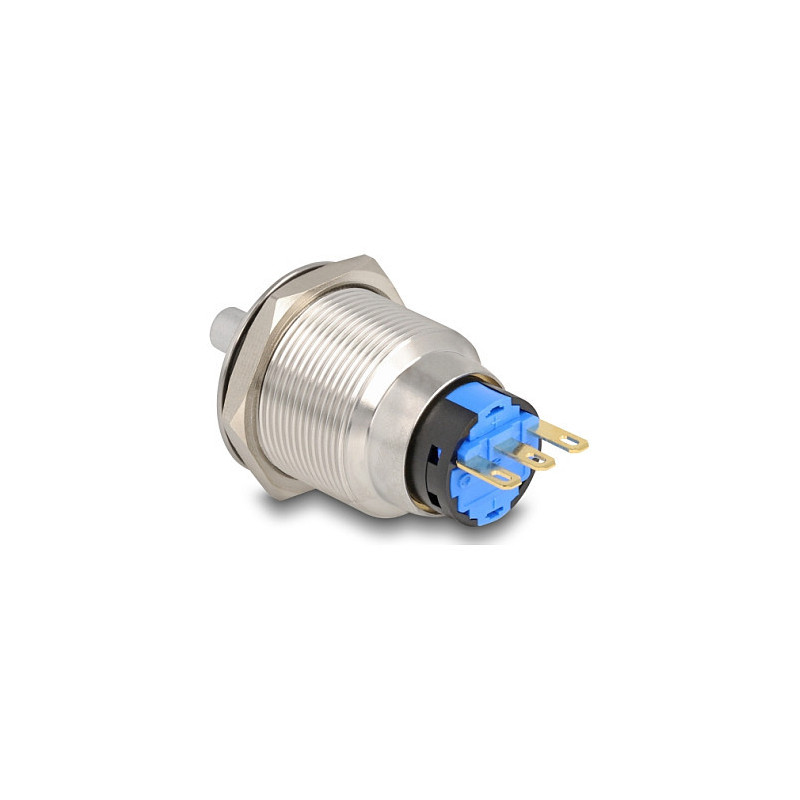

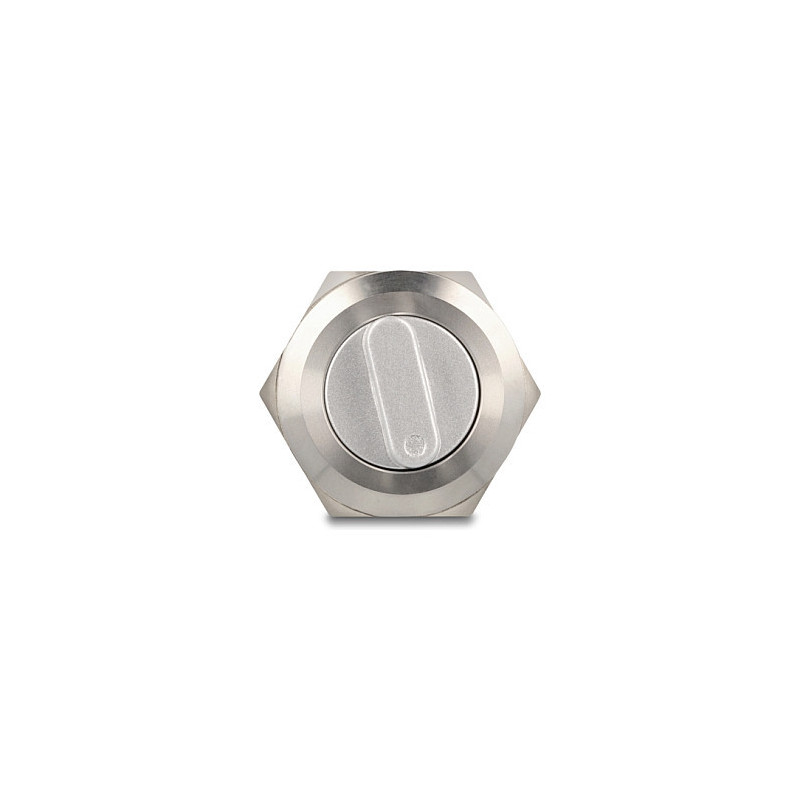

DeLOCK 22016 electrical switch

DeLOCK 22016. Type: Rotary switch, Housing material: Stainless steel, Coating material: Nickel. Maximum switching voltage (AC): 250 V, Maximum switching current (AC): 2 A. Width: 46 mm, Depth: 25 mm, Height: 46 mm. Package type: Box, Quantity per pack: 1 pc(s)
This switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Opener and closer
The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

Features

Type: Rotary switch
Housing material: Stainless steel
Coating material: Nickel
Product colour: Silver
International Protection (IP) code: IP65
Installation type: Soldering
Mounting hole diameter: 2.2 cm
Country of origin: China

Power

Maximum switching voltage (AC): 250 V
Maximum switching current (AC): 2 A

Weight dimensions

Width: 46 mm
Depth: 25 mm
Height: 46 mm
Mounting depth: 3.2 cm

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Packaging data

Package type: Box
Quantity per pack: 1 pc(s)
