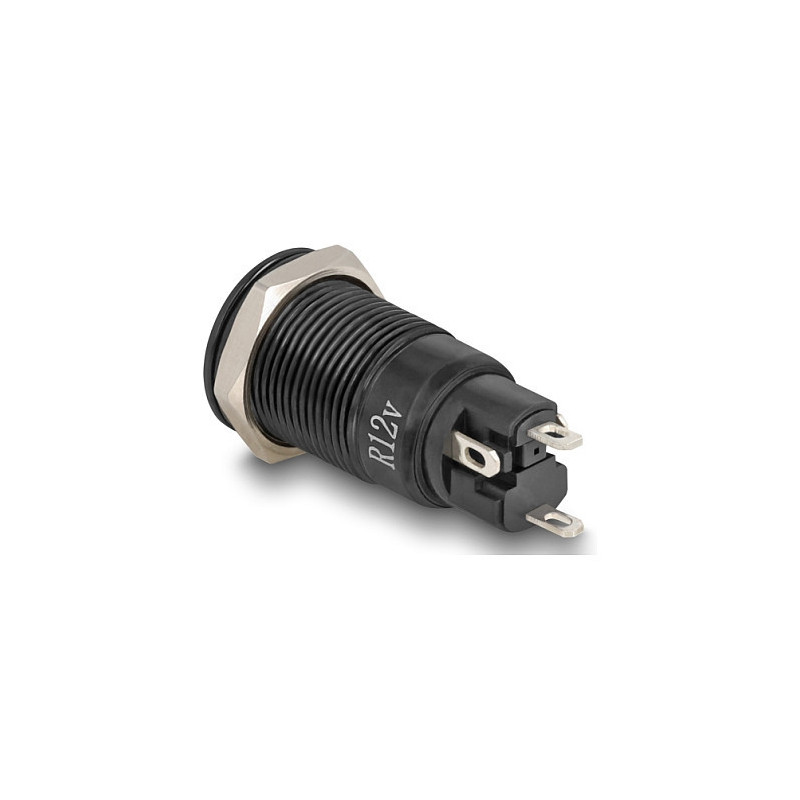

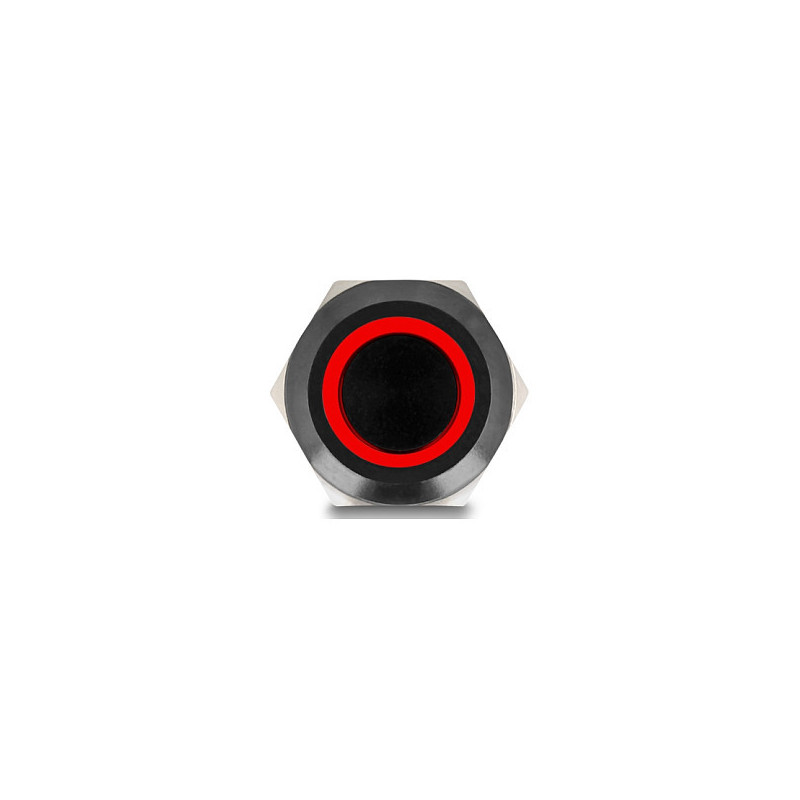

DeLOCK 22014 electrical switch

DeLOCK 22014. Type: Pushbutton switch, Housing material: Plastic, Product colour: Black, Red. Maximum switching voltage (AC): 250 V, Maximum switching current (AC): 2 A. Width: 31.5 mm, Depth: 14 mm, Height: 31.5 mm. Package type: Box, Quantity per pack: 1 pc(s)
This push switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Switch
Unlike a button, a switch remains in its position after being actuated. Examples of switches are toggle switches, rotary switches or slide switches. The light switch is probably the best-known example.
Opener and closer
The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

Features

Type: Pushbutton switch
Housing material: Plastic
Product colour: Black, Red
International Protection (IP) code: IP65
Indicator type: LED
Mounting hole diameter: 1.2 cm
Country of origin: China

Power

Maximum switching voltage (AC): 250 V
Maximum switching current (AC): 2 A

Weight dimensions

Width: 31.5 mm
Depth: 14 mm
Height: 31.5 mm
Mounting depth: 2.5 cm

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Packaging data

Package type: Box
Quantity per pack: 1 pc(s)
