DeLOCK 18645 video switch

DeLOCK HDMI Switch 2 x HDMI in to 1 x HDMI out 8K 60 Hz with integrated cable 50 cm. Video port type: HDMI. Material: Plastic, Product colour: Black, Maximum refresh rate: 144 Hz. Power consumption (max): 5 W. Width: 56 mm, Depth: 66 mm, Height: 16 mm. Quantity per pack: 1 pc(s), Cables included: USB

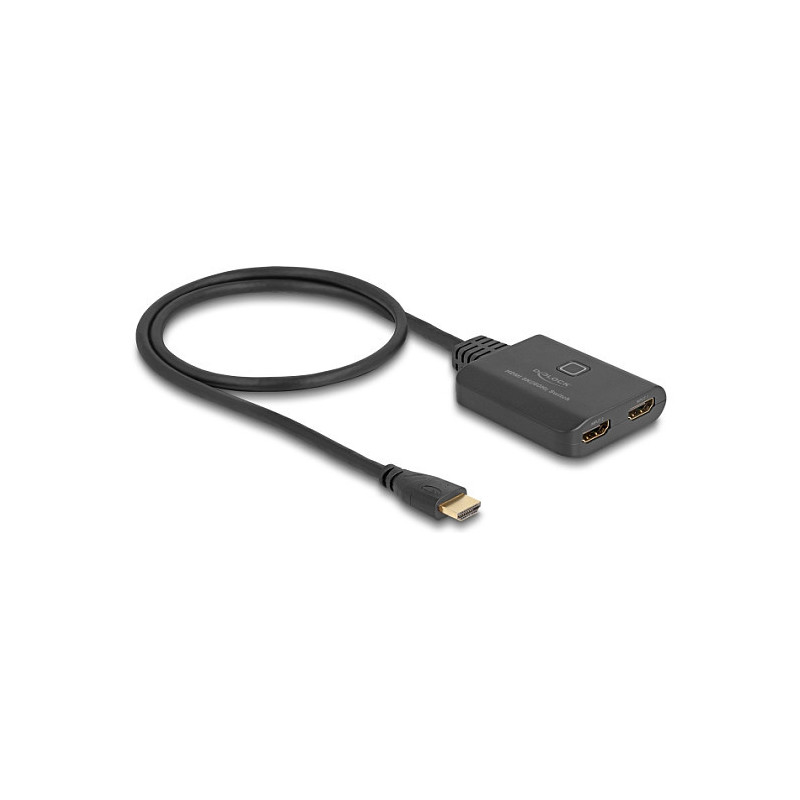

With this HDMI switch by Delock up to two HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device allows switching between the HDMI devices.

USB powered

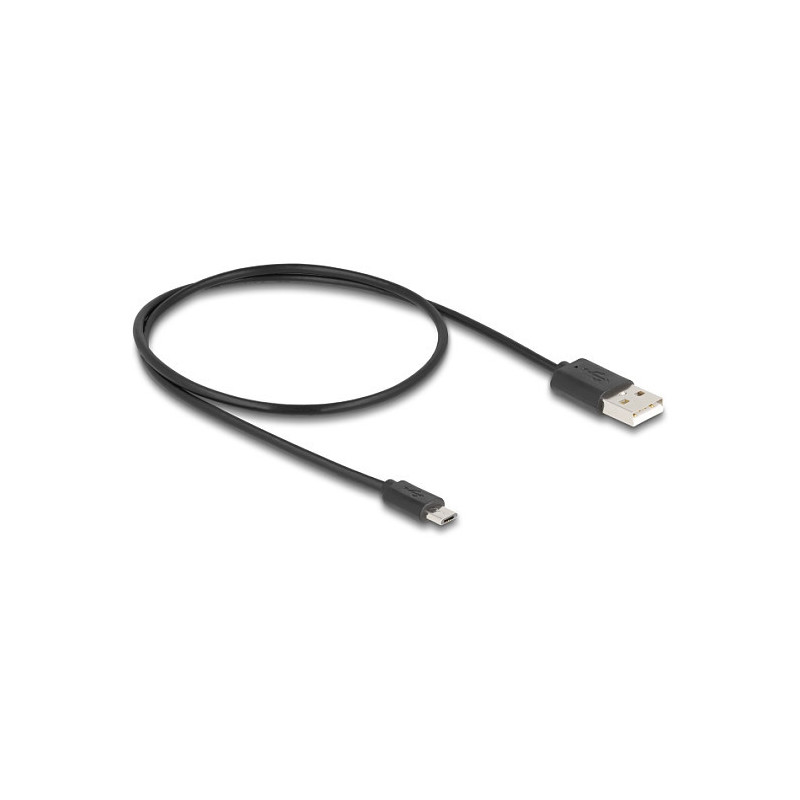

The device is powered via a USB port, a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 3
HDMI in: 2
Number of HDMI outputs: 1
Feature: DC-in jack

Features

Material: Plastic
Product colour: Black
Feature: Consumer Electronics Control (CEC) support
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
Maximum refresh rate: 144 Hz
Bandwidth: 48 Gbit/s
Bandwidth: 1200 MHz
Maximum resolution: 7680 x 4320 pixels
Cable length: 0.5 m
HD type: 8K Ultra HD
Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
HDCP version: 1.4/2.3

Power

Power consumption (max): 5 W

Weight & dimensions

Width: 56 mm
Depth: 66 mm
Height: 16 mm

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual
Cables included: USB
