DeLOCK 18603 video switch

DeLOCK HDMI Switch 3 x HDMI in to 1 x HDMI out 8K 60 Hz. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 144 Hz. Power consumption (max): 5 W. Width: 56 mm, Depth: 112 mm, Height: 14 mm. Quantity per pack: 1 pc(s), Cables included: USB

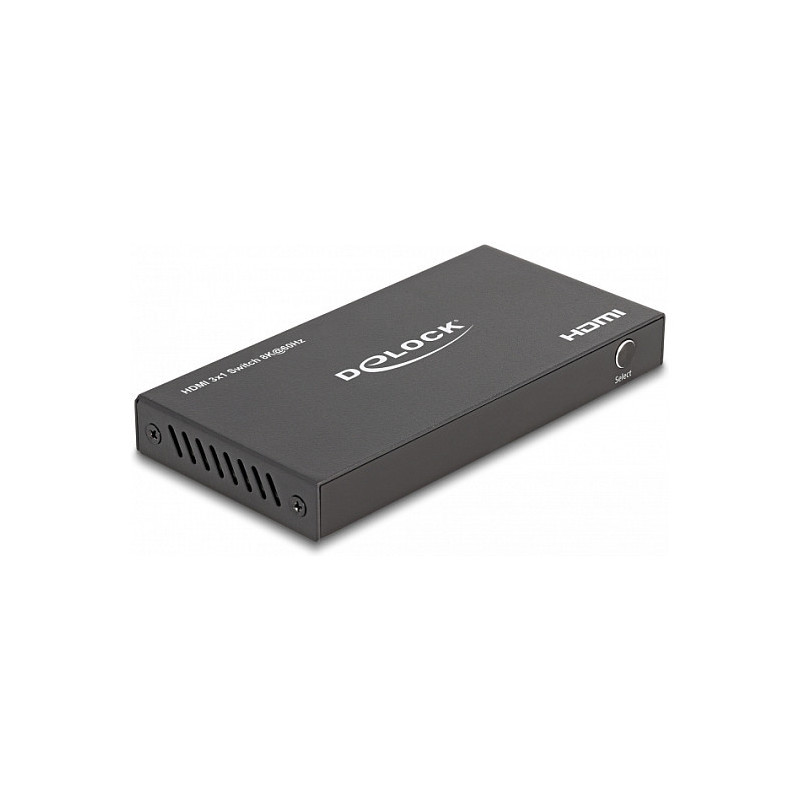

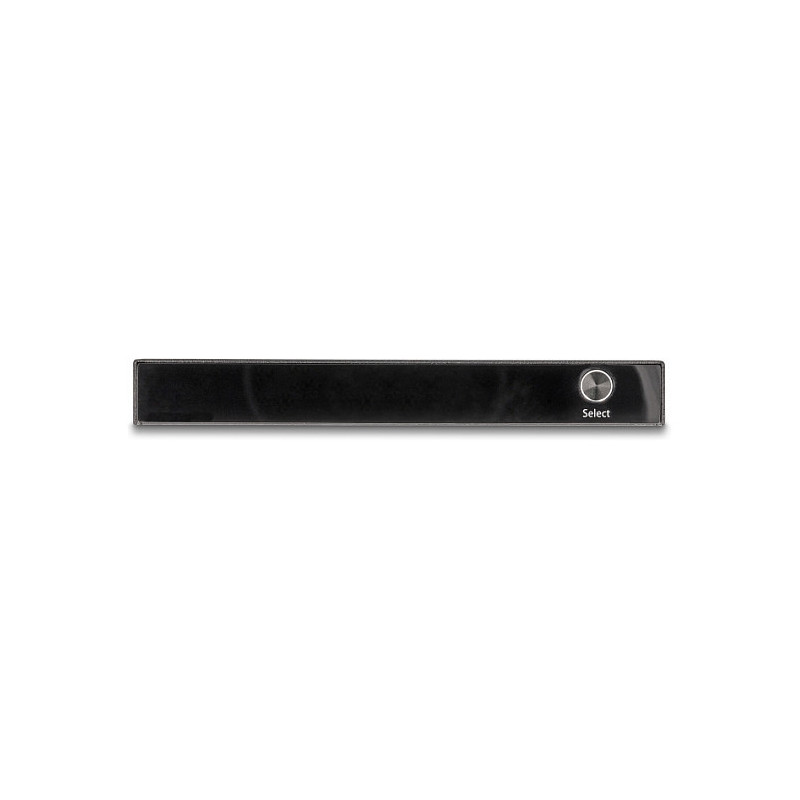

With this HDMI switch by Delock up to three HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device or the remote control can be used to switch between the HDMI devices.

USB powered
The device is powered via a USB port, a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 4
HDMI in: 3
Number of HDMI outputs: 1
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: Consumer Electronics Control (CEC) support
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
Maximum refresh rate: 144 Hz
Supported graphics resolutions: 3840 x 2160, 7680 x 4320
Bandwidth: 48 Gbit/s
Bandwidth: 1200 MHz
Maximum resolution: 7680 x 4320 pixels
Cable length: 0.75 m
HD type: 8K Ultra HD
Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
HDCP version: 1.4/2.3

Power

Power consumption (max): 5 W

Weight & dimensions

Width: 56 mm
Depth: 112 mm
Height: 14 mm

Packaging content

Quantity per pack: 1 pc(s)

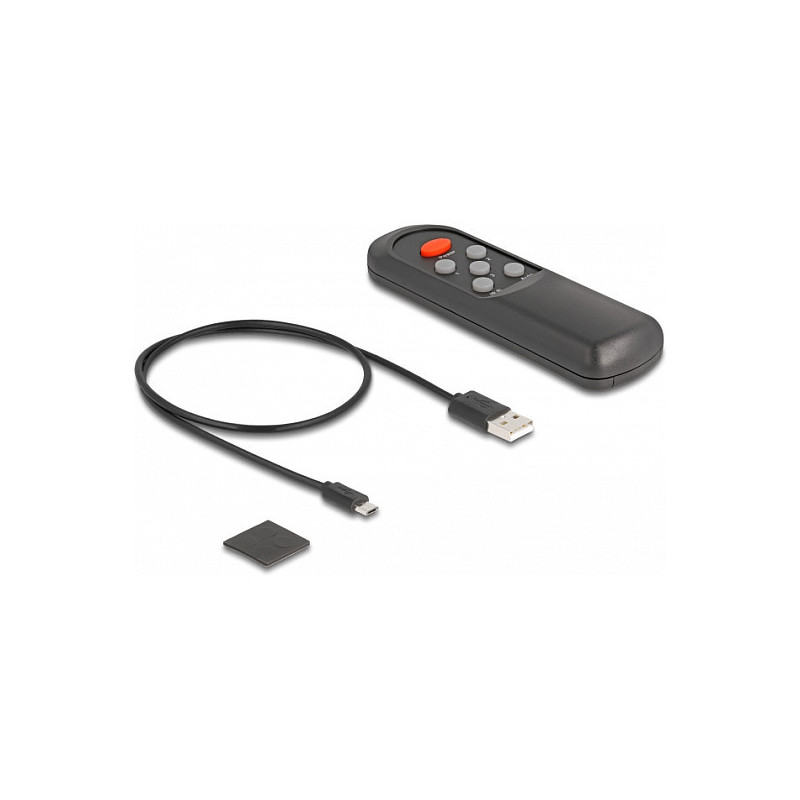

Feature: Remote control included
Feature: Manual
Cables included: USB
