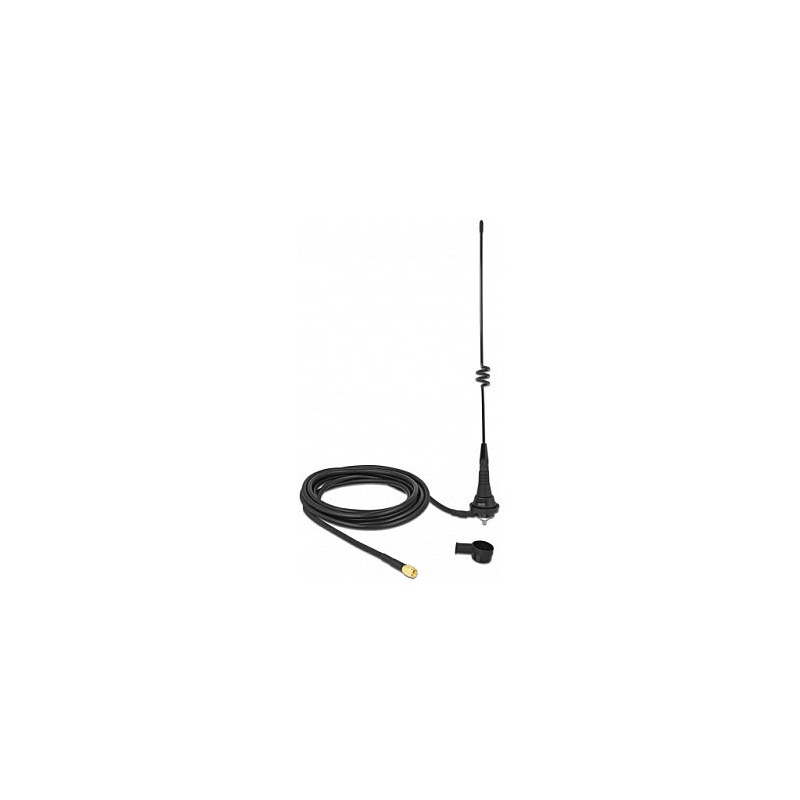

DeLOCK 12722 network antenna

DeLOCK 12722. Antenna gain level (max): 4.5 dBi, Frequency band: 0.868 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Female. Width: 33 mm, Depth: 33 mm, Height: 210 mm
This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.
LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.

Performance

Frequency band: 0.868 GHz
Impedance: 50 Ω
Antenna gain level (max): 4.5 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: Black
Power handling: 100 W
Cable length: 2.5 m
Cable type: RG-58 C/U
Purpose: Indoor outdoor

Operational conditions

Operating temperature (T-T): -50 - 70 °C

Weight dimensions

Width: 33 mm
Depth: 33 mm
Height: 210 mm
