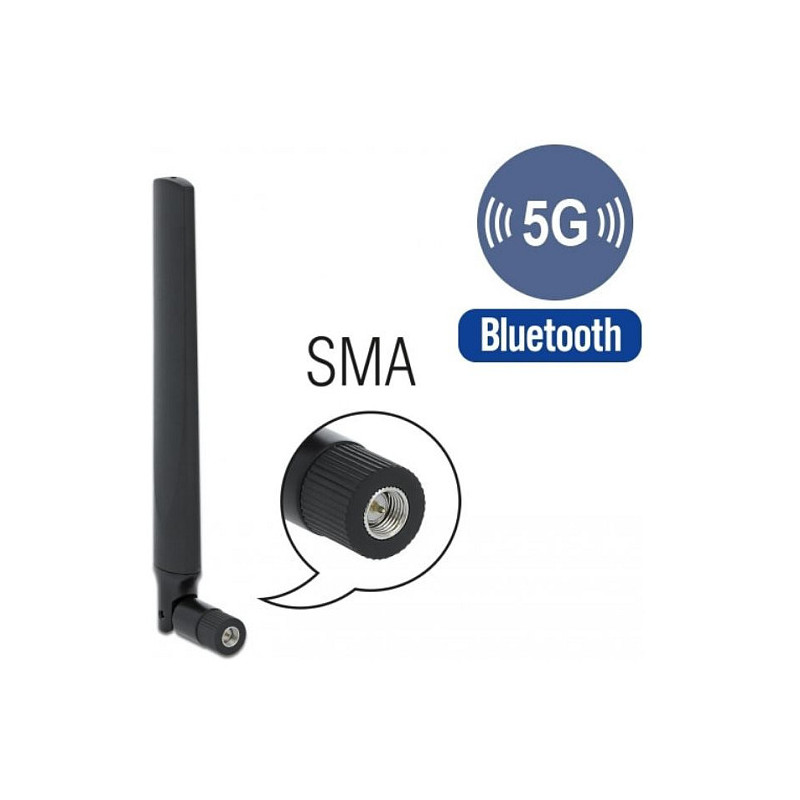

DeLOCK 12634 network antenna

DeLOCK 12634. Antenna gain level (max): 1.3 dBi, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Width: 21.5 mm, Depth: 13.5 mm, Height: 183.9 mm. Package type: Box. Quantity per pack: 1 pc(s)
This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.

Performance

Impedance: 50 Ω
Antenna gain level (max): 1.3 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 3 - 6
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Maximum outdoor range: 617 - 798 MHz803 - 960 MHz1452 - 1496 MHz1710 - 2270 MHz2300 - 2690 MHz3300 - 3800 MHz4200 - 5000 MHz

Operational conditions

Operating temperature (T-T): -10 - 55 °C

Weight dimensions

Width: 21.5 mm
Depth: 13.5 mm
Height: 183.9 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
