DeLOCK 12632 network antenna

DeLOCK WLAN Dual Band 802.11 ac/ax/a/b/g/n Antenna N jack 6.2 - 8.0 dBi 39.5 cm omnidirectional fixed wall and pole mount outdoor white. Antenna gain level (max): 8 dBi, Frequency band: 2400 - 5875 GHz, Gain: 6.2 / 8 dBi. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Compliance certificates: RoHS. Height: 395 mm, Diameter: 2.6 mm, Weight: 297 g. Package type: Box

This waterproof antenna by Delock allows the usage of different WLAN bands outdoors.

Performance

Frequency band: 2400 - 5875 GHz
Gain: 6.2 / 8 dBi
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 17°
Antenna gain level (max): 8 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: N-type
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3 - 5
Product colour: White
Housing material: Glass Fibre Reinforced Plastic (GFRP)
Power handling: 100 W
Mounting: Pole
Purpose: Outdoor
Type of clamp: U-bolt

Certificates

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight & dimensions

Height: 395 mm
Diameter: 2.6 mm
Weight: 297 g

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)

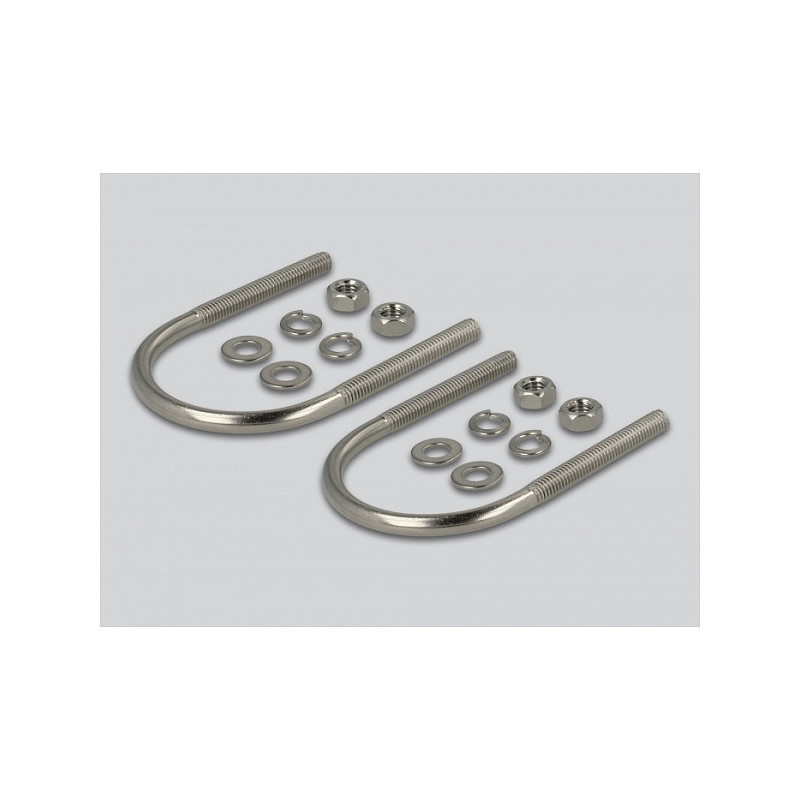

Feature: Mounting kit

Logistics data

Country of origin: Taiwan
