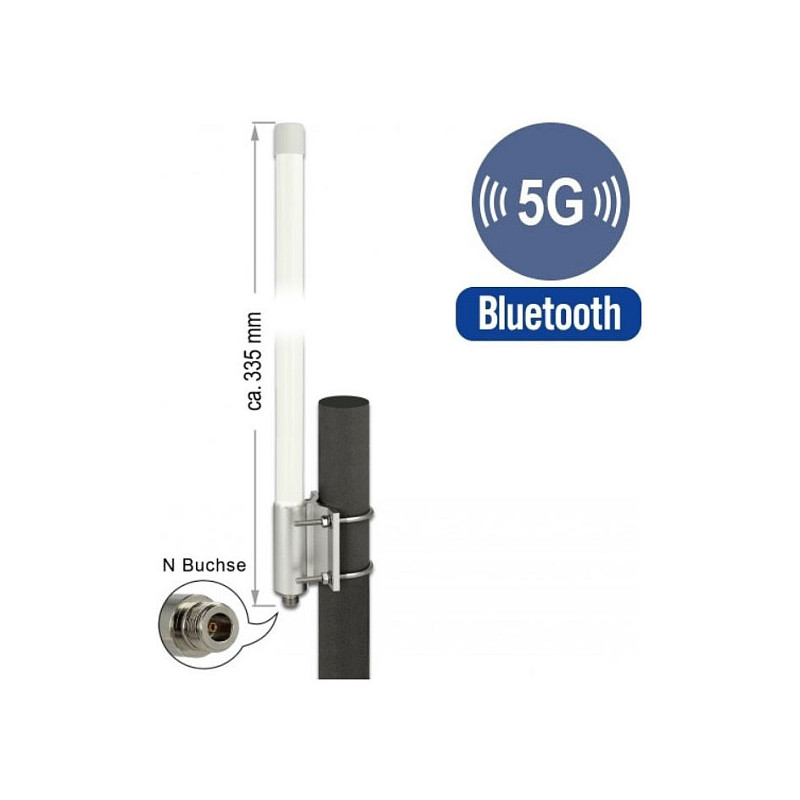

DeLOCK 12631 network antenna

DeLOCK 12631. Antenna gain level (max): 2.93 dBi, Impedance: 50 Ω, Horizontal beam width: 360°. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Male. Power consumption (max): 100 W. Height: 335 mm, Diameter: 2.7 cm, Weight: 284 g. Quantity per pack: 1 pc(s)
This waterproof antenna by Delock allows the usage of different 5G and LTE bands outdoors. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.

Performance

Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 17°
Antenna gain level (max): 2.93 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: N-type
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 3 - 5
Product colour: White
Housing material: Carbon Fibre Reinforced Polymer (CFRP)

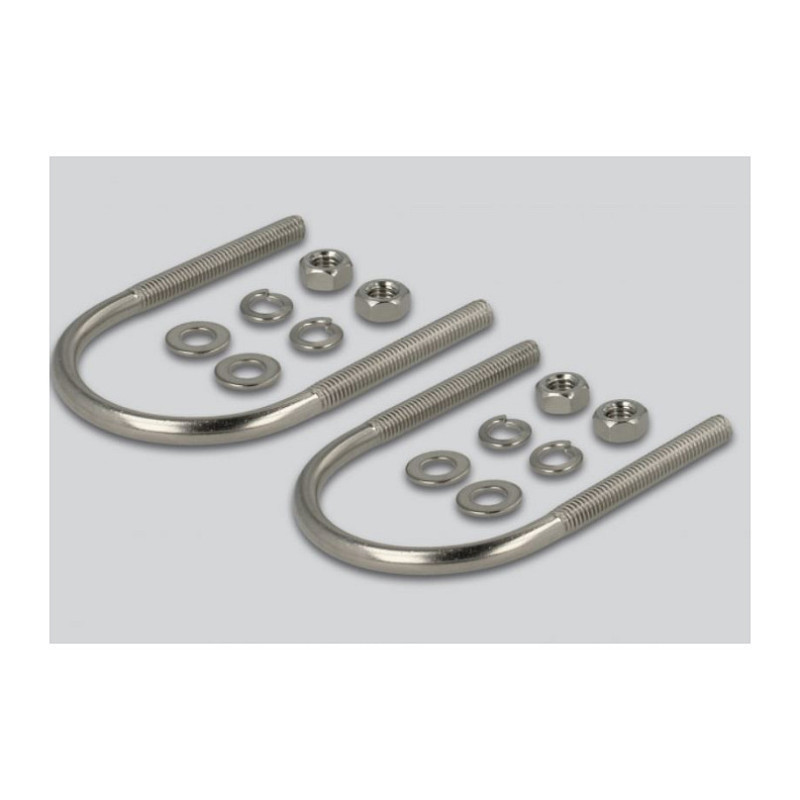

Mounting: Wall/Pole
Maximum indoor range: 617 - 798 MHz803 - 960 MHz1452 - 1496 MHz1710 - 2200 MHz2300 - 2690 MHz3300 - 3800 MHz4200 - 5000 MHz

Power

Power consumption (max): 100 W

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight dimensions

Height: 335 mm
Diameter: 2.7 cm
Weight: 284 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85177100
