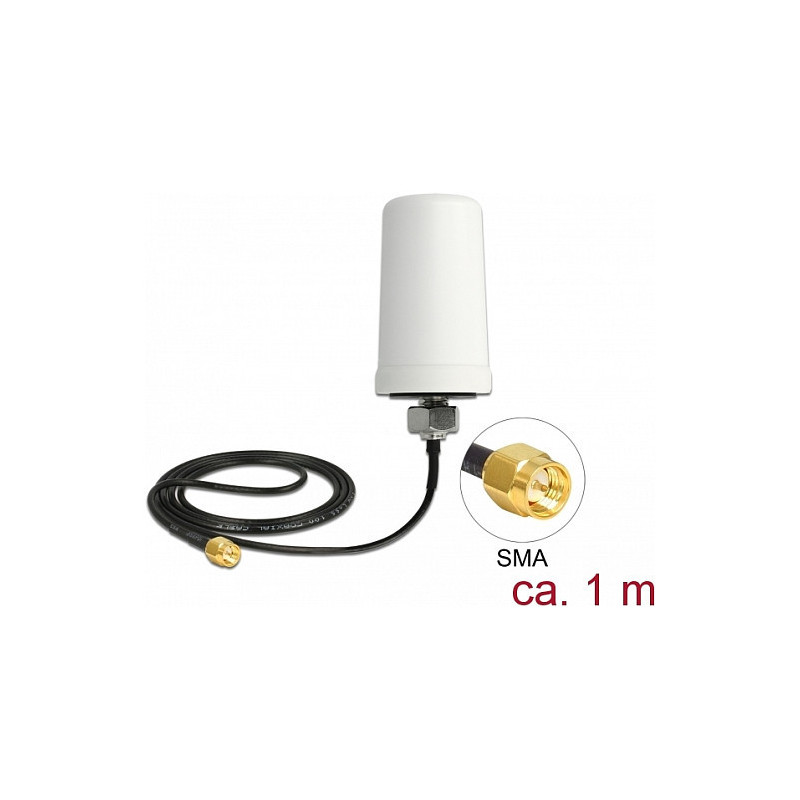

DeLOCK 12545 network antenna

DeLOCK 12545. Antenna gain level (max): 2 dBi, Frequency band: 0.698 - 0.960, 1.710 - 2.170, 2.300 - 2.700 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Width: 45 mm, Depth: 45 mm, Height: 77 mm. Package type: Box. Quantity per pack: 1 pc(s)
This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa.

Performance

Frequency band: 0.698 - 0.960, 1.710 - 2.170, 2.300 - 2.700 GHz
Impedance: 50 Ω
Antenna gain level (max): 2 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.5 - 6
Product colour: Black, White
Housing material: Polycarbonate (PC)
International Protection (IP) code: IP67
Cable length: 1 m
Cable type: ULA 100
Purpose: Indoor outdoor

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight dimensions

Width: 45 mm
Depth: 45 mm
Height: 77 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85177100
