DeLOCK 11488 video switch

DeLOCK 11488. Video port type: HDMI, USB port type: USB Type-A/USB Type-B. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 100-240 V, AC adapter frequency: 50-60 Hz, AC adapter input current: 0.8 A. Width: 160 mm, Depth: 210 mm, Height: 44 mm. Quantity per pack: 1 pc(s)

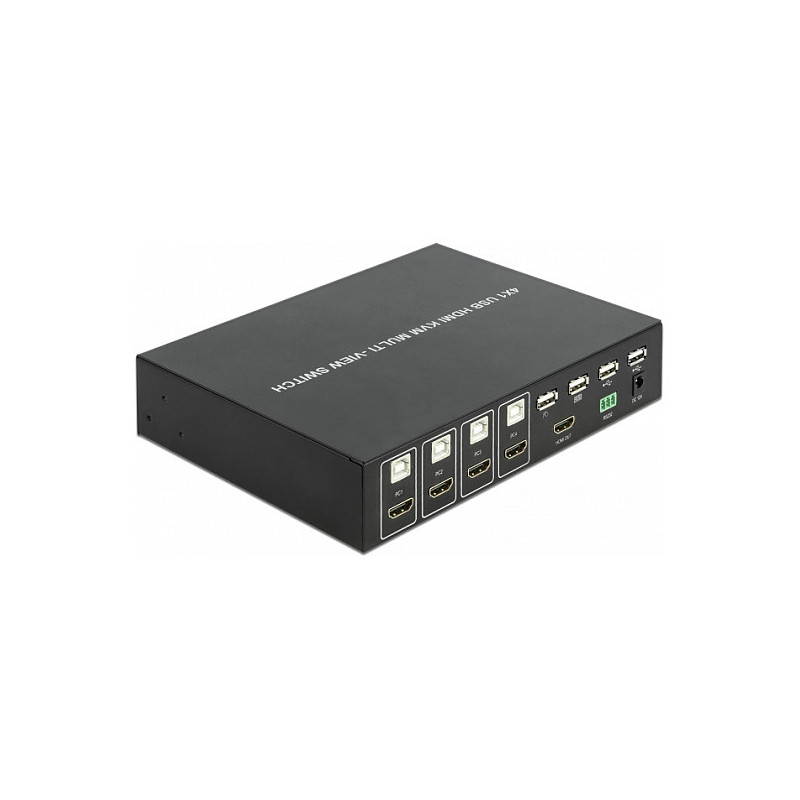

This KVM switch by Delock is a convenient solution for connecting four computers with HDMI output to one HDMI monitor. Furthermore, four USB 2.0 Type-A ports can be used to connect a mouse, keyboard, printer or USB drive.

4 in 1 Multiview Mode
In Multiview Mode, all 4 PCs are displayed on one monitor simultaneously. Operating the keyboard and mouse is possible without switching. When the mouse is moved over one of the desktops, it is activated for input. Alternatively, the Sync Mode can be turned on, where all connected PCs receive the same signals from the input devices.

Flexible Control
The active computer can be selected by mouse button, keyboard hotkey, button on the device or infrared remote control.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 5
HDMI in: 4
Number of HDMI outputs: 1
USB port type: USB Type-A/USB Type-B
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: HDCP
Maximum refresh rate: 60 Hz
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Bandwidth: 2.25 Gbit/s
LED indicators: Yes
Maximum resolution: 1920 x 1080 pixels
HDCP version: 1.2

Power

AC input voltage: 100-240 V
AC adapter frequency: 50-60 Hz
AC adapter input current: 0.8 A
AC adapter output voltage: 12 V
AC adapter output current: 2 A

Weight & dimensions

Width: 160 mm
Depth: 210 mm
Height: 44 mm

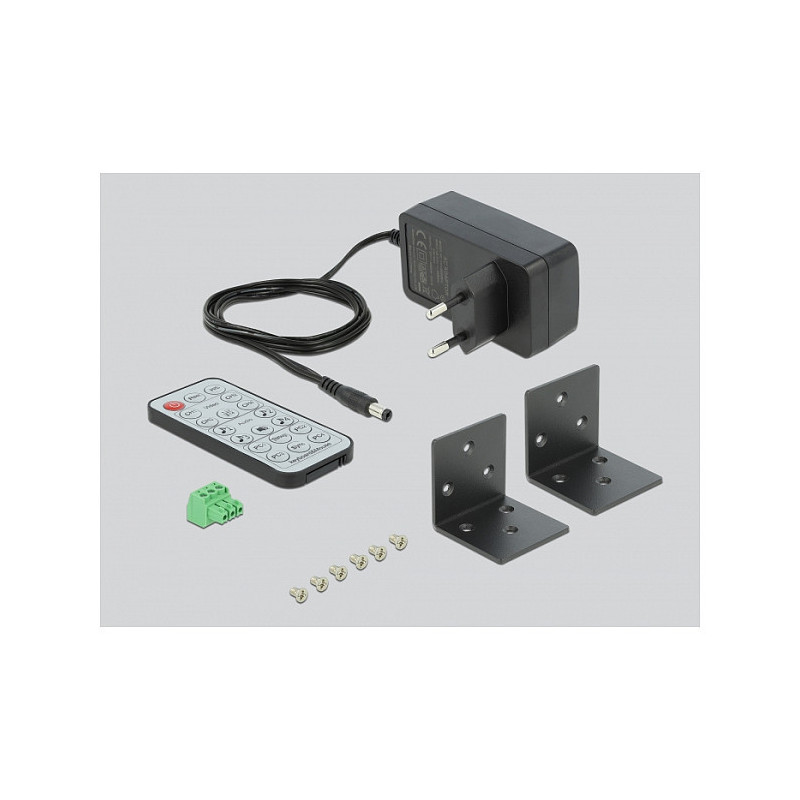

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Remote control included
Feature: Manual
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 85176990
Country of origin: China
