ATEN CS1716I-AT-G KVM switch

ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Security algorithms: 128-bit RC4, SSL/TLS. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 11 W

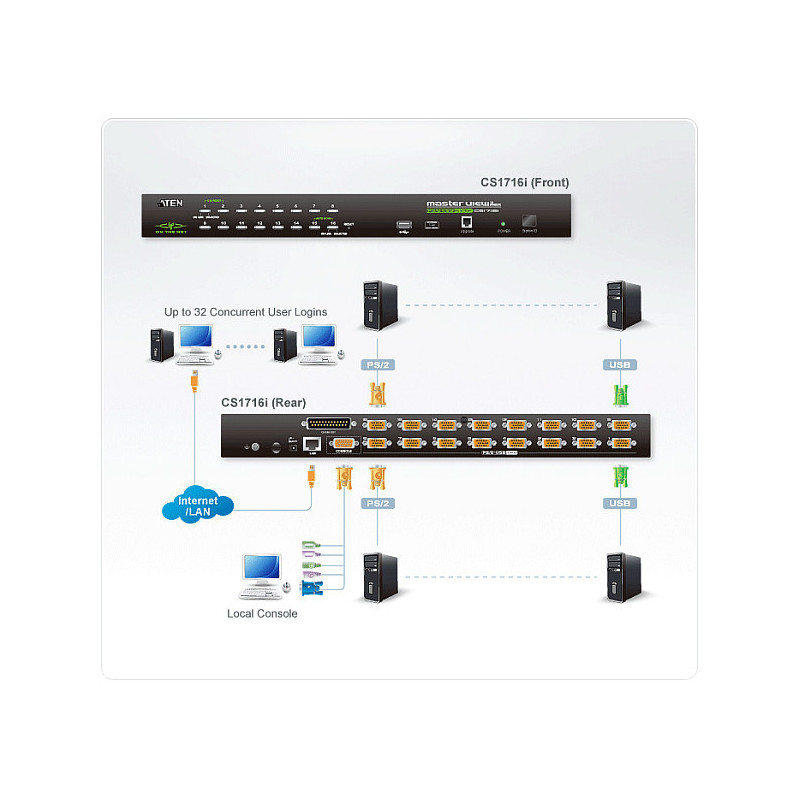

The CS1716i is a 16-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1716i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature "Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Ports & interfaces

Number of computers controlled: 256
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 16
Console ports: USB A, VGA (D-Sub)
Console USB ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Security algorithms: 128-bit RC4, SSL/TLS

Performance

HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Video bandwidth: 60 Hz
Scan interval: 1,255 s
Feature: DDC2B support
Feature: HDCP
Feature: Hot-Plug support
Feature: Daisy chain
Number of users: 32 user(s)
Feature: Firmware upgradeable

Design

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys

Display

Feature: On Screen Display (OSD)

Power

Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 11 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 437.2 mm
Depth: 159.6 mm
Height: 44 mm
Weight: 3.59 kg

Packaging data

Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 3.98 kg

Packaging content

Cables included: DC, KVM
Feature: Quick installation guide
Feature: Manual
Feature: AC adapter included
Feature: Software included
Feature: Rack mount kit

Logistics data

Master (outer) case net weight: 10.8 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 12.6 kg
Products per master (outer) case: 3 pc(s)
