Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

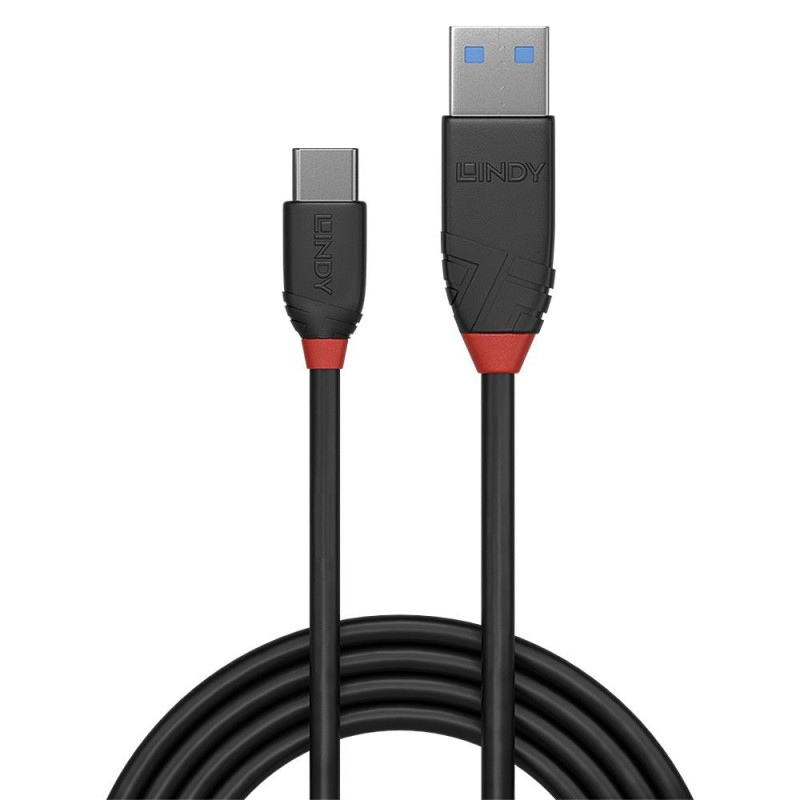

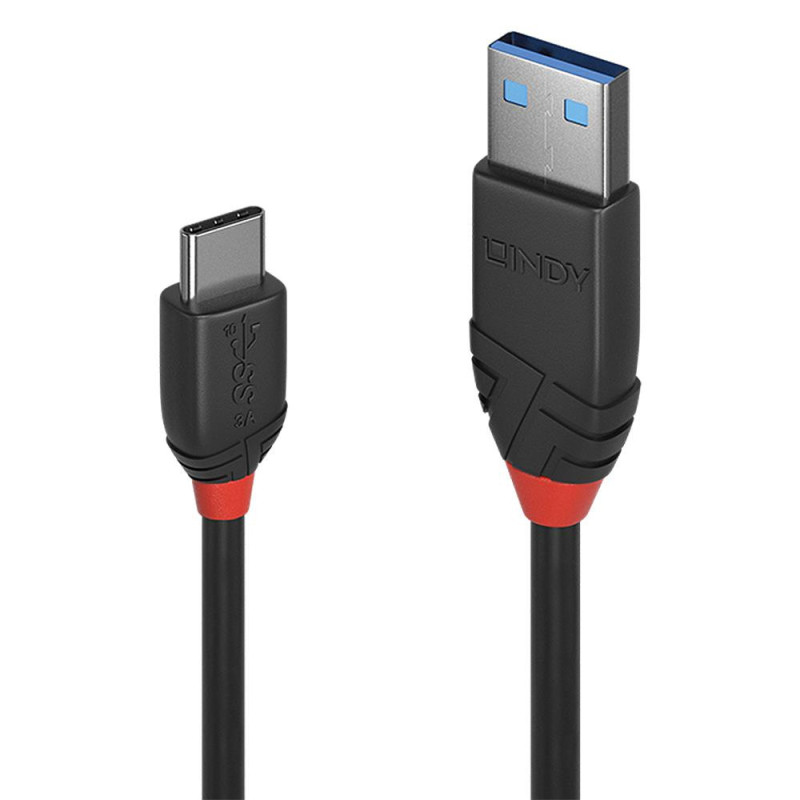

The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| AWG wire size | 26/30/30 |
| Bend radius (min) | 45 mm |
| Cable diameter | 4.5 mm |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 0.5 m |
| Cable type | Round cable |
| Certification | RoHS, REACH, UL |
| Conductor material | Tinned copper |
| Connector 1 | USB A |
| Connector 1 dimensions (WxDxH) | 15.5 x 35.1 x 7.8 mm |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 2 dimensions (WxDxH) | 11 x 25.5 x 7.3 mm |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Contact material | Phosphor bronze |
| Harmonized System (HS) code | 84733080 |
| Maximum data transfer rate | 10 Gbit/s, 10000 Mbit/s |
| Model name | 0.5m USB 3.2 Type A to C Cable, 10Gbps, Black Line |
| Nominal attenuation | 0.5Mhz ?" 15Ghz 40db |
| Operating temperature (T-T) | -20 - 80 °C |
| Package type | Polybag |
| Plug and Play | Yes |
| Product colour | Black |
| Product Net Weight | 0.02 kg |
| Quantity per pack | 1 pc(s) |
| Shipping Box Depth | 15 cm |
| Shipping Box Height | 1 cm |
| Shipping Box Weight | 0.03 kg |
| Shipping Box Width | 13.5 cm |
| Storage temperature (T-T) | -25 - 85 °C |
| Summary | Lindy 0.5m USB 3.2 Type A to C Cable, 10Gbps, Black Line. Cable length: 0.5 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Unit Box Height | 0.01 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.135 |
| Unit Calculated Volume | 0.0002025 cubm |
| Unit Calculated Weight | 0.03 kg |
| Units per Shipping Box | 1 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Vendor Homepage | https://www.lindy.co.uk/cables-adapters-c1/usb-c449/0-5m-usb-3-2-type-a-to-c-cable-10gbps-black-line-p11446 |
