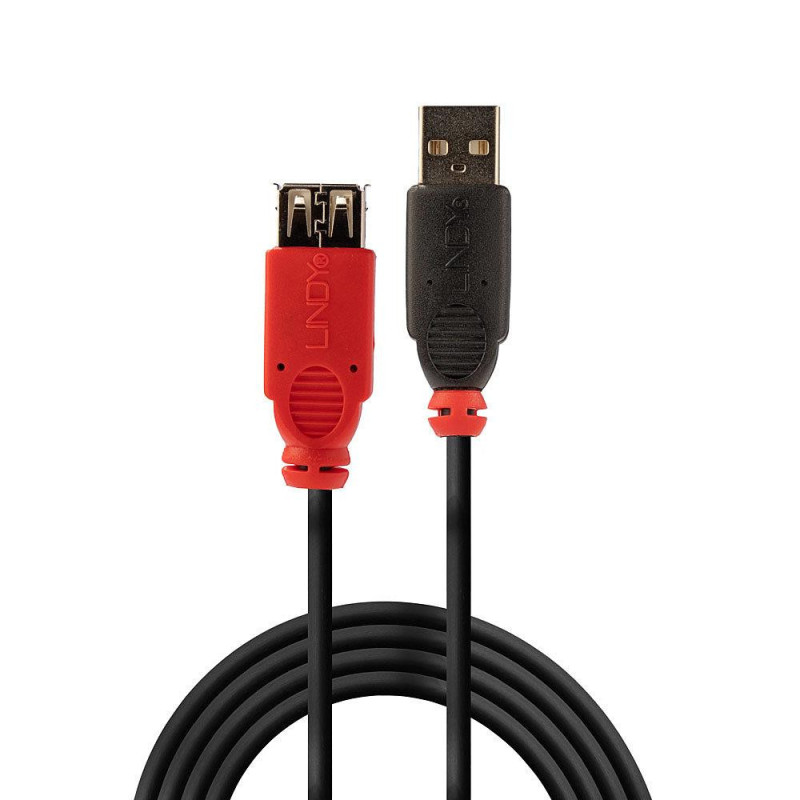

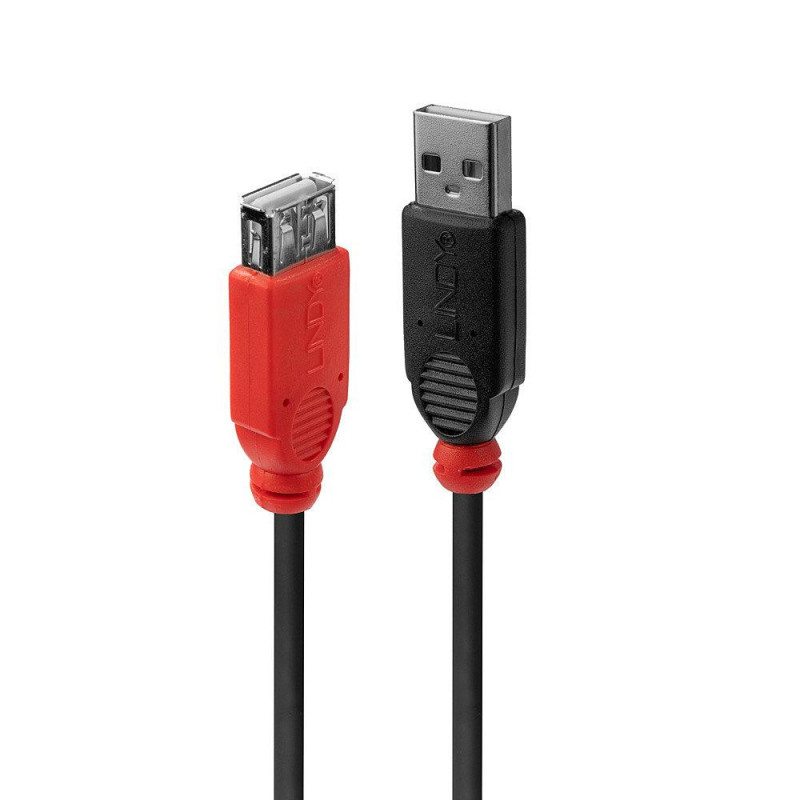

The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.
With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.
The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
- 5 metre USB 2.0 Active Extension Repeater Lead
- Supports transfer rates up to 480Mbps
- For even greater distances simply connect up to 5 cables in series
- Plug and Play
- 2 year warranty
| AWG wire size | 24/28 |
| Bend radius (min) | 48 mm |
| Cable diameter | 4.8 mm |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 5 m |
| Cable type | Round cable |
| Certification | CE, UKCA, FCC, RoHS & REACH |
| Conductor material | Tinned copper |
| Connector 1 | USB A |
| Connector 1 dimensions (WxDxH) | 15 x 40 x 6 mm |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 2 dimensions (WxDxH) | 15 x 45 x 8 mm |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Connector housing material | Plastic |
| Connector material | Nickel |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Contact material | Brass |
| Harmonized System (HS) code | 84733080 |
| Maximum data transfer rate | 0.48 Gbit/s, 480 Mbit/s |
| Model | 42817 |
| Model name | 5m USB 2.0 Active Extension Slim |
| Nominal attenuation | 24AWG: 93.25Ohm/km 28AWG: 237.25Ohm/km |
| Operating temperature (T-T) | 0 - 70 °C |
| Package depth | 146 mm |
| Package height | 38 mm |
| Package type | Blister |
| Package weight | 200 g |
| Package width | 214 mm |
| Plug and Play | Yes |
| Product colour | Black |
| Product Net Weight | 0.18 kg |
| Quantity per pack | 1 pc(s) |
| Shipping Box Depth | 26 cm |
| Shipping Box Height | 2 cm |
| Shipping Box Weight | 0.19 kg |
| Shipping Box Width | 23 cm |
| Storage temperature (T-T) | -10 - 80 °C |
| Summary | Lindy 5m USB 2.0 Active Extension Slim. Cable length: 5 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Transmission medium | Twisted pair |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.26 |
| Unit Box Width | 0.23 |
| Unit Calculated Volume | 0.001196 cubm |
| Unit Calculated Weight | 0.19 kg |
| Units per Shipping Box | 1 |
| USB version | USB 2.0 |
| Vendor Homepage | https://www.lindy.co.uk/usb-c4/5m-usb-2-0-active-extension-slim-p493 |
| Weight | 180 g |
