The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

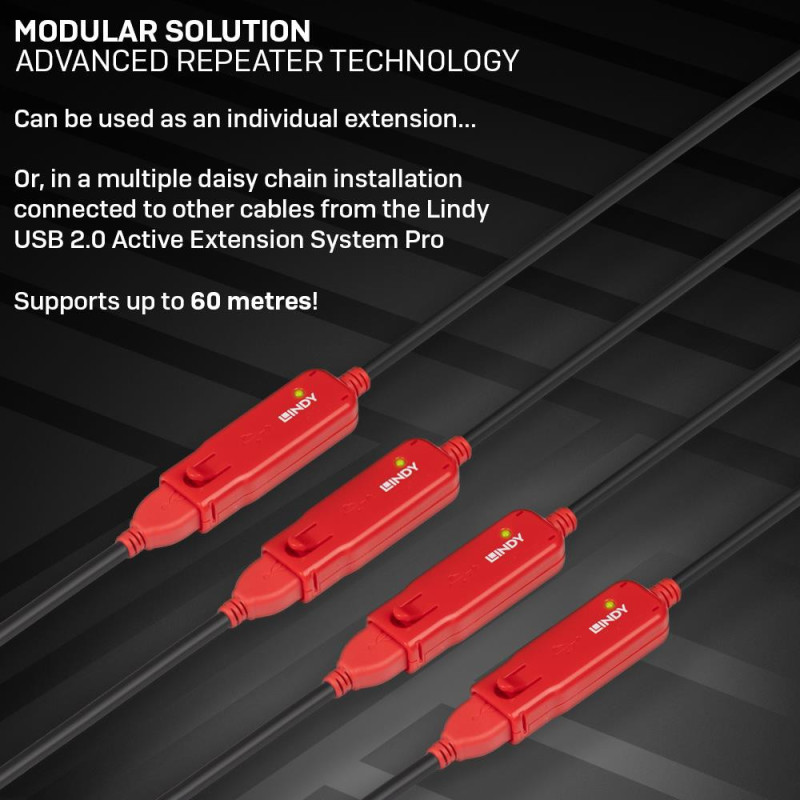

This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

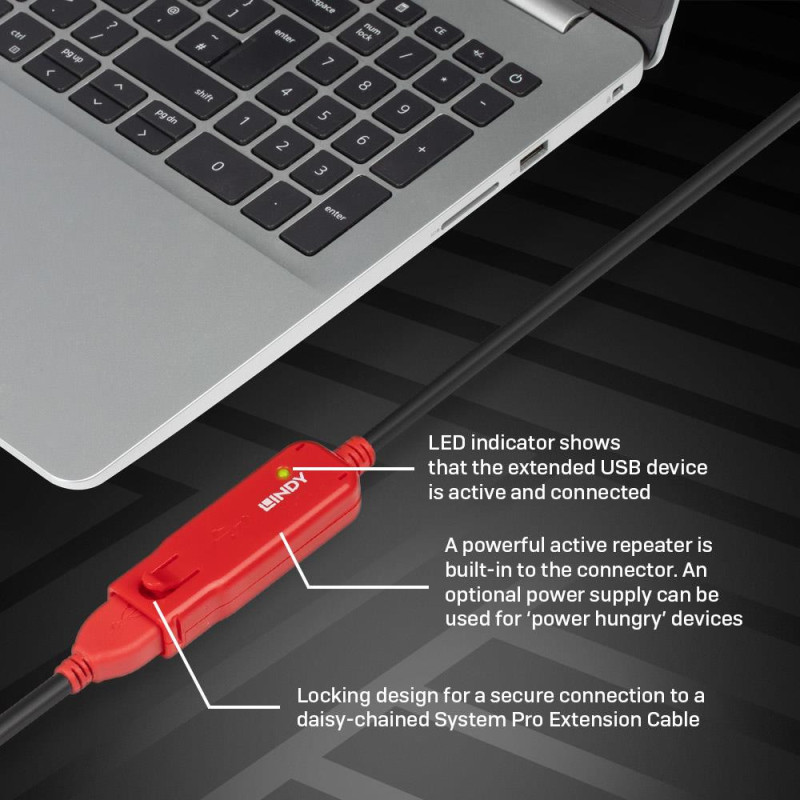

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
| Summary | Lindy 12m USB 2.0 Active Extension Pro. Cable length: 12 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Vendor Homepage | https://www.lindy.co.uk/usb-c4/12m-usb-2-0-active-extension-pro-p508 |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.2 |
| Bend radius (min) | 26 mm |
| Cable diameter | 5 mm |
| Cable length | 12 m |
| Connector 1 dimensions (WxDxH) | 15 x 43 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 64 x 13 mm |
| Weight | 420 g |
| AWG wire size | 26/20 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Conductor material | Tinned copper |
| Connector 1 | USB A |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Connector housing material | Plastic |
| Connector material | Gold/Nickel |
| Connector shield material | Aluminium |
| Contact material | Brass |
| Maximum data transfer rate | 0.48 Gbit/s, 480 Mbit/s |
| Nominal attenuation | 0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB |
| Product colour | Black |
| Transmission medium | Twisted pair |
| USB version | USB 2.0 |
| Package depth | 202 mm |
| Package height | 66 mm |
| Package type | Box |
| Package weight | 597 g |
| Package width | 238 mm |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Harmonized System (HS) code | 84733080 |
| Compatible operating systems | Win ME, 2000, XP, Vista Mac OS Linux |
| Model name | 12m USB 2.0 Active Extension Pro |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003055 cubm |
| Unit Calculated Weight | 0.59 kg |
