CABLE DP TO HDMI 1.8M / RVD-HI14C2 AXAGON

AXAGON RVD-HI14C2 HDMI-DisplayPort, 1.8m, 4K/30Hz, чорний



DisplayPort -> HDMI active cable - adapter AXAGON RVD-HI14C2 to connect HDMI monitor/TV/projector to the computer with the DisplayPort output.



The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.



Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. It is an ideal solution - you don't need a HDMI cable and converter. With this active cable everything is integrated into one compact unit.



The cable is only one-way, i.e. DisplayPort to HDMI, not otherwise.



Input:

• DisplayPort v1.2

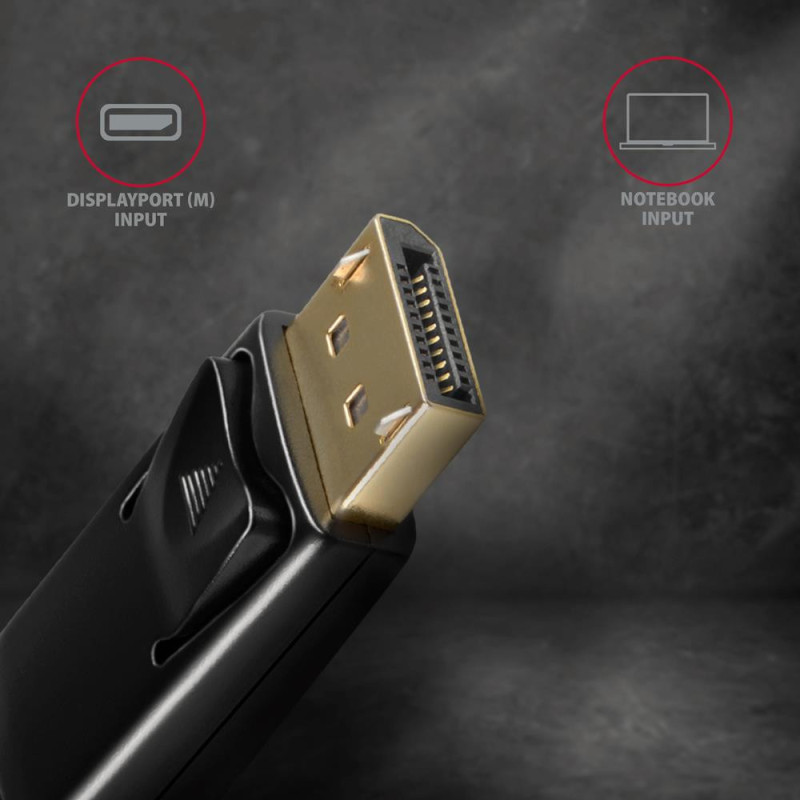

• DP male connector with latch (M)

• connector latch control button



Output:

• HDMI v1.4b

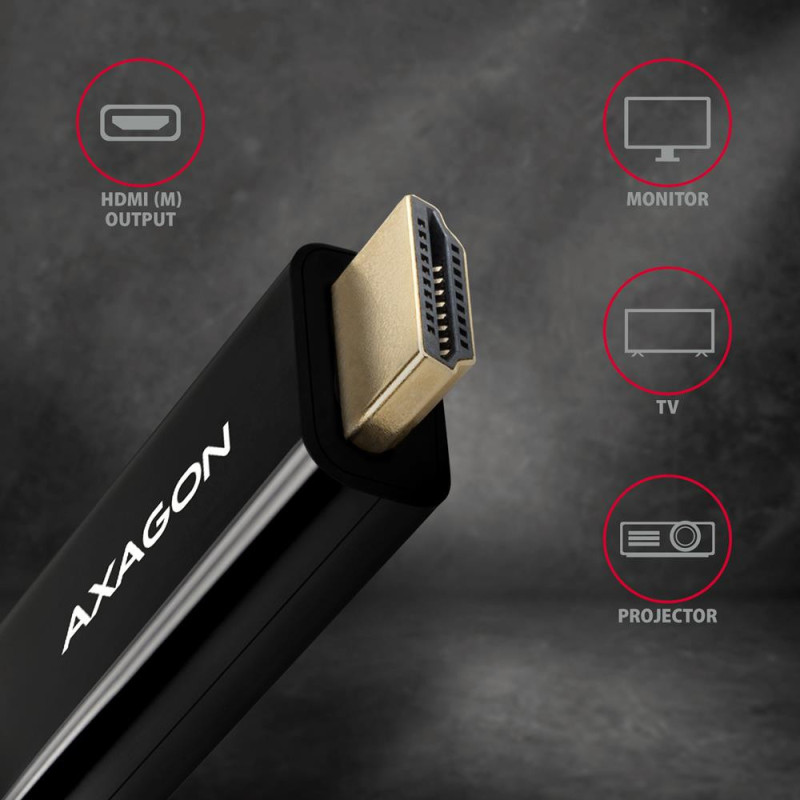

• HDMI A (M) male connector



Supported resolutions:

Resolution and frequency depend on monitor and graphics adapter.

• max. 4096 x 2160 (19:10) @30Hz DCI 4K

• 3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)

• 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)

• 3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)

• 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)

• 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)

• 2560 x 2048 (5:4) QSXGA

• 2560 x 1920 (4:3)

• 2560 x 1600 (16:10) WQXGA

• 2560 x 1440 (16:9) @60Hz WQHD

• 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)

• 2048 x 1536 (4:3) QXGA

• 2048 x 1152 (16:9) QWXGA

• 1920 x 1440 (4:3)

• 1920 x 1200 (16:10) WUXGA

• 1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p

• 1856 x 1392 (4:3)

• 1792 x 1344 (4:3)

• 1680 x 1050 (16:10) WSXGA+

• 1600 x 1200 (4:3) UXGA

• 1600 x 900 (16:9) HD+

• 1536 x 864 (16:9)

• 1440 x 900 (16:10) WXGA+

• 1400 x 1050 (4:3) SXGA+

• 1366 x 768 (16:9) HD

• 1360 x 768 (16:9) HD

• 1280 x 1024 (5:4) SXGA

• 1280 x 960 (4:3) SXGA-

• 1280 x 800 (16:10) WXGA

• 1280 x 768 (5:3) WXGA

• 1280 x 720 (16:9) HD/WXGA/720p

• 1280 x 600

• 1152 x 864 (4:3) XGA+

• 1024 x 768 (4:3) XGA

• 800 x 600 (4:3) SVGA



Other features:

• sound transfer support

• DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip

• supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area

• HPD (Hot-Plug-Detect) support - communication sequence controlling the connection / disconnection of the device while running

• HDCP 1.4 and 2.2

• support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)

• power supply via bus - no external power is needed

• gold-plated connectors for perfect contact and oxidation limitation

• adapter dimensions 45 x 21 x 12 mm

• total cable length incl. connector 1.8 m

• weight only 70 g



Supported operating systems:

• All versions of MS Windows, Mac OS X, Linux and other operating systems.

• It is a pure hardware converter, the transfer is provided only by a cable chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.

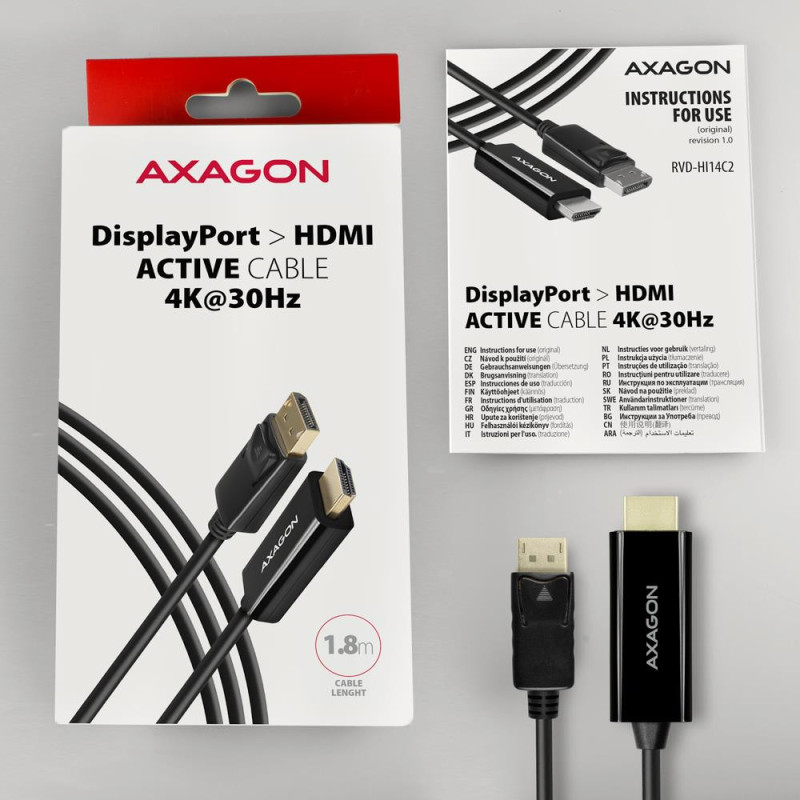

Package contains:

• DisplayPort > HDMI cable length 1.8 m,

• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

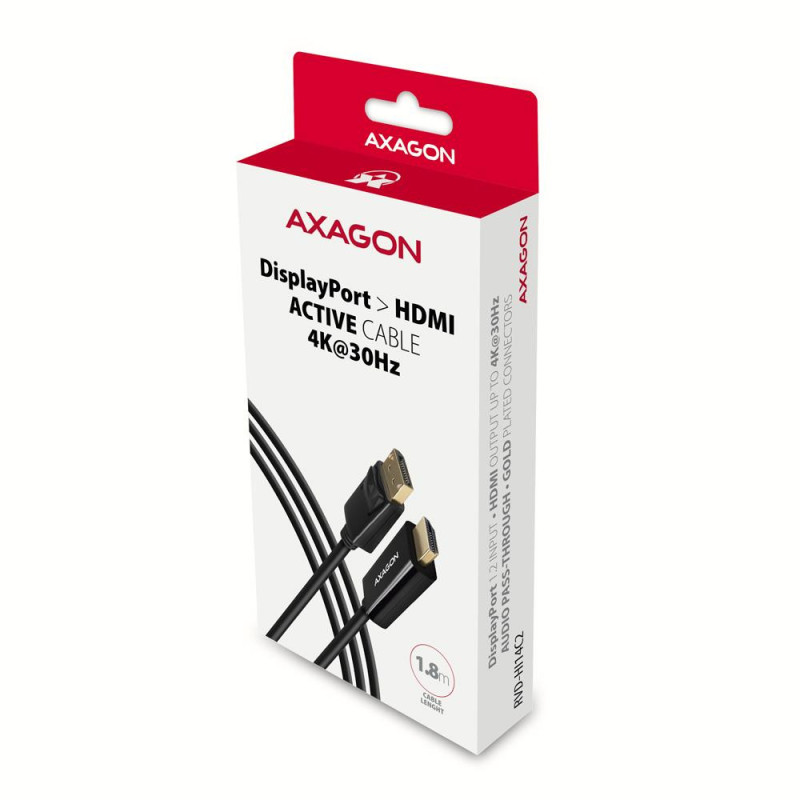

• packed in a cardboard box.
