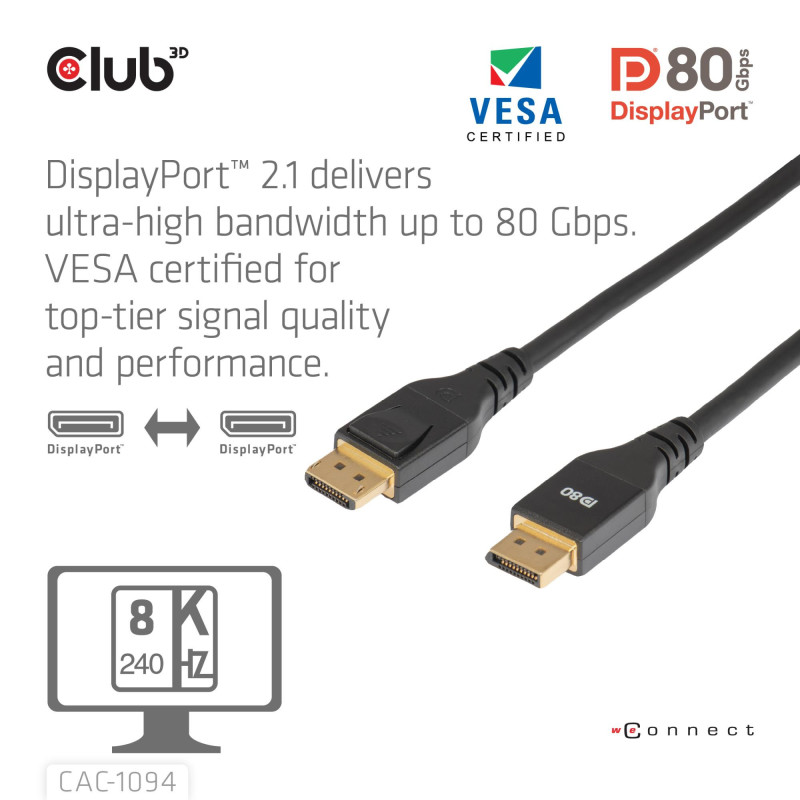

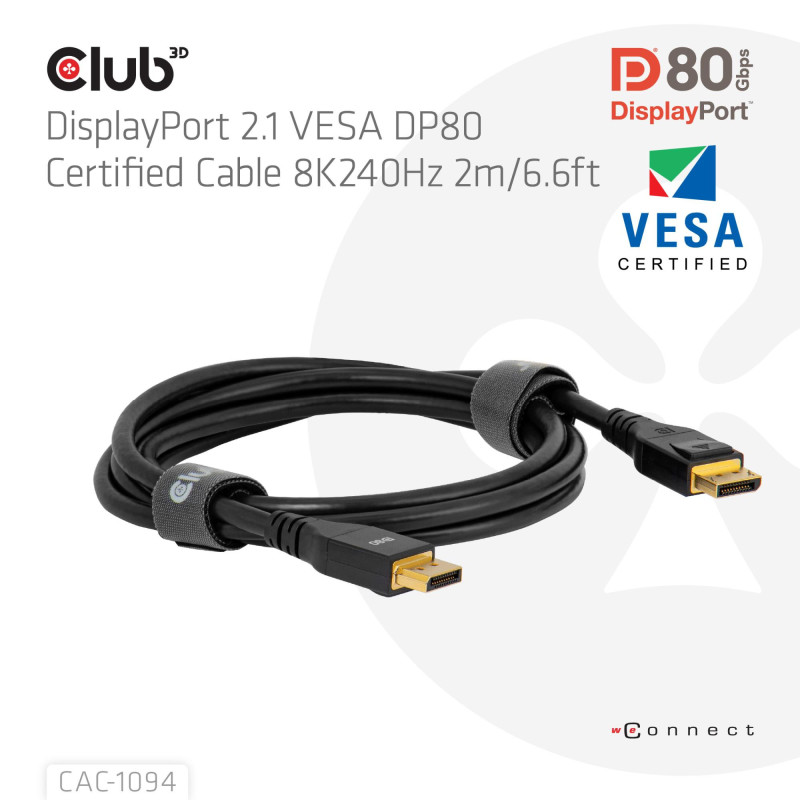

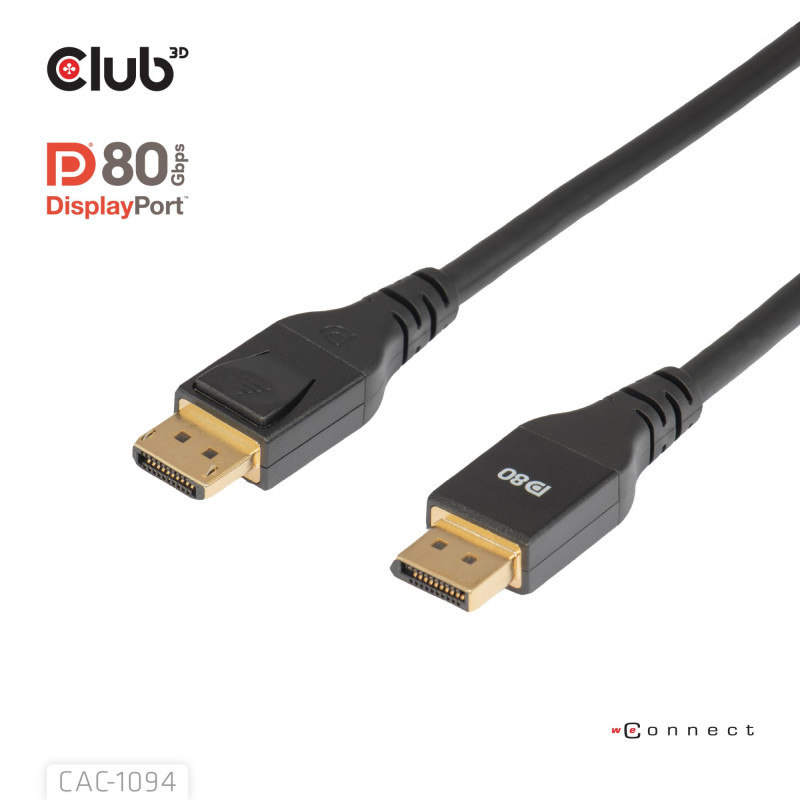

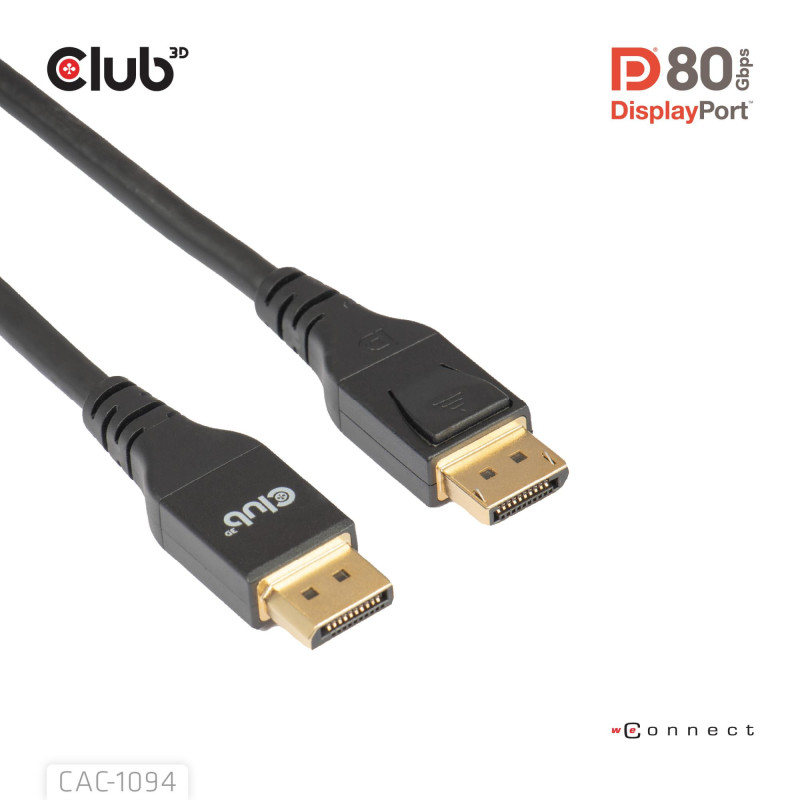

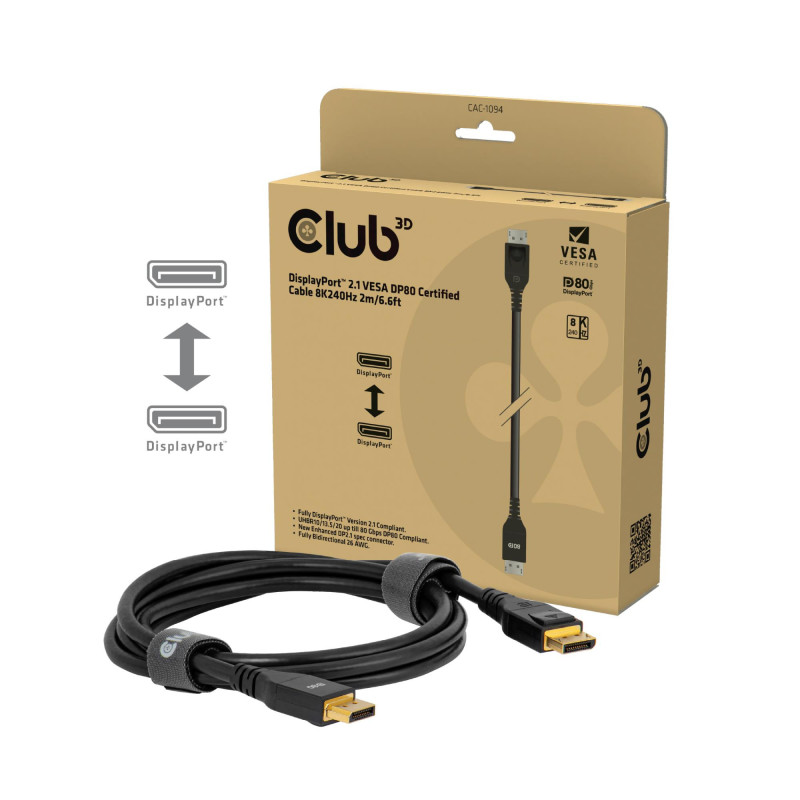

The Club 3D CAC-1094 DisplayPort™ 2.1 Cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 2.1 UHBR10/13.5/20 up till 80 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.Thanks to improvements in both the DisplayPort™ connector and cable design, the new VESA certified DP80 UHBR cables enable consumers to get the highest performance possible from their VESA certified devices. These new cables are backed by VESA's UHBR Certification Program, which provides added assurance that if your cable has the DP40 or DP80 logo from VESA, it will meet the specs for the highest data rates supported by current and future products certified by VESA.


• EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.
• HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
• VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality in a 26 AWG cable.
• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.

  • • EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.
  • • HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
  • • VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality in a 26 AWG cable.
  • • QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.

AWG wire size 26

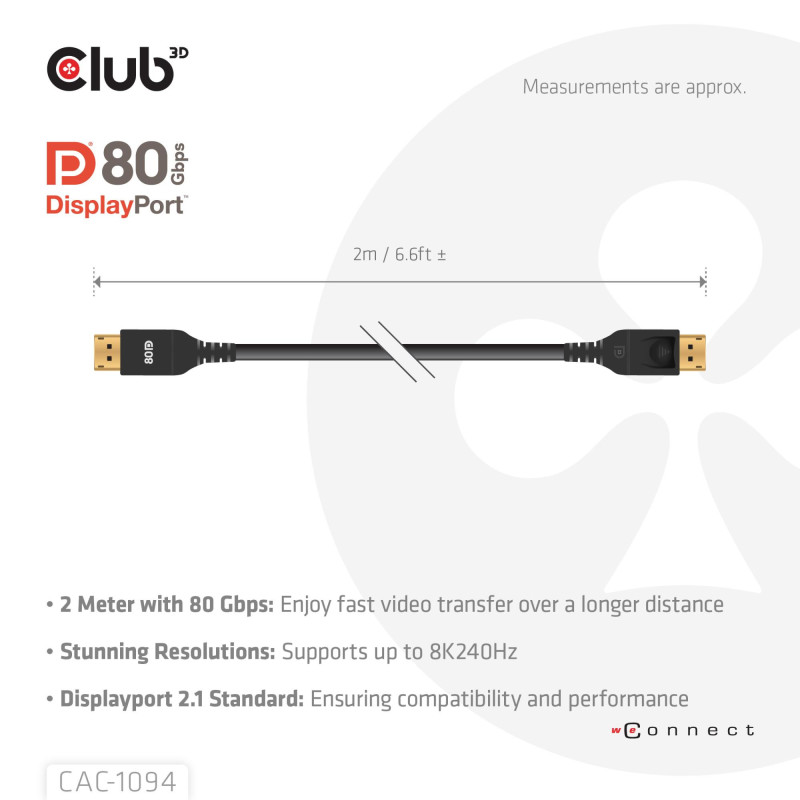

Cable length 2 m
Cable type Round cable
Connector 1 DisplayPort
Connector 1 form factor Straight
Connector 1 gender Male
Connector 2 DisplayPort
Connector 2 form factor Straight
Connector 2 gender Male
Connector contacts plating Nickel
Connector material Gold
Data transfer rate 80 Gbit/s
Display Stream Compression (DSC) Yes
DisplayPort version 2.1
Harmonized System (HS) code 8544 4290
Magnetically shielded Yes
Maximum refresh rate 240 Hz
Maximum resolution 10240 x 4320 pixels
Model name DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft
Package depth 175 mm
Package height 45 mm
Package weight 216 g
Package width 175 mm
Paper/cardboard packaging weight 63 g
Plastic packaging weight 3 g
Plug and Play Yes
Product colour Black
Summary CLUB3D DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Weight: 150 g. Package width: 175 mm, Package depth: 175 mm, Package height: 45 mm. Harmonized System (HS) code: 8544 4290
Supported graphics resolutions 10328 x 7760/7680 x 4320
Supported video modes 4320p
Unit Box Height 0.215
Unit Box Length 0.175
Unit Box Width 0.045
Unit Calculated Volume 0.001693 cubm
Unit Calculated Weight 0.21 kg
Units per Shipping Box 1
Vendor Homepage https://www.club-3d.com/en/detail/2699/displayportt_2.1_vesa_dp80_certified_cable_8k240hz_2m-6.56ft/
Weight 150 g
