AV Switch - LINDY 5 Port Seamless Passthrough Switch HDBaseT 4K@60Hz
Product reference:
14-4002888383387
Transmits and switches HDMI, DisplayPort and Type C inputs up to 70m using HDBaseT technology. Supports resolutions up to 3840x2160@60Hz and offers smooth switching and EDID control.
AV Switch - LINDY 5 Port Seamless Passthrough Switch HDBaseT 4K@60Hz
Product reference:
14-4002888383387
Transmits and switches HDMI, DisplayPort and Type C inputs up to 70m using HDBaseT technology. Supports resolutions up to 3840x2160@60Hz and offers smooth switching and EDID control.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY 5-Port Seamless Transmission Switch HDBaseT 4K@60Hz
Transmits and switches HDMI, DisplayPort and Type C inputs up to 70m using HDBaseT technology. Supports resolutions up to 3840x2160@60Hz and includes features such as seamless switching and EDID management.
- Supports multiple AV interfaces, including HDMI, DisplayPort, and USB Type C, providing versatile connectivity.
- Smooth switching and multiview functionality enhance the presentation experience.
- The maximum resolution of 3840x2160@60Hz ensures high-quality video output.
- Extends transmission distance up to 70m (229.66ft) using HDBaseT technology.
Features | |
|---|---|
| Product type | 5-port seamless delivery switch HDBaseT extender |
| AV interfaces | HDMI®, DisplayPort, Type C (Alt. mode) |
| Interface standard | HDMI® 2.0b, DP 1.4 |
| Supported bandwidth | 18Gbps |
Specifications | |
| Maximum distance | 70m (229.66ft) |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit |
| HDCP support | 2.2 |
| EDID transmission | Up to 14 selectable resolutions |
| Supported audio | HDMI® transmission, 2Ch stereo sound |
| Separate audio ports | 3.5mm |
| Serial interface | RS-232 transfer |
| Transmission protocol | HDBaseT |
| Transmission medium | Cat.6 |
| Chipset | MST9804 |
| Special features | Multiview, auto switching, smooth switching, EDID control, PoC (power via cable) |
Connectors | |

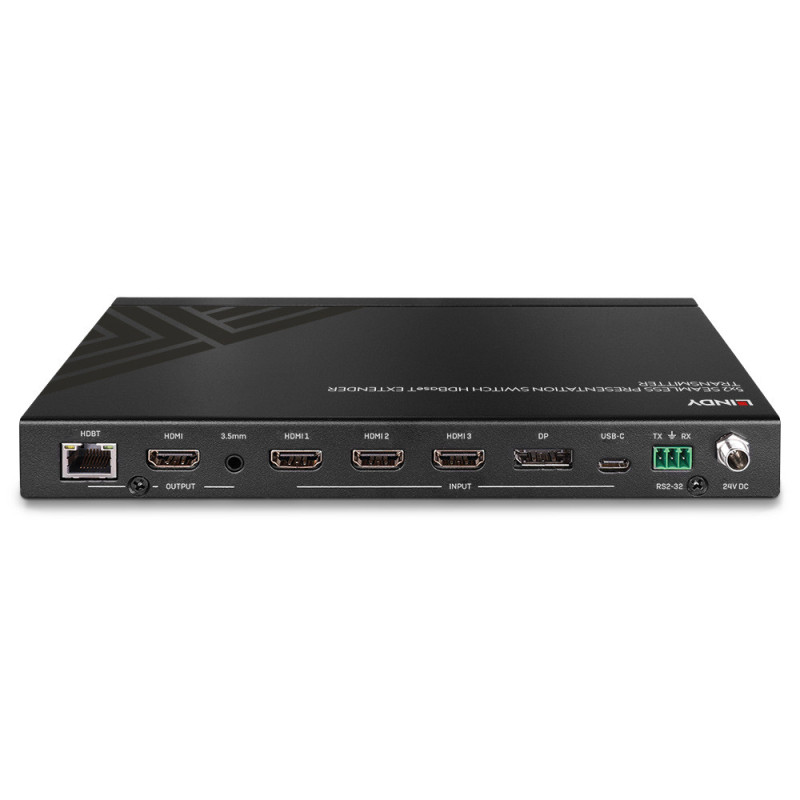

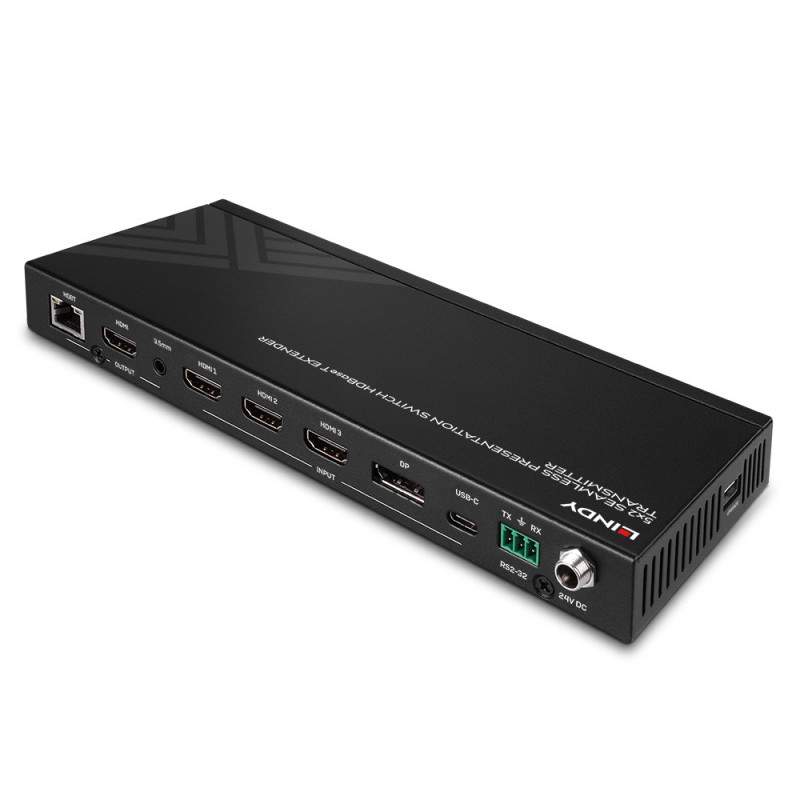

| Entrance | 3xHDMI® Type A (Female), DisplayPort (Female), USB Type C (Female) |
| Exit | HDBaseT RJ-45 (Female), HDMI® Type A (Female), 3.5mm Audio (Female) |
| Bi-directional ports | RS-232 3-Pin terminal block |
| Power connector | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 225x100x25mm (8.86x3.94x0.98in) |
| Housing | Metal |
| Net weight | 0.81kg (1.79lb) |
| Operating temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 10-50% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 360x260x60mm (14.17x10.24x2.36in) |
| Total weight | 1.02kg (2.25lb) |
| Product compliance | CE, UKCA, FCC, RoHS, REACH and California Proposition 65 |
Package contents | |
| |
www.lindy.lt
| Height | 60mm |
| Length | 360 mm |
| Weight | 1020 grams |
| Width | 260 mm |
