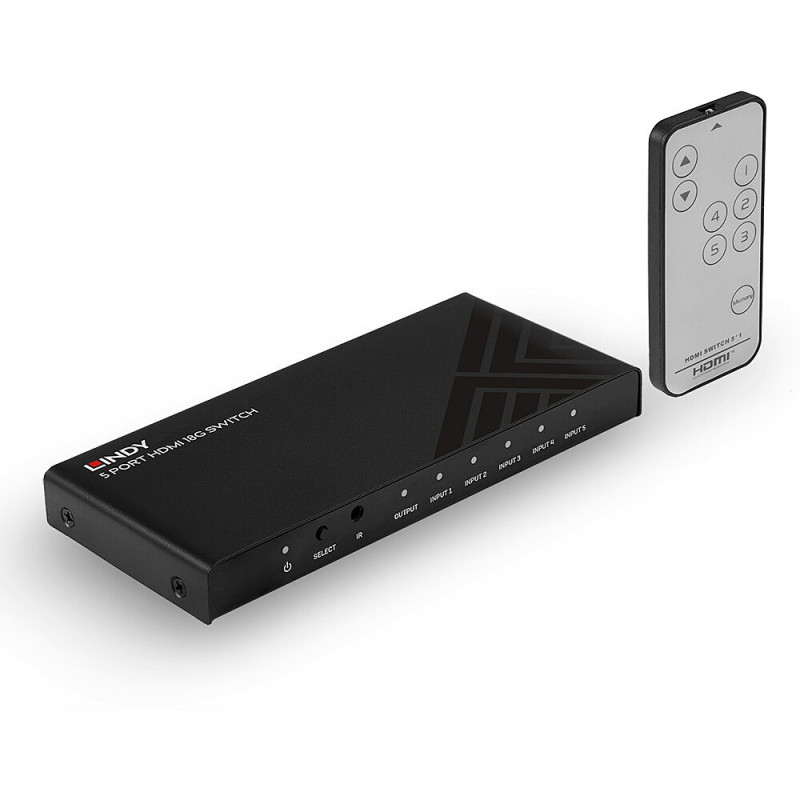

Switch between 5 HDMI 2.0 sources at 4K@60Hz resolution with 18Gbps bandwidth. The device supports HDR10, Dolby Vision and comes with a remote control for convenient use.
Switch between 5 HDMI 2.0 sources at 4K@60Hz resolution with 18Gbps bandwidth. The device supports HDR10, Dolby Vision and comes with a remote control for convenient use.




Switch between 5 HDMI 2.0 sources at 4K@60Hz resolution with 18Gbps bandwidth. The device supports HDR10, Dolby Vision and comes with a remote control for convenient use.
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Switch between 5 HDMI 2.0 source devices at 4K@60Hz resolution with 18Gbps bandwidth. Supports HDR10, Dolby Vision and has a remote control for convenient use.
Features | |
|---|---|
| Product type | AV Switch |
| Model | 5 Port HDMI 18G Switch |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI® 2.0 |
| Supported bandwidth | 18Gbps |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | HDCP 2.2 |
| Supported audio | Audio transmission |
| IR support | 38kHz |
| CEC support | Yes |
| Special features | HDR10 Dolby Vision support |
Connectors | |

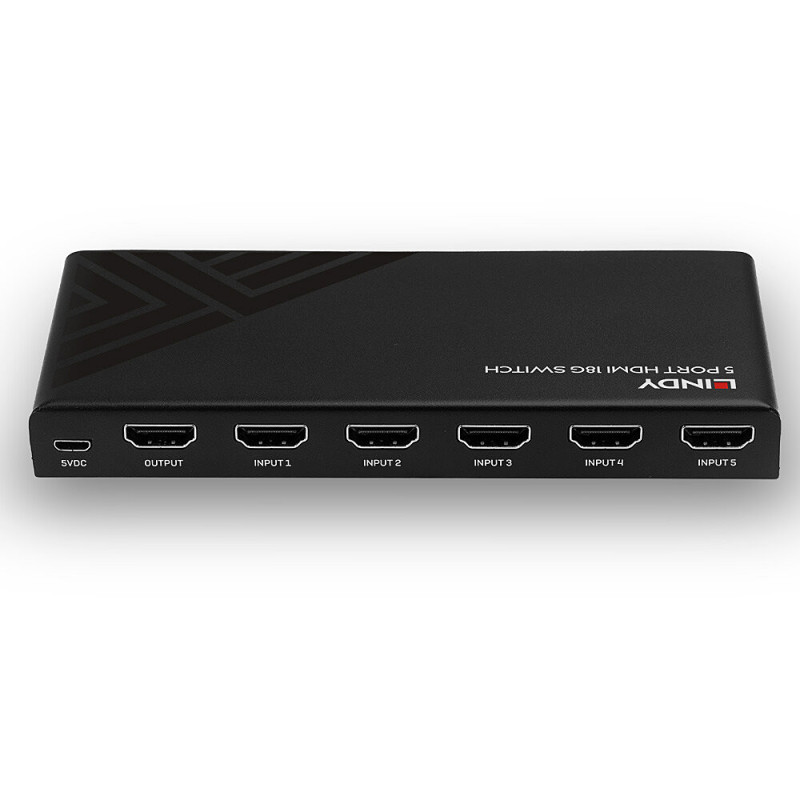

| Entrance | 5 x HDMI® Type A (Female) |
| Exit | HDMI® Type A (Female) |
| Power supply | Micro-B (Female) |
Physical properties | |
| Dimensions (approximate) | 154x23x69mm (6.06x0.91x2.72in) |
| Housing material | Metal |
| Net weight | 0.25kg (0.55lb) |
| Working temperature | 0°C - 45°C (32°F - 113°F) |
| Storage temperature | -10°C - 80°C (14°F - 176°F) |
| Humidity | 5 - 90% RH (non-condensing) |
| Power requirements | 5VDC 1A |
| Color | Black |
Additional information | |
| Packaging type | Cardboard box |
| Packaging dimensions | 207x56x187mm (8.15x2.2x7.36in) |
| Total weight | 0.46kg (1.01lb) |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
| Height | 69 mm |
| Length | 23 mm |
| Weight | 460g |
| Width | 154 mm |
