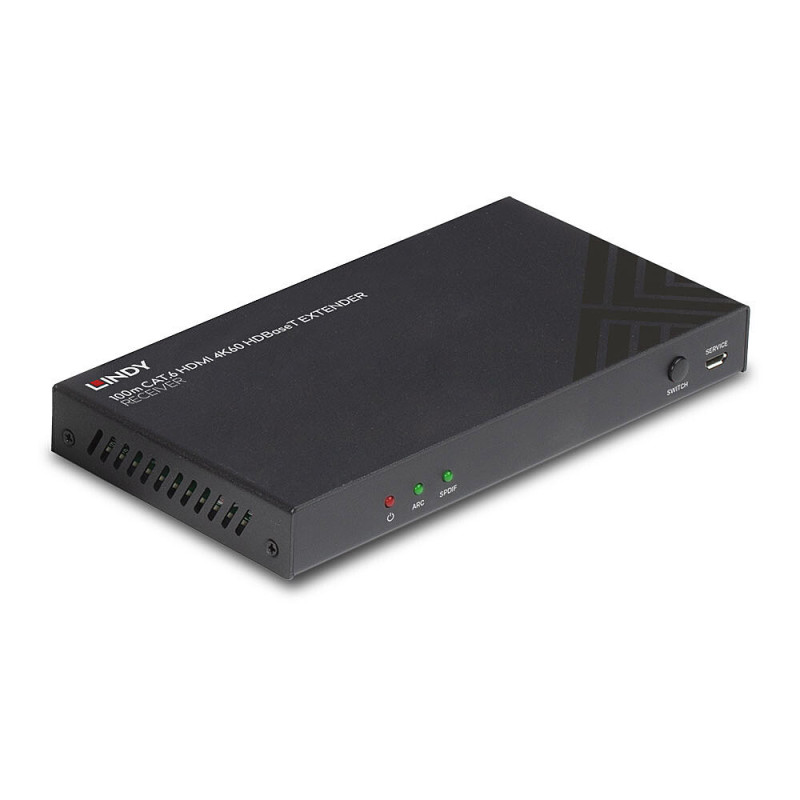

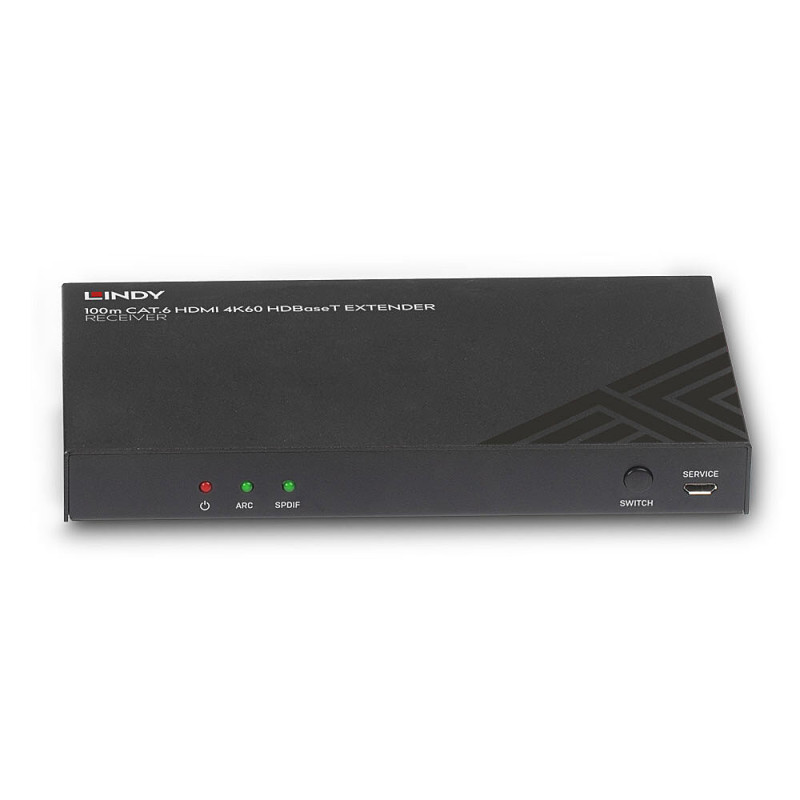

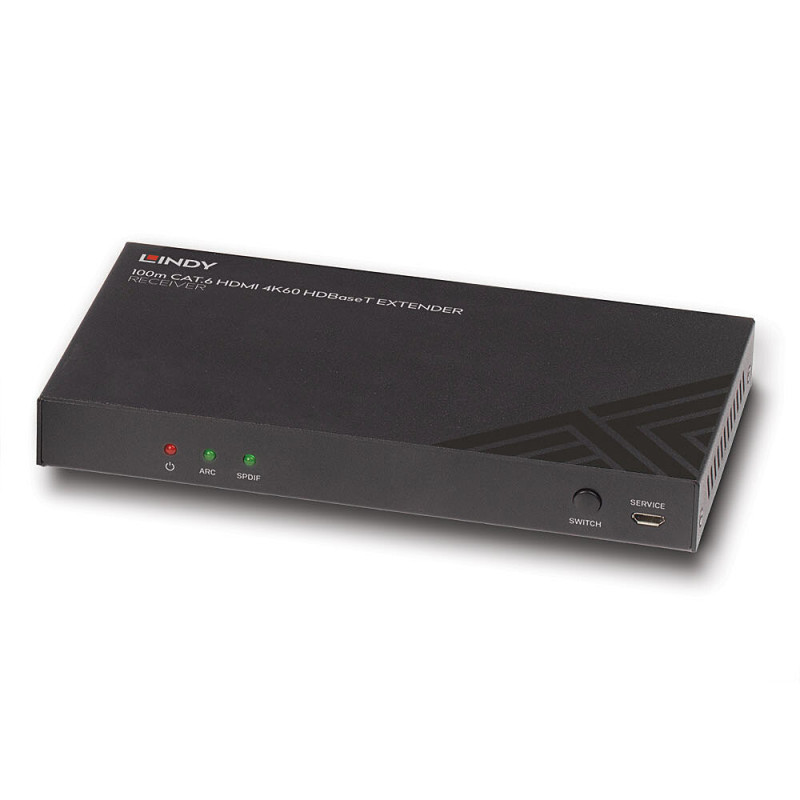

AV Receiver - LINDY Cat.6 HDMI 4K60 HDBaseT Receiver, Audio, IR, RS-232, 100 m
Product reference:
14-4002888383424
Supports HDMI resolution up to 3840x2160@60Hz and extends signals up to 100m via HDBaseT. Also has audio pass-through, IR support, RS-232 interface and PoC function.
AV Receiver - LINDY Cat.6 HDMI 4K60 HDBaseT Receiver, Audio, IR, RS-232, 100 m
Product reference:
14-4002888383424
Supports HDMI resolution up to 3840x2160@60Hz and extends signals up to 100m via HDBaseT. Also has audio pass-through, IR support, RS-232 interface and PoC function.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY Cat.6 HDMI 4K60 HDBaseT Receiver, Audio, IR, RS-232, 100 m
Supports HDMI resolutions up to 3840x2160@60Hz and extends signals up to 100m via HDBaseT. Features include audio pass-through, IR support, RS-232 interface, and PoC functionality.
- Supports 4K resolution at 60Hz frequency with a maximum distance of up to 100m via Cat.6 cable.
- There is HDMI audio transmission and separate audio jacks for TosLink and 3.5mm connections.
- IR support and RS-232 serial interface included for various control options.
- Compact metal housing with a wide operating temperature range for reliable performance.
Features | |
|---|---|
| Product type | HDBaseT Receiver |
| Model | 100m Cat.6 HDMI 4K60 |
Specifications | |
| AV interface | HDMI® |
| Interface standard | 2.0 |
| Supported bandwidth | 18Gbps |
| Maximum distance | 70m to 3840x2160@60Hz, 100m to 1920x1080@60Hz |
| Maximum resolution | 3840x2160@60Hz |
| HDCP support | 2.2 |
| EDID transmission | Yes |
| Supported audio | HDMI® Audio Transmission |
| IR support | 20 - 60KHz |
| Serial interface | RS-232 |
| Transmission protocol | HDBaseT |
| Transmission medium | 1 x Cat.6 |
| Chip | VS2310TX-A1 |
| Special features | PoC (Power over cable), ARC support |
Connectors | |

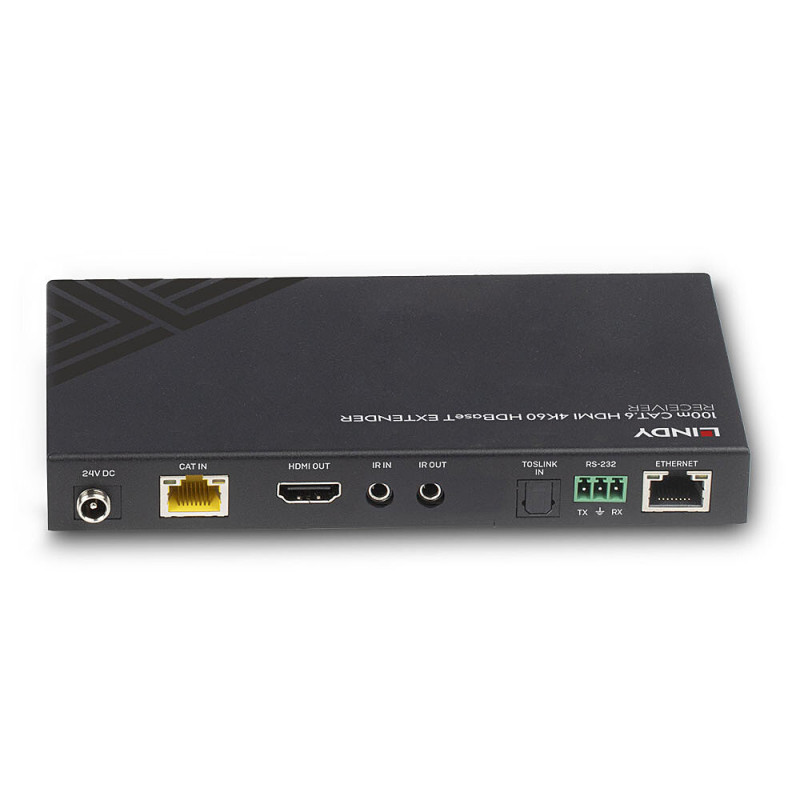

| Receiver input | RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) |
| Receiver output | HDMI® Type A (Female), 3.5mm IR (Female) |
| Two-way sockets | RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) |
| Power connector | 5.5/2.1mm |
Physical properties | |
| Dimensions (WxHxD) | 163 x 90 x 16 mm |
| Housing material | Metal |
| Net weight | 0.38 kg |
| Operating temperature | 0°C - 40°C |
| Storage temperature | -20°C - 60°C |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Package contents | |
| Receiver, IR Transmitter Cable (1.5m), IR Receiver Cable (1.5m), 2 x Mounting Ears 4 x Screws, 3-Pin Terminal Block, Multi-Power Supply, User Manual | |
www.lindy.lt
| Height | 70mm |
| Length | 220mm |
| Weight | 637 grams |
| Width | 130 mm |
